785105 - Gravely Turf Tire 18x6.5-8 with 3-Bolt Hub for 2-Wheel Tractor 2-Wheel Tractor Tire & Hub Kits Parts Diagram

Turf Tire 18x6.5-8 with 3-Bolt Hub for 2-Wheel Tractor

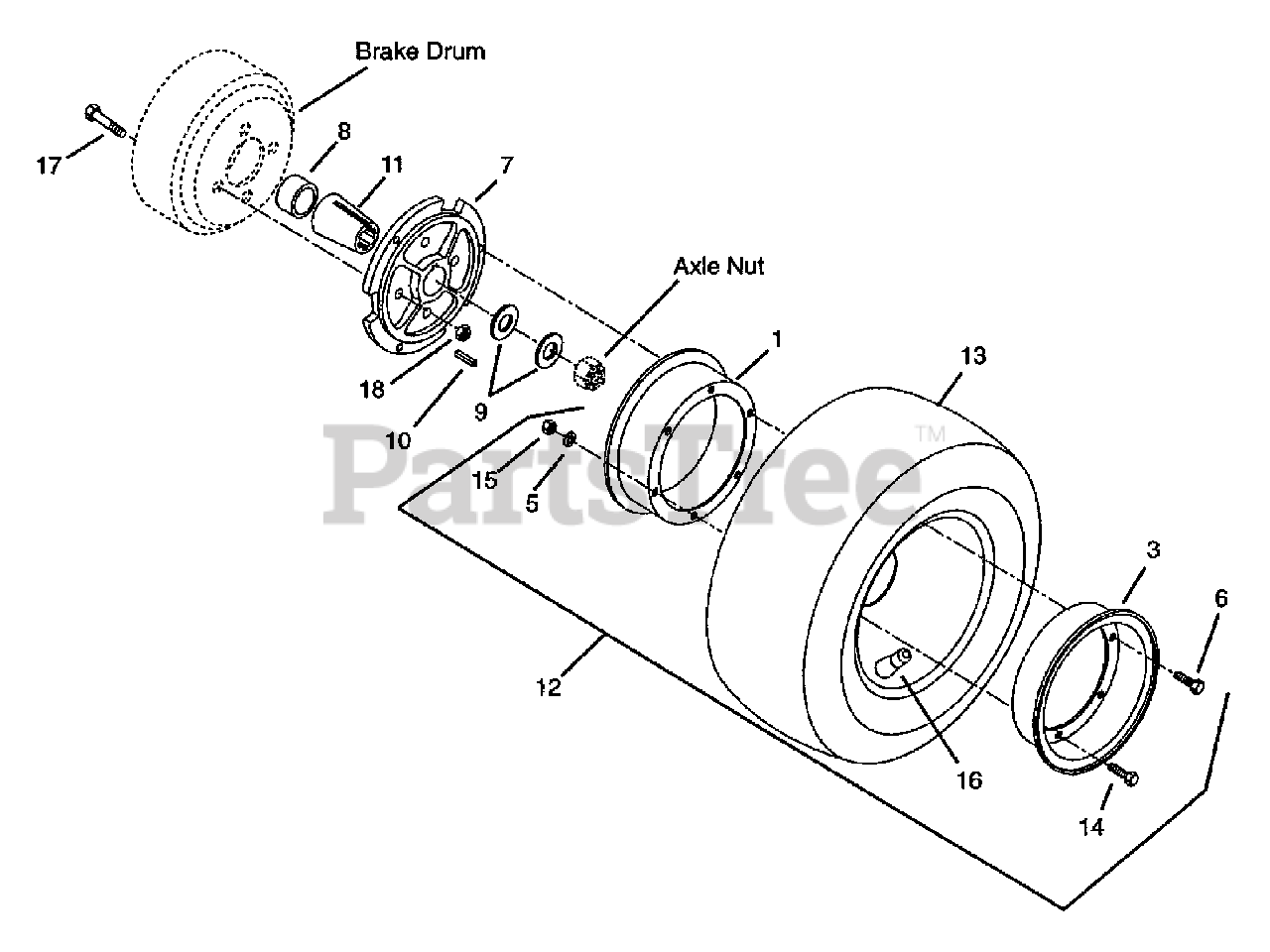

2-Wheel Tractor Tire & Hub Kits Parts Diagram

  • Title

1

Gravely 012674

Wheel 7.71 x 1.25 (104)
(Superseded to 07133000)

Note: (104)

$58.99

$

In Stock, only 2 left!

0

3

Gravely 012673

Wheel-Disc 6.75 x 9.219 (104)
(Superseded to 07132900)

Note: (104)

$68.99

$

In Stock, only 2 left!

0

5

Gravely 06308800

Washer-Locking .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

6

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

7

Gravely 08742753

Hub-Wheel

$258.99

$

Usually ships in 4-12 days

0

8

Gravely 022512

Bushing-Sleeve 1.02 x 1.37 x 1.13
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 06439800

Washer-Flat-Steel .812 x 2.00 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 038230

Insert-Hub
(Superseded to 08742600)

$187.99

$

Usually ships in 4-12 days

0

12

Gravely 019563

Tire/Wheel Assembly 18 x 6.50-8 (105)
(Superseded to 07127300)

Note: (Includes items 1,3,5,6 & 13-16)

$

$

Not available

13

Gravely 019562

Tire 18 x 6.50-8 (105)
(Superseded to 21373000)

Note: (105)

$

$

Not available

14

Gravely 05962600

Screw-Cap-Hex Head .38-24 x .75 Grade 5 (105)

Note: (105)

$

$

Not available

15

Gravely 06522900

Nut-Hex .375-24 Grade 2 (105)
(Superseded to 06500940)

Note: (105)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 07520000

Valve-Stem (105)

Note: (105)

$2.49

$

In Stock, Qty 7

0

17

Gravely 05958900

Bolt-Hex .50-13 x 1.25 (models with steering brakes only)
(Superseded to 05901637)

Note: (models with steering brakes only)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06536300

Nut-Lk-Ctr .50-13 (models with steering brakes only)
(Superseded to 06500827)

Note: (models with steering brakes only)

$3.99

$

In Stock, only 3 left!

0

Gravely 78510500

Tire Kits

$

$

Not available
