785106 - Gravely Remote Air Cleaner Kit for 2-Wheel Tractor Remote Air Cleaner Kit 78510600 Parts Diagram

Remote Air Cleaner Kit for 2-Wheel Tractor

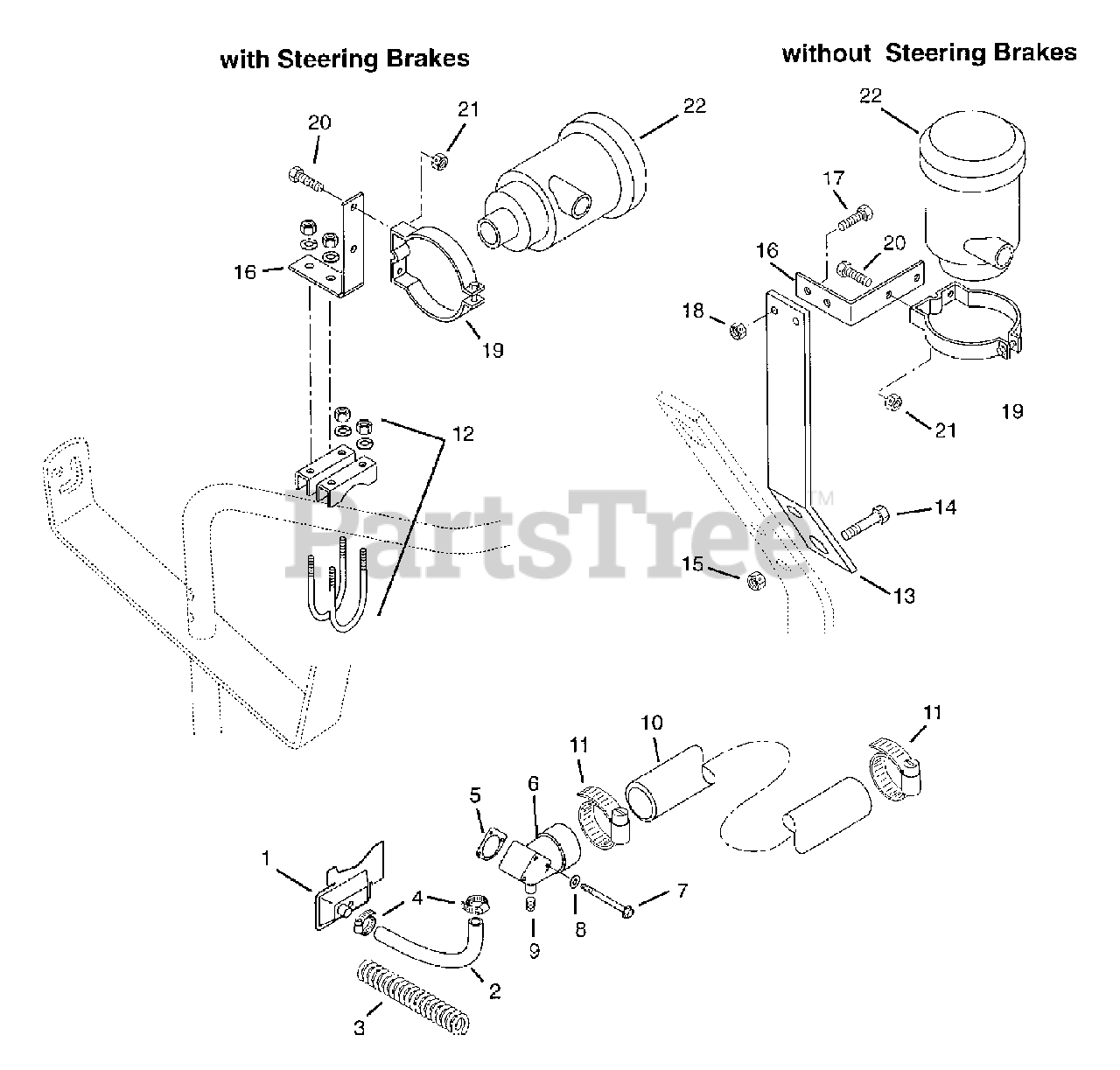

Remote Air Cleaner Kit 78510600 Parts Diagram

  • Title

1

Gravely 021321

Plate, Breather
(Superseded to 08597800)

$

$

Not available

2

Gravely 021232

Hose, Crankcase Vent
(Superseded to 08513800)

$

$

Not available

3

Gravely 021375

Spring-Compression .55 x .480 x 6.0
(Superseded to 08329400)

$

$

Not available

4

Gravely 021247

Clamp, .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 021324

Gasket, Air Cleaner Elbow
(Superseded to 08566300)

$

$

Not available

6

Gravely 024354

Elbow, Air Cleaner

$

$

Not available

7

Gravely 06116600

Screw-Machine 8-32 x 2.75 Hex Washer Head

$

$

Not available

8

Gravely 06442700

Washer-Flat-Steel .219 x .50 x.049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 103877

Plug, Pipe .12 Square Head UNFIN STL
(Superseded to 07023700)

$

$

Not available

10

Gravely 021233

Hose, Air Cleaner
(Superseded to 08514700)

$

$

Not available

11

Gravely 021245

Clamp, 2.25 Diameter Hose
(Superseded to 06923600)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 014728

Clamp, Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

13

Gravely 042051

Bracket
(Superseded to 08548700)

$

$

Not available

14

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 08569600

Bracket, Air Cleaner Mount

$

$

Not available

17

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09067900

Bracket, Air Cleaner

$

$

Not available

20

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

21

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09068500

Air Cleaner

$84.99

$

Usually ships in 4-12 days

0

23

Gravely 21512500

Element-Air Cleaner

$

$

Not available

Gravely 78510600

Remote Air Cleaner Kit

$

$

Not available
