785117 - Gravely Car Pusher Kit Car Pusher Parts Diagram

Car Pusher Kit

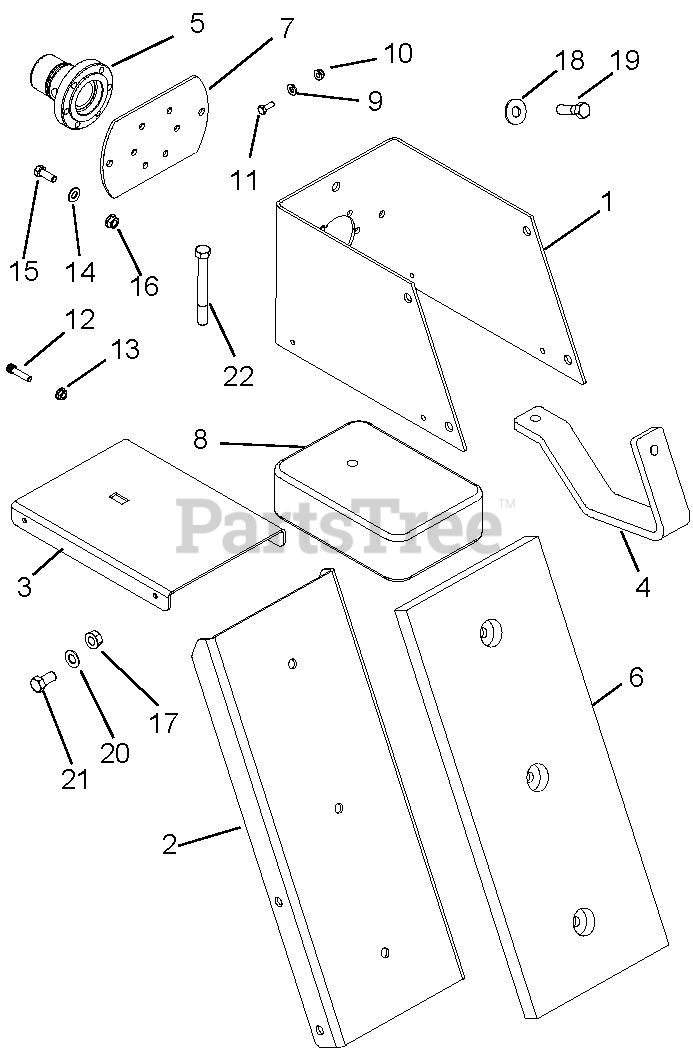

Car Pusher Parts Diagram

  • Title

1

Gravely 03399453

FRAME, RAPID GRAVELY PUSHER

$

$

Currently unavailable

2

Gravely 03399553

BUMPER, RAPID GRAVELY PUSHER

$

$

Not available

3

Gravely 03399653

TRAY, RAPID GRAVELY PUSHER

$

$

Not available

4

Gravely 03294753

SKID SHOE, CAR PUSHER

$

$

Currently unavailable

5

Gravely 08689300

FLANGE, ADAPTER

$

$

Currently unavailable

6

Gravely 03294600

RUBBER BUMPER, CAR PUSHER

$

$

Not available

7

Gravely 03399953

PLATE, PUSHER MOUNT BACKUP

$

$

Not available

8

Gravely 03696751

WEIGHT, RAPID PUSHER

$

$

Currently unavailable

9

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

10

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

11

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

12

Gravely 05901320

SHCS .312-18 X 1.25 GR8 YWZC

$

$

Not available

13

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06432000

SHIM-BALL-BRG 1.50X2.125X.015

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

17

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

19

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

20

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

21

Gravely 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

22

Gravely 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, Qty 11

0
