78512 - Toro 52" Turbo Force Mower Finishing Kit for Z400 and Z500 Twin Soft Bagger FINISHING KIT ASSEMBLY Parts Diagram

52" Turbo Force Mower Finishing Kit for Z400 and Z500 Twin Soft Bagger

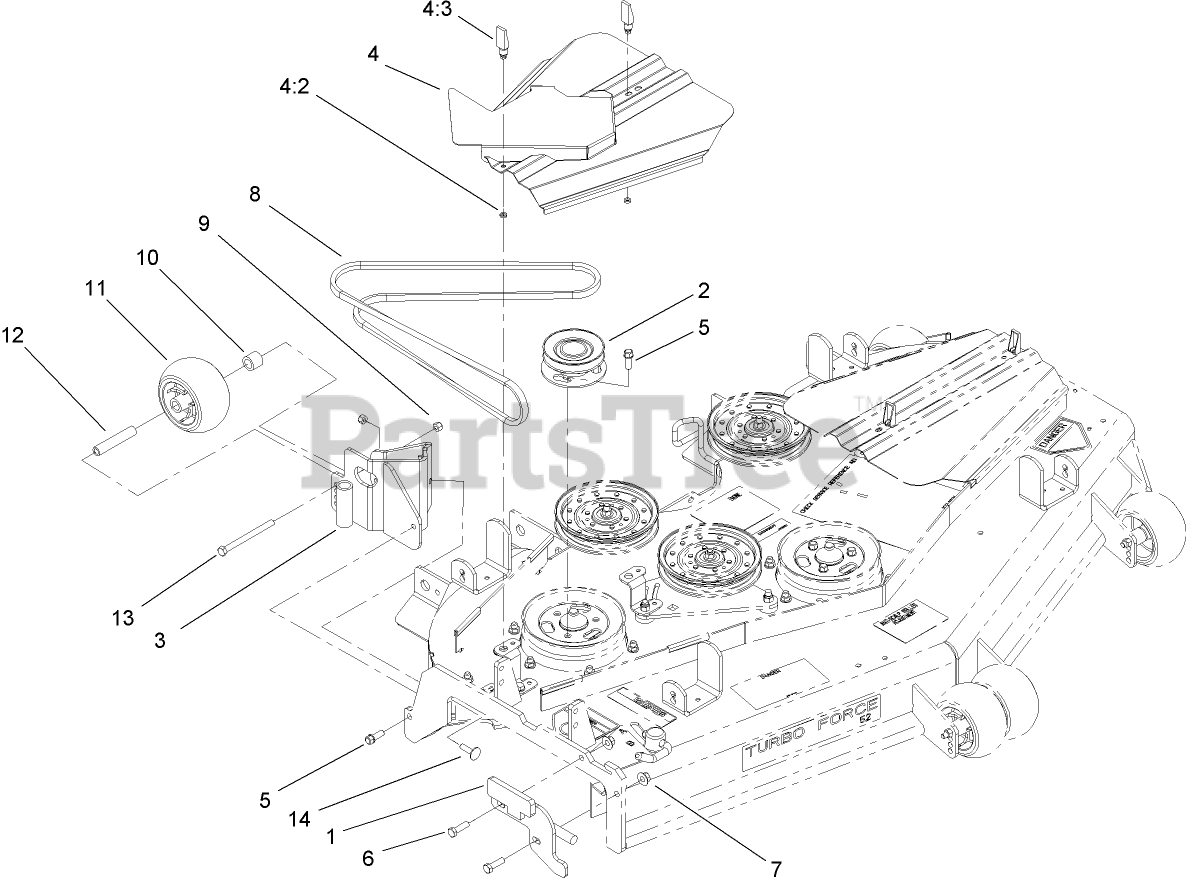

FINISHING KIT ASSEMBLY Parts Diagram

  • Title

1

Toro 106-3448-03

FRONT HINGE ASM

$

$

Not available

2

Toro 106-3395

PULLEY ASM

$321.99

$

Usually ships in 3-6 days

0

3

Toro 107-3400-01

REAR HINGE ASM

$

$

Not available

4

Toro 108-2775

BELT COVER ASM

$

$

Not available

4:2

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

4:3

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 18

0

5

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

6

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 7

0

8

Toro 106-3038

Belt-V

$72.99

$

Usually ships in 3-6 days

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

11

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

12

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

13

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
