78526 - Toro 52" Blower and Drive Kit for Grandstand Mower (SN: 416500000 - 999999999) Blower Drive Assembly Parts Diagram

52" Blower and Drive Kit for Grandstand Mower

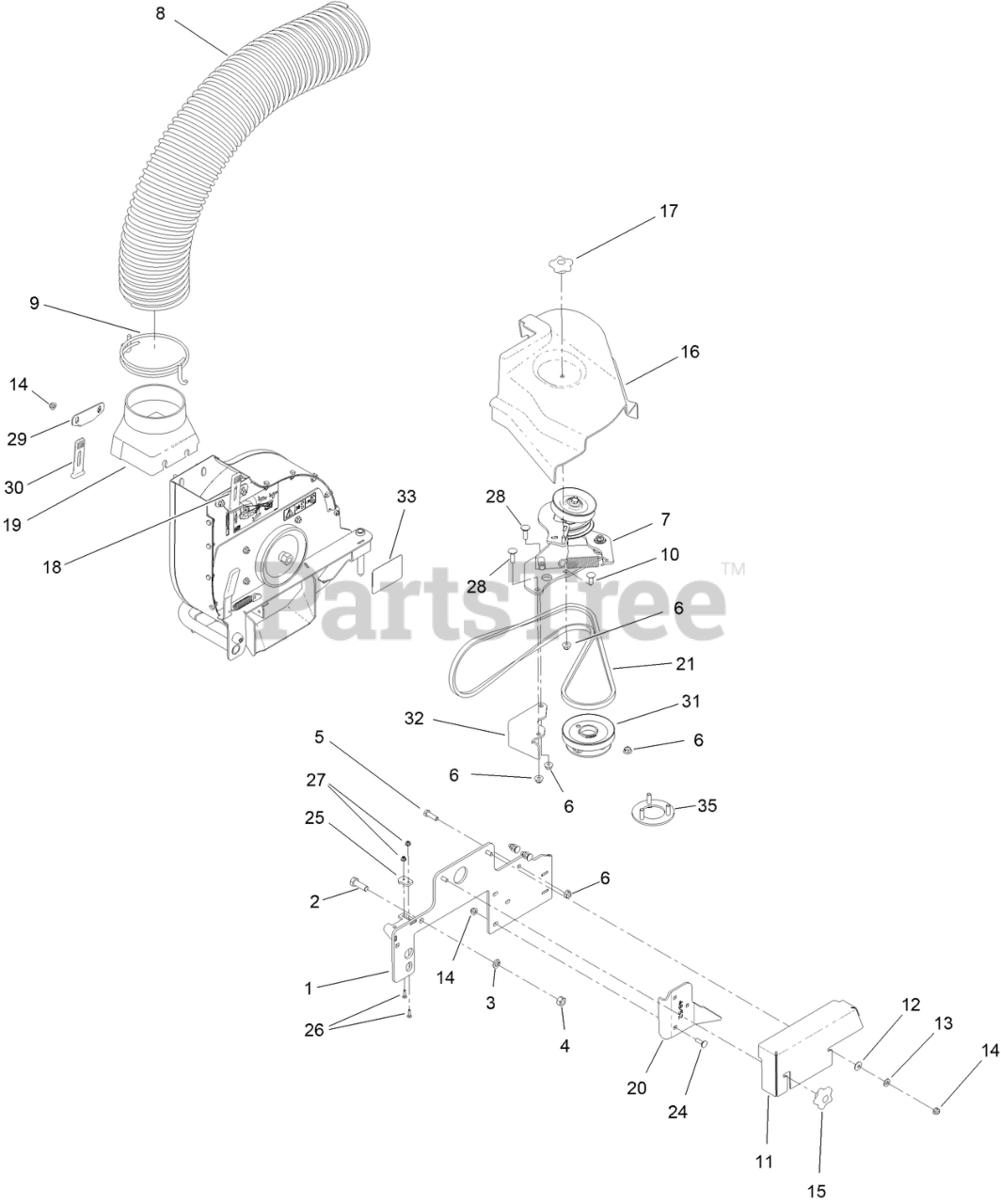

Blower Drive Assembly Parts Diagram

  • Title

1

Toro 139-1545-03

BLOWER DECK MOUNT ASM

$382.99

$

Usually ships in 3-6 days

0

2

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

3

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

4

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 136-0575

IDLER ASM

$793.99

$

Usually ships in 3-6 days

0

8

Toro 138-5879

HOSE-FLEXIBLE

$115.99

$

In Stock, only 1 left!

0

9

Toro 139-1466

CLAMP-HOSE, BAGGER

$135.99

$

Usually ships in 3-6 days

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 133-8735-03

GUARD-BELT, BLOWER

$38.99

$

Usually ships in 3-6 days

0

12

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 14

0

13

Toro 62-1230

WASHER-RUBBER

$6.99

$

In Stock, Qty 7

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 19

0

16

Toro 133-8729

COVER-BELT

$212.99

$

Usually ships in 3-6 days

0

17

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

18

Toro 136-0570

BLOWER ASM

$2742.99

$

Usually ships in 3-6 days

0

19

Toro 137-6425

TRANSITION-BLOWER

$220.99

$

Usually ships in 3-6 days

0

20

Toro 136-4081-03

BAFFLE

$68.99

$

Usually ships in 3-6 days

0

21

Toro 139-7872

BELT-V

$62.99

$

Usually ships in 3-6 days

0

24

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 2 left!

0

25

Toro 136-4118

PLATE-LATCH

$22.99

$

In Stock, only 2 left!

0

26

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

27

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

29

Toro 138-5887-03

PLATE

$27.99

$

Usually ships in 3-6 days

0

30

Toro 131-8402

STRAP-HOLD DOWN

$5.49

$

In Stock, only 4 left!

0

31

Toro 112-8670-03

PULLEY

$188.99

$

In Stock, only 2 left!

0

32

Toro 140-5445-01

BAFFLE-BAGGER, 52"

$41.99

$

Usually ships in 3-6 days

0

33

Toro 138-8866

DECAL-ROUTING, BELT

$16.99

$

Usually ships in 3-6 days

0

35

Toro 140-4906

PULLEY MOUNT ASM

$46.99

$

Usually ships in 3-6 days

0
