78527 - Toro 60" Blower and Drive Kit for Grandstand Mower (SN: 416400000 - 999999999) Blower Assembly-136-0570 Parts Diagram

60" Blower and Drive Kit for Grandstand Mower

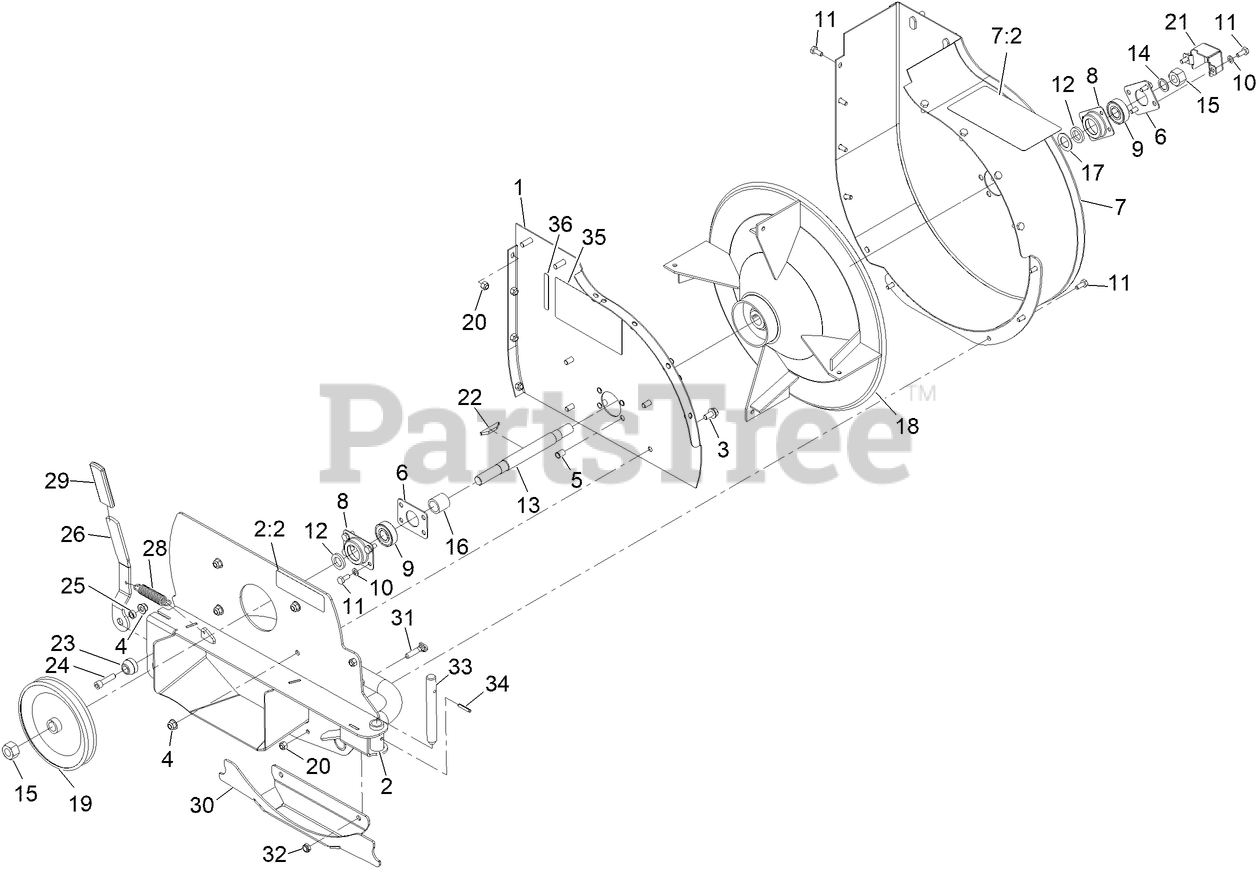

Blower Assembly-136-0570 Parts Diagram

  • Title

1

Toro 133-8665-03

MOUNTING PLATE ASM

$283.99

$

Usually ships in 3-6 days

0

2

Toro 146-4577

BLOWER PIVOT ASM

$539.99

$

Usually ships in 0 days

0

2:2

Toro 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

3

Toro 3234-14

SCREW-HHF

$2.49

$

In Stock, Qty 15

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 32117-2

NUT-CLINCH

$4.49

$

Usually ships in 3-6 days

0

6

Toro 63-9700-03

PLATE-COVER

$22.99

$

In Stock, only 3 left!

0

7

Toro 136-0578

BLOWER HOUSING OUTER ASM

$383.99

$

Usually ships in 3-6 days

0

7:2

Toro 136-4087

DECAL-WARNING, BLOWER

$30.99

$

Usually ships in 3-6 days

0

8

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 2 left!

0

9

Toro 38-7820

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 63-9710

SPACER-BEARING

$14.99

$

In Stock, only 1 left!

0

13

Toro 105-5893

SHAFT-BLOWER

$147.99

$

Usually ships in 3-6 days

0

14

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 15

0

15

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

16

Toro 7989

DISCONTINUED

$15.99

$

In Stock, only 2 left!

0

17

Toro 1535

WASHER-THRUST

$11.99

$

In Stock, only 2 left!

0

18

Toro 56-4780-03

IMPELLER ASM

$1132.99

$

Usually ships in 3-6 days

0

19

Toro 92-0874

PULLEY-TRANSAXLE

$102.99

$

Usually ships in 3-6 days

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 106-3076-03

COVER-SHAFT

$45.99

$

Usually ships in 3-6 days

0

22

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

23

Toro 136-4135

PIN-GUIDE

$19.99

$

Usually ships in 3-6 days

0

24

Toro 3274-18

SCREW-HSH

$9.99

$

In Stock, Qty 5

0

25

Toro 99-2018

SPACER-ARM, IDLER

$16.99

$

Usually ships in 3-6 days

0

26

Toro 136-4116

HANDLE

$38.99

$

In Stock, only 3 left!

0

28

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

29

Toro 47-1970

GRIP

$17.99

$

Usually ships in 3-6 days

0

30

Toro 136-4097-03

PLATE-SKID

$67.99

$

Usually ships in 3-6 days

0

31

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 2 left!

0

32

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

33

Toro 146-4187

PIN-BLOWER PIVOT

$27.99

$

Usually ships in 0 days

0

34

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

35

Toro 146-4438

DECAL-BLOWER BELT ROUTING

$15.99

$

Usually ships in 0 days

0

36

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
