78560 - Toro Triple Bagger for Z Master Pro 7500-D Series Mower (SN: 400000000 - 999999999) Bagger Top and Mounting Assembly Parts Diagram

Triple Bagger for Z Master Pro 7500-D Series Mower

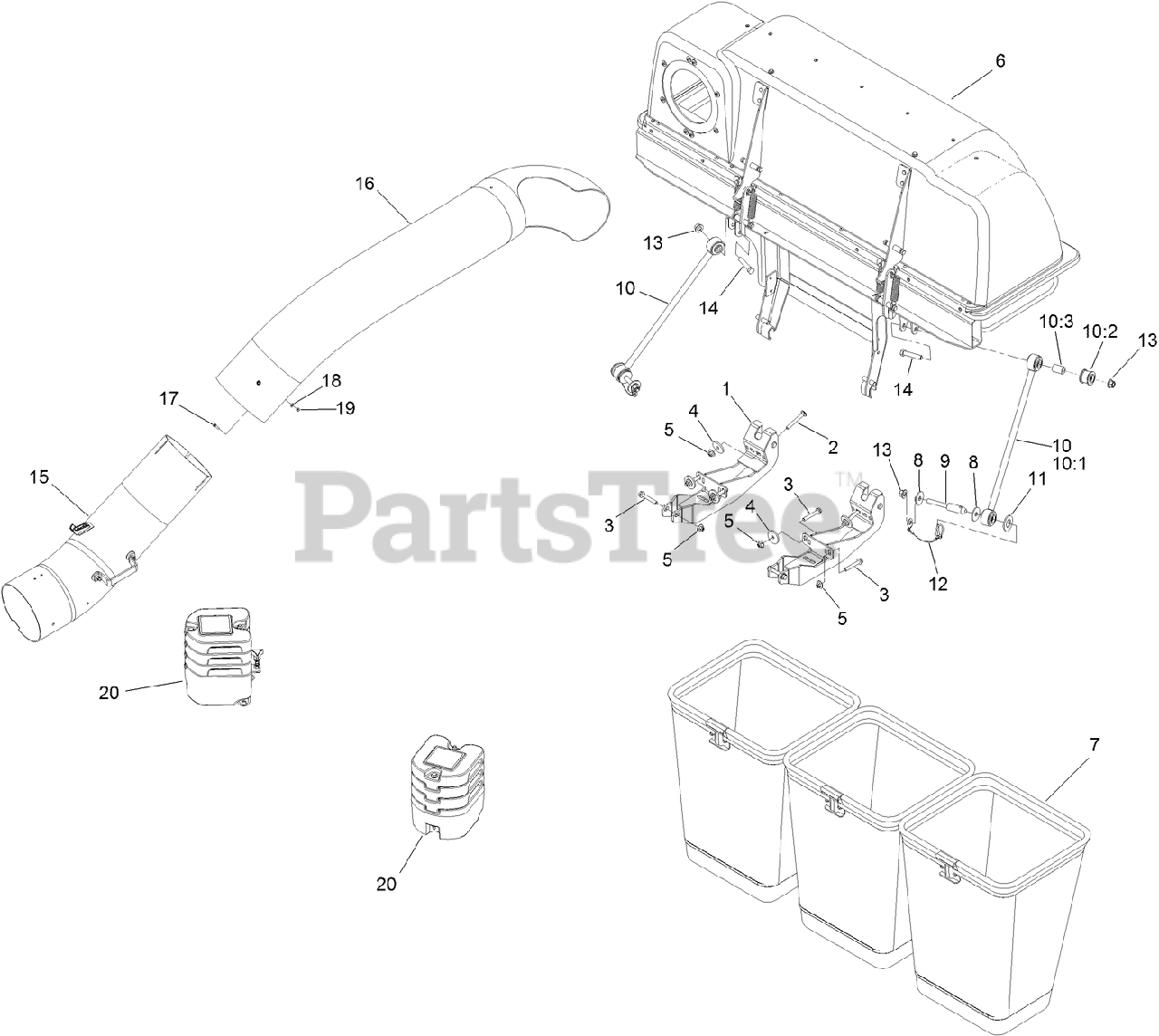

Bagger Top and Mounting Assembly Parts Diagram

  • Title

1

Toro 135-2023-03

MOUNT-BAGGER, LOWER

$212.99

$

Usually ships in 3-6 days

0

2

Toro 3231-10

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

3

Toro 3234-39

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

4

Toro 115-1485

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

5

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 126-8693

3-BAG HOOD ASM

$

$

Currently unavailable

7

Toro 116-0754

BAG AND FRAME ASM

$185.99

$

In Stock, only 2 left!

0

8

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 19

0

9

Toro 126-9293

PIN-BAGGER BRKT

$33.99

$

Usually ships in 3-6 days

0

10

Toro 126-9557

SUPPORT ROD ASM

$70.99

$

Usually ships in 3-6 days

0

10:1

Toro 109-5014-03

ROD-PANHARD

$

$

Currently unavailable

10:2

Toro 135-2466

BUSHING-RUBBER

$7.99

$

Usually ships in 3-6 days

0

10:3

Toro 109-5010

SPACER

$6.49

$

In Stock, Qty 20+

0

11

Toro 3256-62

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 126-9292

PIN-MOUNT, BAGGER

$17.99

$

Usually ships in 3-6 days

0

13

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

15

Toro 109-1973

LOWER TUBE ASM

$313.99

$

Usually ships in 3-6 days

0

16

Toro 126-8679

TUBE-UPPER

$313.99

$

Usually ships in 3-6 days

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

18

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

CASTER WEIGHT ASM

Note: Not serviced separately

$

$

Not available
