78563 - Toro 60" E-Z Vac Triple Bagging System (SN: 411300000 - 999999999) Bag and Tube Assembly Parts Diagram

60" E-Z Vac Triple Bagging System

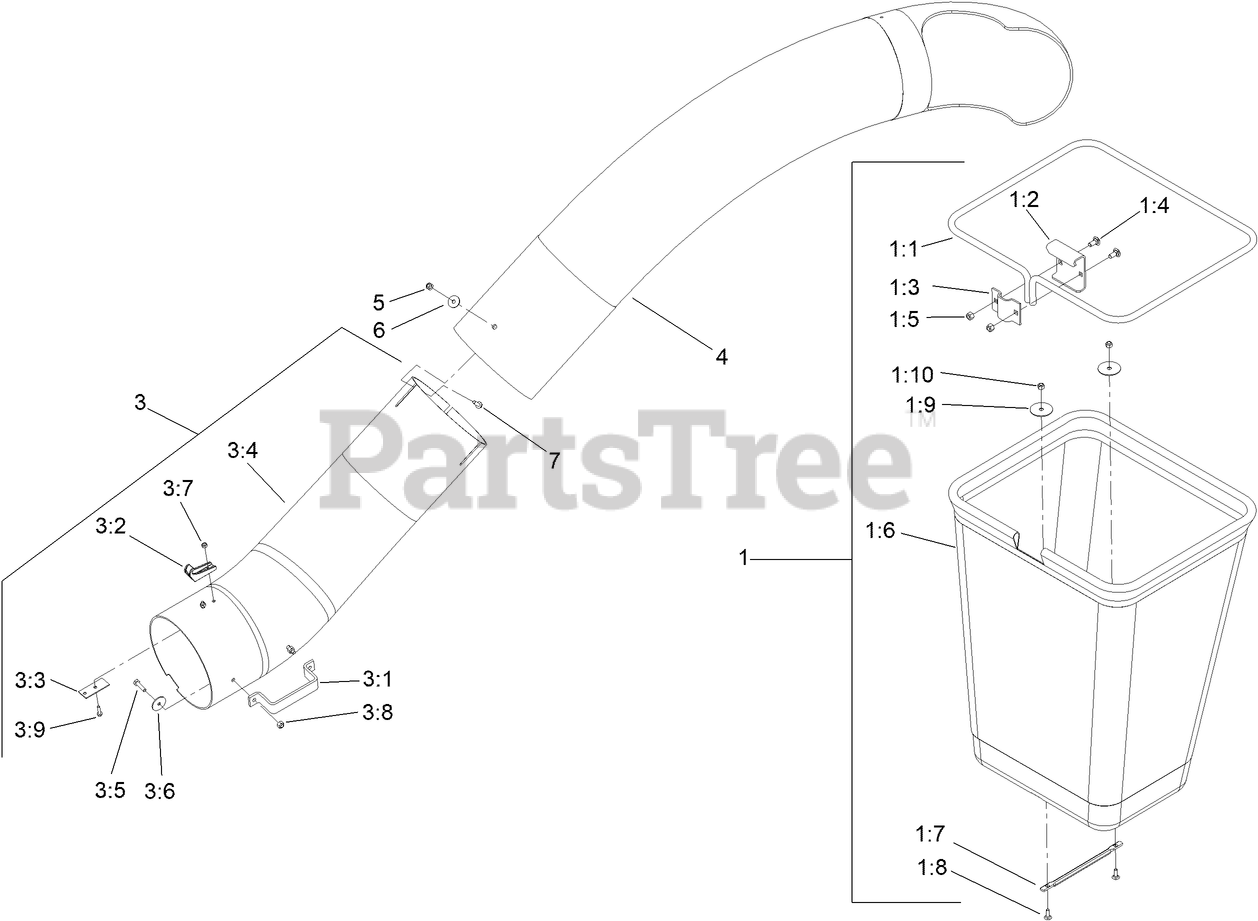

Bag and Tube Assembly Parts Diagram

  • Title

1

Toro 116-0754

BAG AND FRAME ASM

$202.99

$

In Stock, only 2 left!

0

1:1

Toro 1-653529-03

FRAME-BAG

$127.99

$

Usually ships in 3-6 days

0

1:2

Toro 114973-03

HANGER-BAG

$27.99

$

In Stock, only 2 left!

0

1:3

Toro 114974-03

CLAMP

$15.99

$

In Stock, only 2 left!

0

1:4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

1:5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:6

Toro 116-0757

BAG

$109.99

$

In Stock, Qty 18

0

1:7

Toro 1-653566

HANDLE-BAG

$13.99

$

In Stock, only 2 left!

0

1:8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

1:9

Toro 1-653036

WASHER

$5.49

$

Usually ships in 3-6 days

0

1:10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 109-1973

LOWER TUBE ASM

$341.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-353005-03

HANDLE

$17.99

$

In Stock, only 1 left!

0

3:2

Toro 103-2897

LATCH-CATCH

Note: Kit No. 103-4143 - Contains catch, rubber latch, and mounting hardware

$8.99

$

In Stock, Qty 5

0

3:3

Toro 103-3079

PLATE-BACKING

$8.99

$

Usually ships in 3-6 days

0

3:4

Toro 109-1974

TUBE-LOWER

$237.99

$

Usually ships in 3-6 days

0

3:5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 8

0

3:6

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 8

0

3:7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3:8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3:9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

4

Toro 109-3525

TUBE-UPPER

$546.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

7

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0
