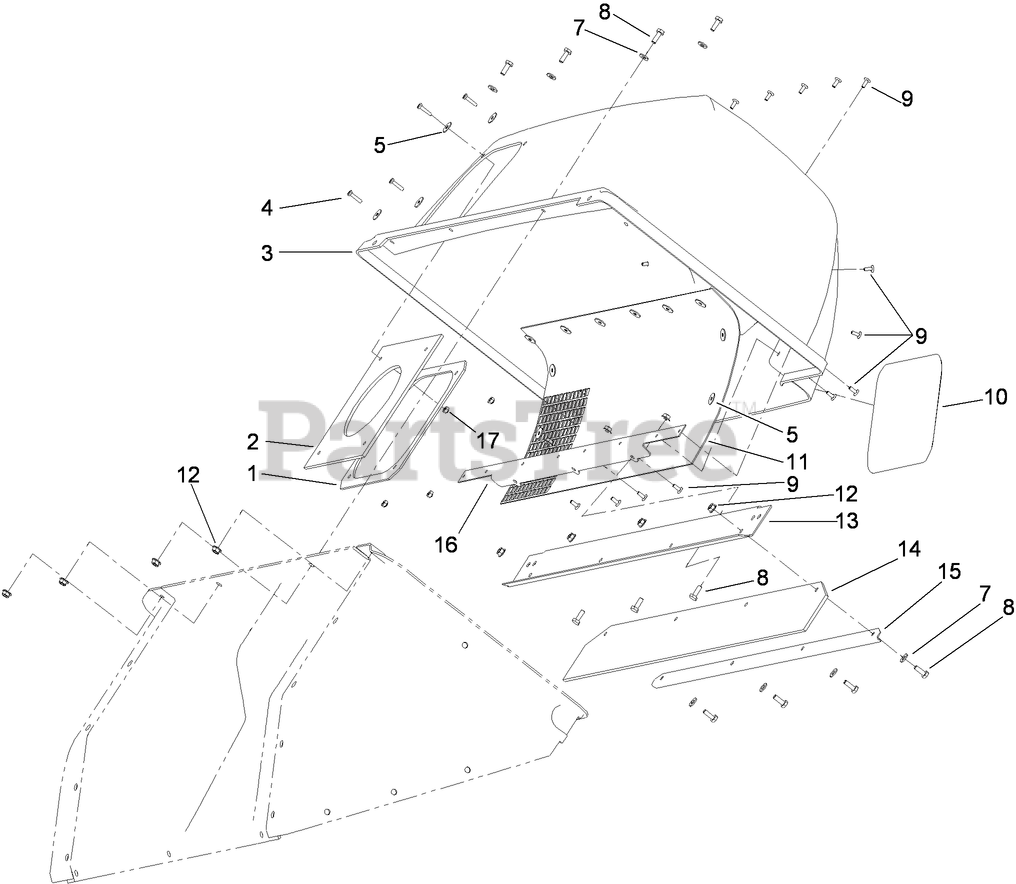

78566 - Toro 48" & 52" E-Z Vac DFS Collection System (SN: 411400000 - 999999999) Hood and Frame Assembly Parts Diagram

48" & 52" E-Z Vac DFS Collection System

Hood and Frame Assembly Parts Diagram

  • Title

1

Toro 1-653598-03

CLAMP-SEAL

$85.99

$

Usually ships in 3-6 days

0

2

Toro 1-653561

SEAL-CHUTE

$22.99

$

In Stock, only 4 left!

0

3

Toro 114-8249

DFS HOOD ASM

$702.99

$

Usually ships in 3-6 days

0

4

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

5

Toro 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

10

Toro 99-4693

DECAL

$26.99

$

Usually ships in 3-6 days

0

11

Toro 114967

SCREEN-BAGGER

$42.99

$

In Stock, only 3 left!

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 11

0

13

Toro 103-4412-03

PLATE-REAR

$70.99

$

Usually ships in 3-6 days

0

14

Toro 103-4832

SEAL-DOOR

$27.99

$

Usually ships in 3-6 days

0

15

Toro 103-4834-03

STRAP-HOLD DOWN

$33.99

$

Usually ships in 3-6 days

0

16

Toro 103-5101-03

SUPPORT-SCREEN

$42.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0
