78566 - Toro 48" & 52" E-Z Vac DFS Collection System (SN: 411400000 - 999999999) Tube and Weight Assembly Parts Diagram

48" & 52" E-Z Vac DFS Collection System

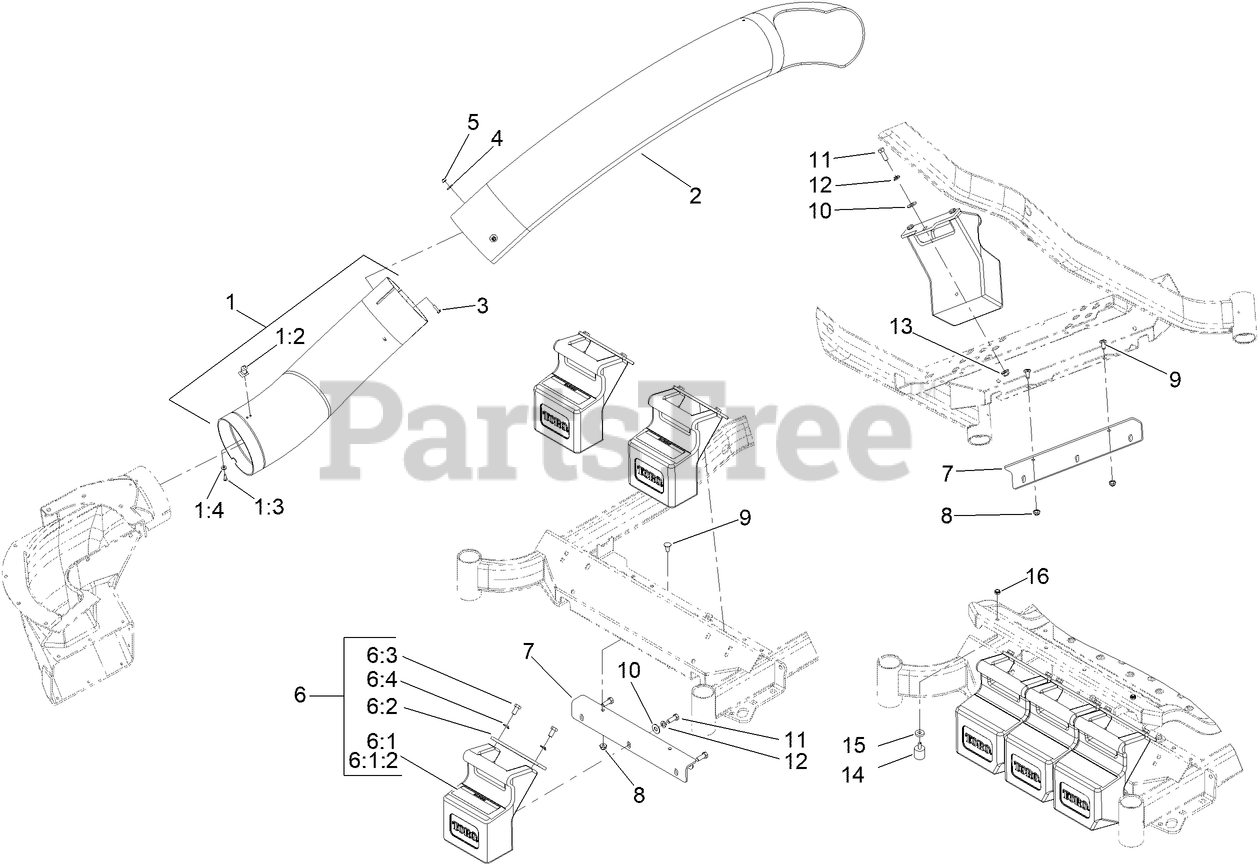

Tube and Weight Assembly Parts Diagram

  • Title

1

Toro 109-2043

LOWER TUBE ASM

$290.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$15.99

$

Usually ships in 3-6 days

0

1:3

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1:4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 109-2036

TUBE-UPPER

$313.99

$

Usually ships in 3-6 days

0

3

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 1 left!

0

4

Toro 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

6

Toro 147-2356

WEIGHT ASM

$

$

Currently unavailable

6:1

Toro 147-2357

WEIGHT W/DECAL ASM

$601.99

$

Usually ships in 3-6 days

0

6:1:2

Toro 136-4053

DECAL-WARNING, COUNTERWEIGHT

$20.99

$

Usually ships in 3-6 days

0

6:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$34.99

$

In Stock, only 1 left!

0

6:3

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

6:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

7

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$51.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 1 left!

0

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-2442

BUMPER-RUBBER

$46.99

$

Usually ships in 3-6 days

0

15

Toro 104-7658

SPACER

$1.49

$

In Stock, only 1 left!

0

16

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
