78581 - Toro ISO Mount Seat Kit for Z Master Mower ISO Mount Seat Kit Parts Diagram

ISO Mount Seat Kit for Z Master Mower

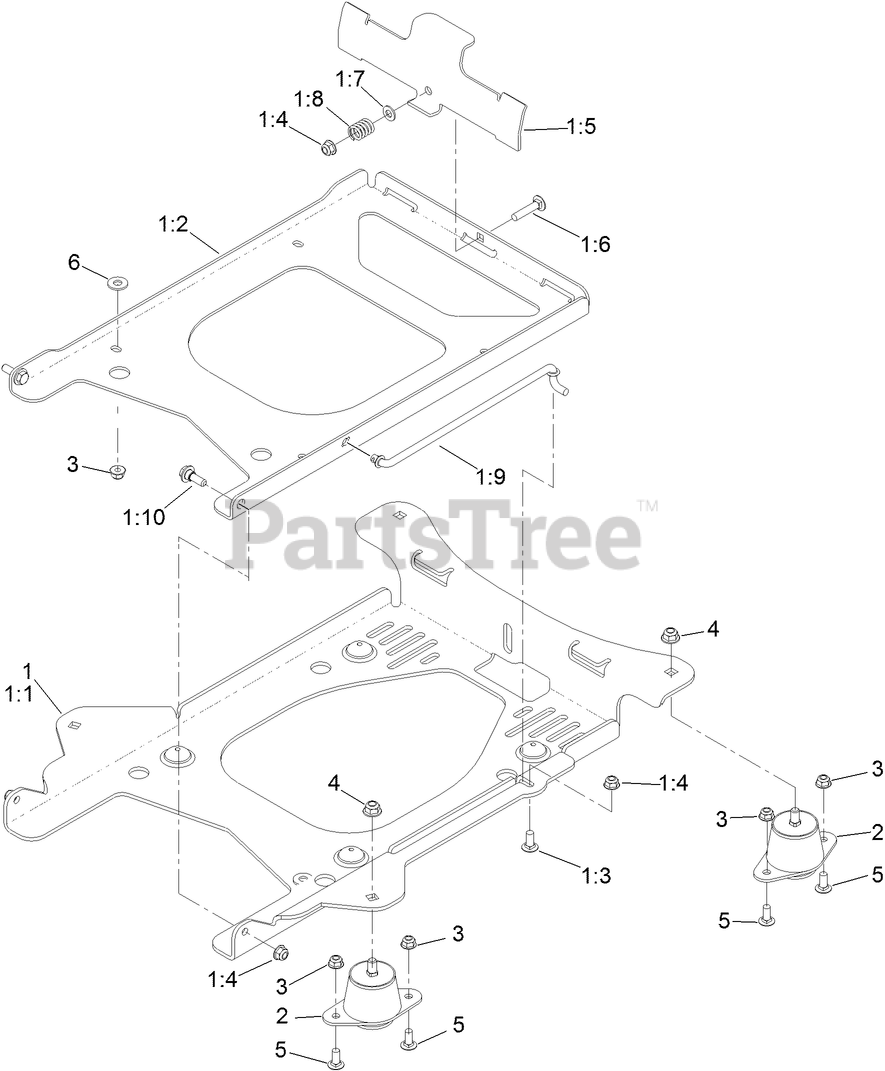

ISO Mount Seat Kit Parts Diagram

  • Title

1

Toro 116-0958

SEAT MOUNT TILT FRAME ASM

$

$

Currently unavailable

1:1

Toro 116-3860-03

PLATE-TILT, SEAT SUPPORT

$207.99

$

Usually ships in 3-6 days

0

1:2

Toro 116-3859-03

PLATE-FRAME, SEAT

$146.99

$

Usually ships in 3-6 days

0

1:3

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

1:4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

1:5

Toro 109-9881-03

PLATE-LATCH, SEAT

$22.99

$

Usually ships in 3-6 days

0

1:6

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

1:7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

1:8

Toro 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

1:9

Toro 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

1:10

Toro 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
