78593 - Toro Blower Kit for GrandStand Multi Force Mower (SN: 400000000 - 402859999) NOZZLE ASSEMBLY Parts Diagram

Blower Kit for GrandStand Multi Force Mower

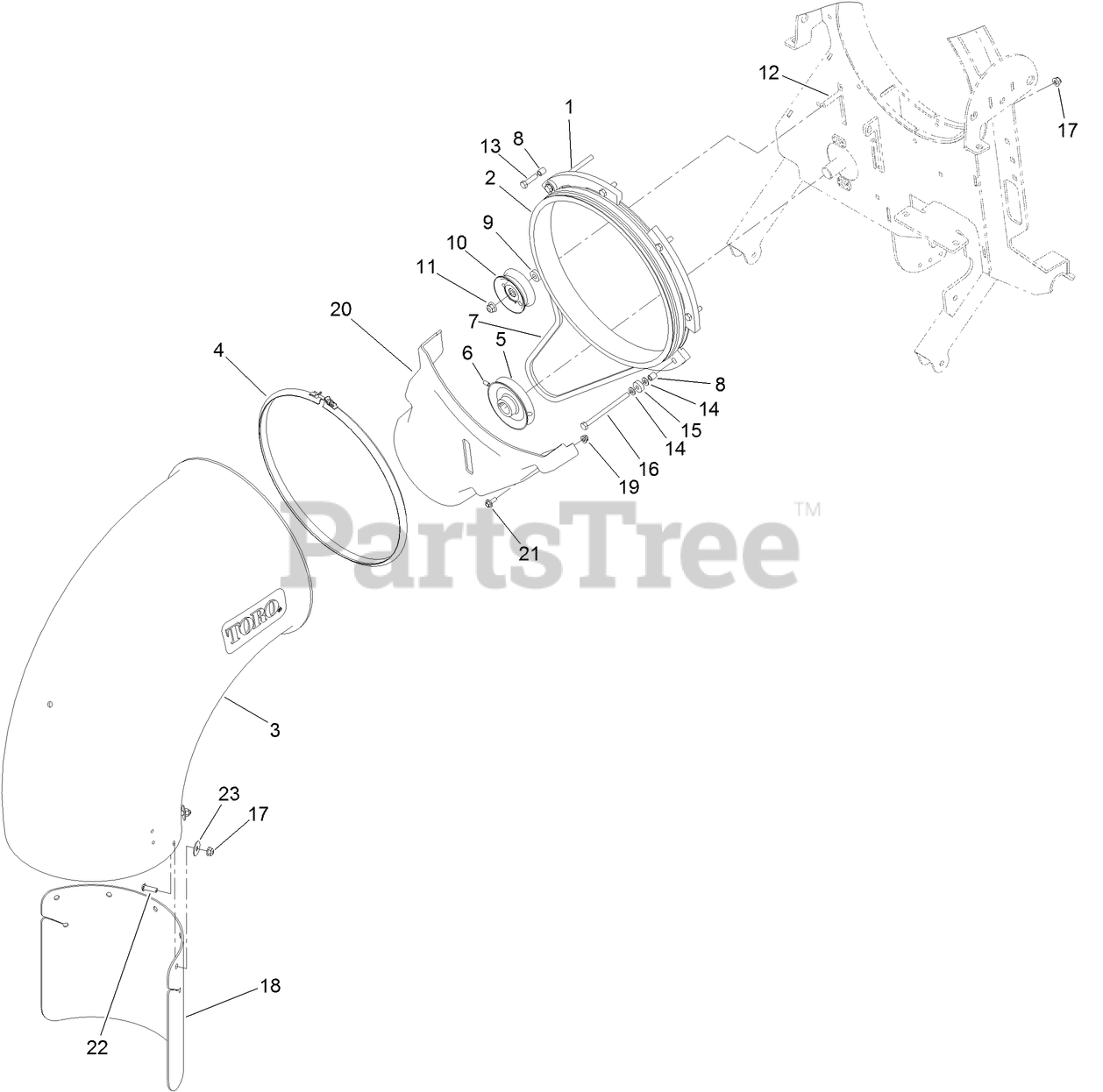

NOZZLE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-9868

GUIDE-NOZZLE

$59.99

$

Usually ships in 3-6 days

0

2

Toro 112-1874

PULLEY-NOZZLE

$703.99

$

Usually ships in 3-6 days

0

3

Toro 137-6374

NOZZLE

$263.99

$

Usually ships in 3-6 days

0

4

Toro 112-6899

CLAMP-NOZZLE

$103.99

$

Usually ships in 3-6 days

0

5

Toro 138-5801

PULLEY

$67.99

$

Usually ships in 3-6 days

0

6

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

7

Toro 137-6384

BELT-V

$55.99

$

Usually ships in 3-6 days

0

8

Toro 93-6859

SPACER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 5-0652

SPACER

$8.49

$

In Stock, Qty 5

0

10

Toro 130-8362

PULLEY-IDLER, FLAT

$39.99

$

In Stock, Qty 7

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-9971

BOLT-CARRIAGE

$4.49

$

Usually ships in 3-6 days

0

13

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

14

Toro 3256-74

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 251-259

BEARING-BALL

$17.99

$

In Stock, only 1 left!

0

16

Toro 322-38

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 137-6379

EXTENSION-NOZZLE

$40.99

$

Usually ships in 3-6 days

0

19

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

20

Toro 137-6389

COVER-BELT

$175.99

$

Usually ships in 3-6 days

0

21

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

22

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

23

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0
