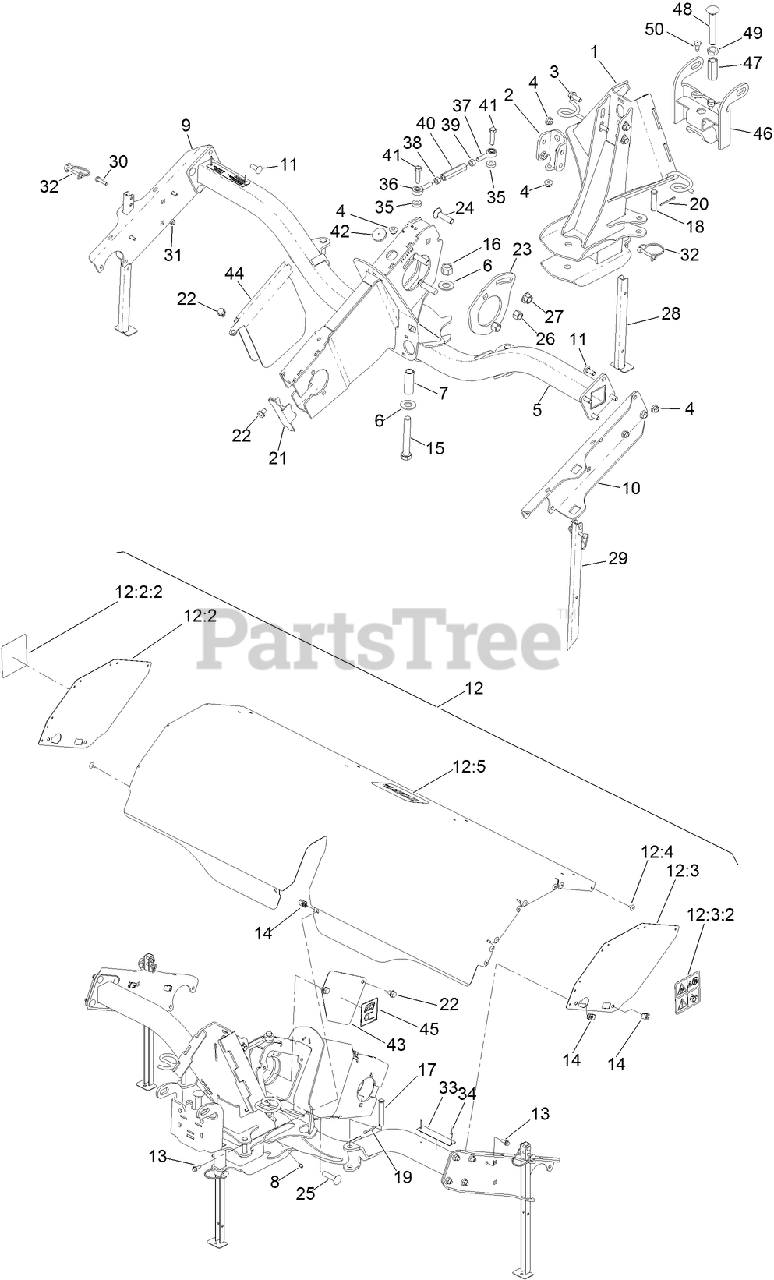

78596 - Toro Broom for GrandStand Multi Force Mower (SN: 400000000 - 999999999) Frame Assembly Parts Diagram

Broom for GrandStand Multi Force Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 136-7370-03

PUSH FRAME ASM

$819.99

$

Usually ships in 3-6 days

0

2

Toro 136-7364-03

CHANNEL-COUPLER

$46.99

$

Usually ships in 3-6 days

0

3

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 137-0700-03

BROOM DRIVE ASM

$1166.99

$

Usually ships in 3-6 days

0

6

Toro 106-0776

WASHER-PINION

$4.49

$

Usually ships in 3-6 days

0

7

Toro 136-7365

SPACER

$24.99

$

Usually ships in 3-6 days

0

8

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

9

Toro 136-1267-03

See Supercession: 137-6403-03
(Superseded to 137-6403-03)

$87.99

$

Usually ships in 3-6 days

0

10

Toro 136-1268-03

See Supercession: 137-6402-03
(Superseded to 137-6402-03)

$87.99

$

Usually ships in 3-6 days

0

11

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 133-5373

BROOM SHROUD ASM

$513.99

$

Usually ships in 3-6 days

0

12:2

Toro 136-7446

LH END CAP ASM

$58.99

$

Usually ships in 3-6 days

0

12:2:2

Toro 116-8140

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

12:3

Toro 136-7447

RH END CAP ASM

$58.99

$

Usually ships in 3-6 days

0

12:3:2

Toro 116-8140

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

12:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

12:5

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0

13

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 327-29

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

16

Toro 127-3958

NUT-LOCK, NI

$

$

Currently unavailable

17

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

18

Toro 283-5

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

19

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

20

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

21

Toro 136-1297-03

PLATE

$25.99

$

Usually ships in 3-6 days

0

22

Toro 32104-98

SCREW-HWH,THD ROLL

$3.49

$

Usually ships in 3-6 days

0

23

Toro 136-1298-03

PLATE-MOTOR

$31.99

$

Usually ships in 3-6 days

0

24

Toro 3233-4

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

25

Toro 9002719

SCREW-CARR

$6.99

$

Usually ships in 3-6 days

0

26

Toro 119-8969

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

27

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

28

Toro 136-7372-03

See Supercession: 137-3982-03
(Superseded to 137-3982-03)

$44.99

$

Usually ships in 3-6 days

0

29

Toro 136-7366-03

See Supercession: 137-3984-03
(Superseded to 137-3984-03)

$44.99

$

Usually ships in 3-6 days

0

30

Toro 321-7

SCREW-HH

$5.99

$

In Stock, Qty 5

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 100-1663

PIN-HITCH

$17.99

$

In Stock, only 4 left!

0

33

Toro 136-7420

PLATE-MODEL

$

$

Currently unavailable

34

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

35

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

36

Toro 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

37

Toro 125-4389

BEARING-END, ROD

$18.99

$

Usually ships in 3-6 days

0

38

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

39

Toro 3219-20

NUT-HEX, LH

$3.49

$

Usually ships in 3-6 days

0

40

Toro 136-7390

TURNBUCKLE

$82.99

$

Usually ships in 3-6 days

0

41

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 136-5444

GROMMET-PLUG

$5.49

$

Usually ships in 3-6 days

0

43

Toro 136-7371-03

PLATE-COVER

$

$

Currently unavailable

44

Toro 136-7373-03

BRACKET-COVER

$

$

Currently unavailable

45

Toro 136-4146

DECAL-CHAIN ADJUST

$16.99

$

Usually ships in 3-6 days

0

46

Toro 136-8312-01

LOCK BRACKET ASM

$179.99

$

Usually ships in 3-6 days

0

47

Toro 136-8392

HEX-THREADED

$37.99

$

Usually ships in 3-6 days

0

48

Toro 112-8046

BOLT-CARRIAGE

$10.99

$

Usually ships in 3-6 days

0

49

Toro 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

50

Toro 87-8460

BUMPER-RUBBER

$2.99

$

Usually ships in 3-6 days

0
