78596 - Toro Broom for GrandStand Multi Force Mower (SN: 400000000 - 999999999) HYDRAULIC HOSE ASSEMBLY Parts Diagram

Broom for GrandStand Multi Force Mower

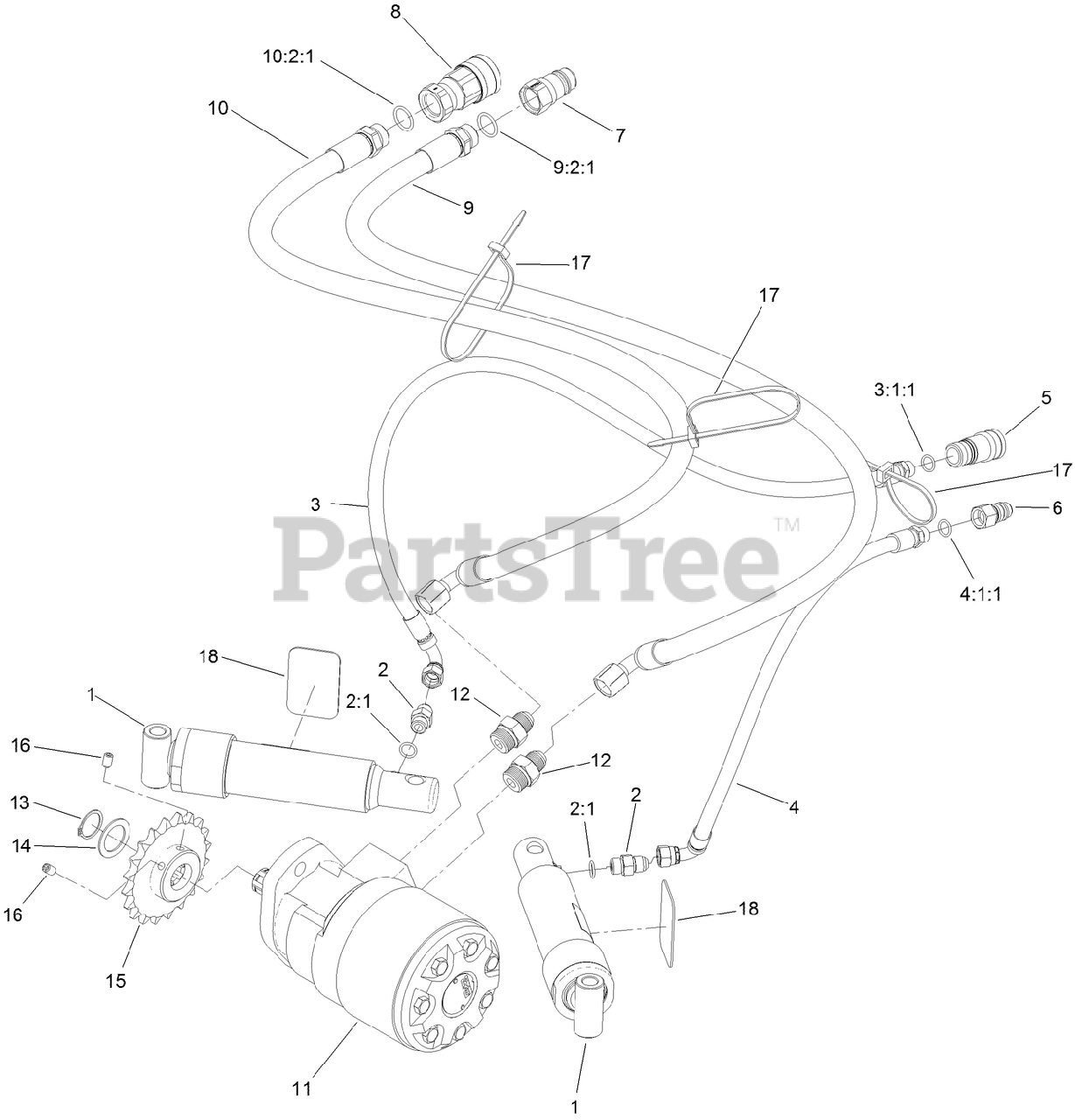

HYDRAULIC HOSE ASSEMBLY Parts Diagram

  • Title

1

Toro HYD13956

CYLINDER-RAM

$382.99

$

Usually ships in 3-6 days

0

2

Toro 353-384

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 136-7374

HOSE ASM

$98.99

$

Usually ships in 3-6 days

0

3:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

4

Toro 136-7375

HOSE ASM

$88.99

$

Usually ships in 3-6 days

0

4:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 63-1220

COUPLER-DISCONNECT, QUICK

$92.99

$

Usually ships in 3-6 days

0

6

Toro 63-1240

NIPPLE-DISCONNECT, QUICK

$26.99

$

Usually ships in 3-6 days

0

7

Toro 136-5711

DISCONNECT-QUICK , MALE

$42.99

$

Usually ships in 3-6 days

0

8

Toro 136-5706

DISCONNECT-QUICK, FEMALE

$94.99

$

Usually ships in 3-6 days

0

9

Toro 136-7376

HYD HOSE ASM

$139.99

$

Usually ships in 3-6 days

0

9:2:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

10

Toro 136-7377

HYD HOSE ASM

$139.99

$

Usually ships in 3-6 days

0

10:2:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

11

Toro 136-0537

MOTOR-HYDRAULIC

$1693.99

$

Usually ships in 3-6 days

0

12

Toro 353-433

FITTING-STRAIGHT

$

$

Not available

13

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 8

0

14

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 14

0

15

Toro 136-1217

SPROCKET-CHAIN

$187.99

$

Usually ships in 3-6 days

0

16

Toro 3246-17

SETSCREW-HSH

$1.49

$

In Stock, only 2 left!

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

18

Toro 121-7646

DECAL

$

$

Currently unavailable
