78596 - Toro Broom for GrandStand Multi Force Mower (SN: 400000000 - 999999999) HYDRAULIC MOTOR ASSEMBLY NO. 136-0537 Parts Diagram

Broom for GrandStand Multi Force Mower

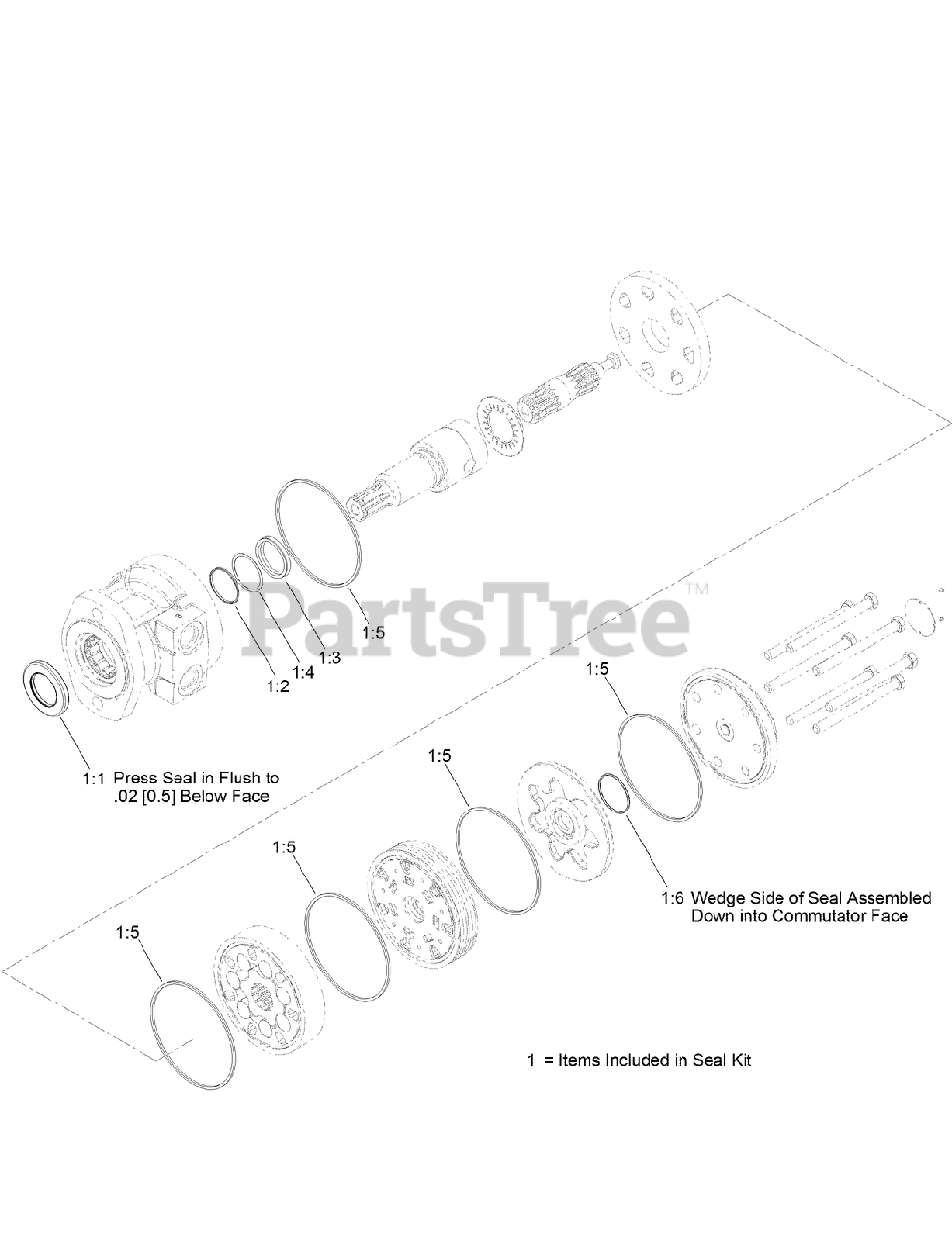

HYDRAULIC MOTOR ASSEMBLY NO. 136-0537 Parts Diagram

  • Title

1

Toro 76-0800

SEAL KIT

$108.99

$

Usually ships in 3-6 days

0

1:1

Seal-Dirt and Water

Note: Not serviced separately

$

$

Not available

1:2

BACKUP-RING

Note: Not serviced separately

$

$

Not available

1:3

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

1:4

Washer-Back Up

Note: Not serviced separately

$

$

Not available

1:5

SEAL-SQUARE, RING (INNER)

Note: Not serviced separately

$

$

Not available

1:6

Seal-Commutator

Note: Not serviced separately

$

$

Not available
