78601 - Toro High Flow Hydraulics Kit for GrandStand Multi Force Mower (SN: 400000000 - 999999999) PULLEY ASSEMBLY Parts Diagram

High Flow Hydraulics Kit for GrandStand Multi Force Mower

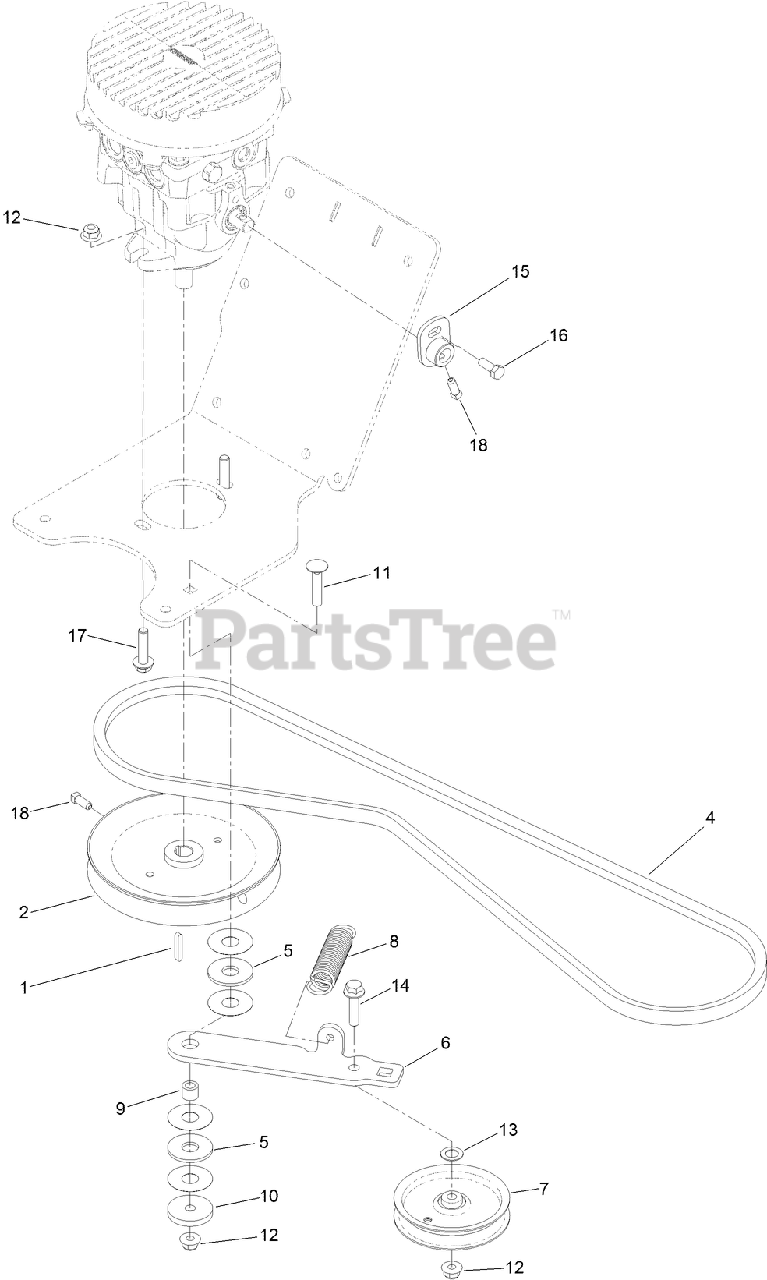

PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 103-2739

KEY

$2.99

$

In Stock, Qty 13

0

2

Toro 133-2039

PULLEY W/HUB

$49.99

$

Usually ships in 3-6 days

0

4

Toro 104-8120

V-BELT, PTO

$118.99

$

In Stock, only 2 left!

0

5

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

6

Toro 133-2033-03

ARM-IDLER

$36.99

$

Usually ships in 3-6 days

0

7

Toro 93-1622

PULLEY-IDLER

$53.99

$

In Stock, Qty 8

0

8

Toro 66-4180

SPRING-BRAKE, MAIN

$31.99

$

Usually ships in 3-6 days

0

9

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, only 2 left!

0

10

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 12

0

11

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 9

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

14

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Toro 136-7409

CONTROL ARM ASM

$55.99

$

Usually ships in 3-6 days

0

16

Toro 104-6560

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

17

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

18

Toro 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 8

0
