78601 - Toro High Flow Hydraulics Kit for GrandStand Multi Force Mower (SN: 400000000 - 999999999) Pump Assembly No. 136-1242 Parts Diagram

High Flow Hydraulics Kit for GrandStand Multi Force Mower

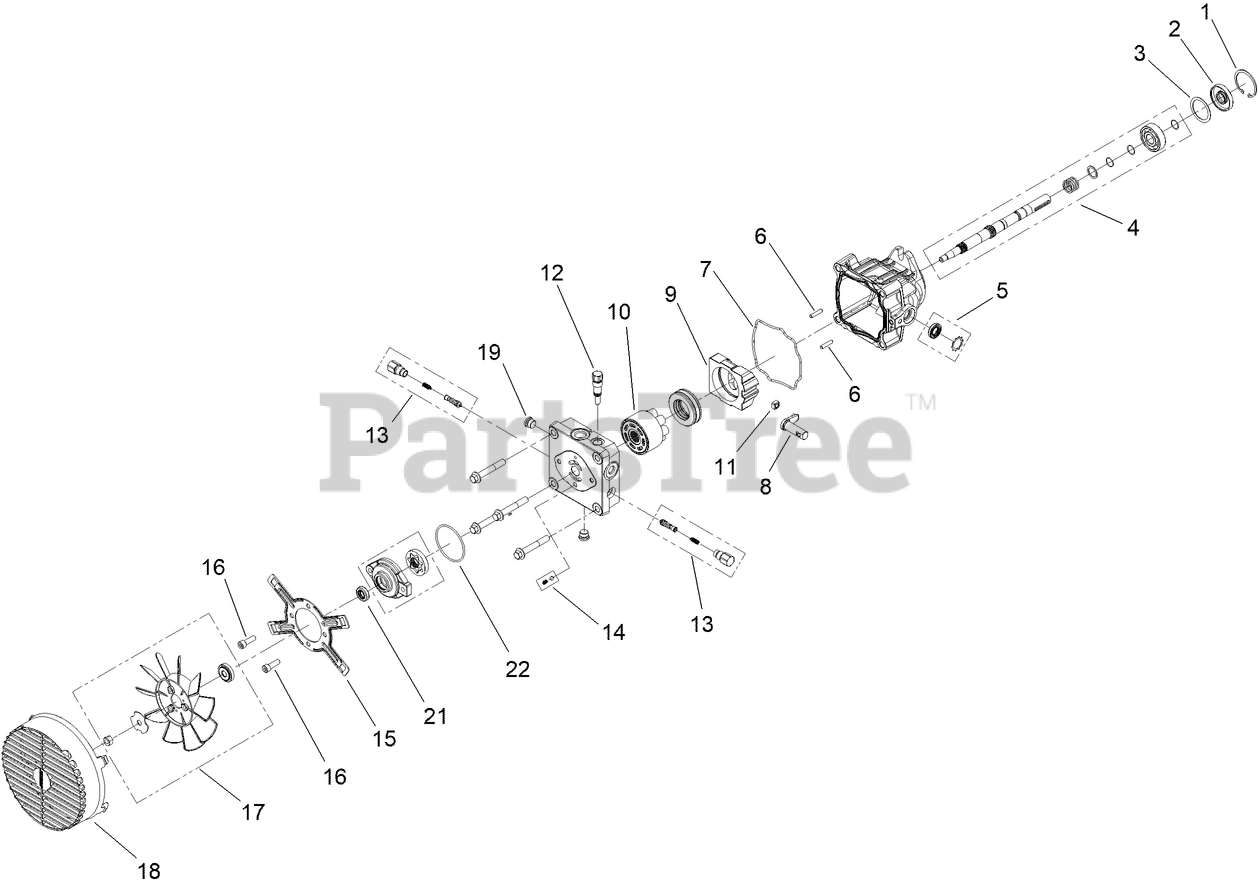

Pump Assembly No. 136-1242 Parts Diagram

  • Title

1

Toro 136-5414

RING-RETAINING

$11.99

$

Usually ships in 3-6 days

0

2

Toro 136-5416

SEAL-LIP

$31.99

$

Usually ships in 3-6 days

0

3

Toro 136-5415

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

4

Toro 109-2863

Bearing, Input Shaft PR

$607.99

$

Usually ships in 3-6 days

0

5

Toro 114-8155

TRUNNION SEAL KIT

$20.99

$

Usually ships in 3-6 days

0

6

Toro 106-8753

PIN-HEADLESS, STRAIGHT

$35.99

$

Usually ships in 3-6 days

0

7

Toro 136-5417

O-RING

$16.99

$

Usually ships in 3-6 days

0

8

Toro 112-4152

ARM-TRUNNION

$252.99

$

Usually ships in 3-6 days

0

9

Toro 112-4153

SWASHPLATE

$374.99

$

Usually ships in 3-6 days

0

10

Toro 120-1092

CYLINDER BLOCK KIT

$272.99

$

Usually ships in 3-6 days

0

11

Toro 94-1910

GUIDE-SLOT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 106-8759

BYPASS VALVE KIT

$114.99

$

Usually ships in 3-6 days

0

13

Toro 108-2109

SHOCK VALVE KIT

$122.99

$

Usually ships in 3-6 days

0

14

Toro 112-4164

CHARGE RELIEF KIT

$20.99

$

Usually ships in 3-6 days

0

15

Toro 136-5419

BRACKET-FAN

$41.99

$

Usually ships in 3-6 days

0

16

Toro 112-4161

BOLT

$6.49

$

Usually ships in 3-6 days

0

17

Toro 136-5418

FAN HUB KIT

$82.99

$

Usually ships in 3-6 days

0

18

Toro 116-0917

GUARD-FAN, PUMP

$76.99

$

Usually ships in 3-6 days

0

19

Toro 104-2189

PLUG-THREAD, STRAIGHT

$28.99

$

In Stock, only 2 left!

0

21

Toro 144-7018

SHAFT SEAL

$36.99

$

Usually ships in 3-6 days

0

22

Toro 144-7019

0-RING SEAL
(Superseded to 138-4626)

$12.99

$

Usually ships in 3-6 days

0
