788020 - Gravely Pro Series Dual Drive Belt PRO DUAL BELT KIT Parts Diagram

Pro Series Dual Drive Belt

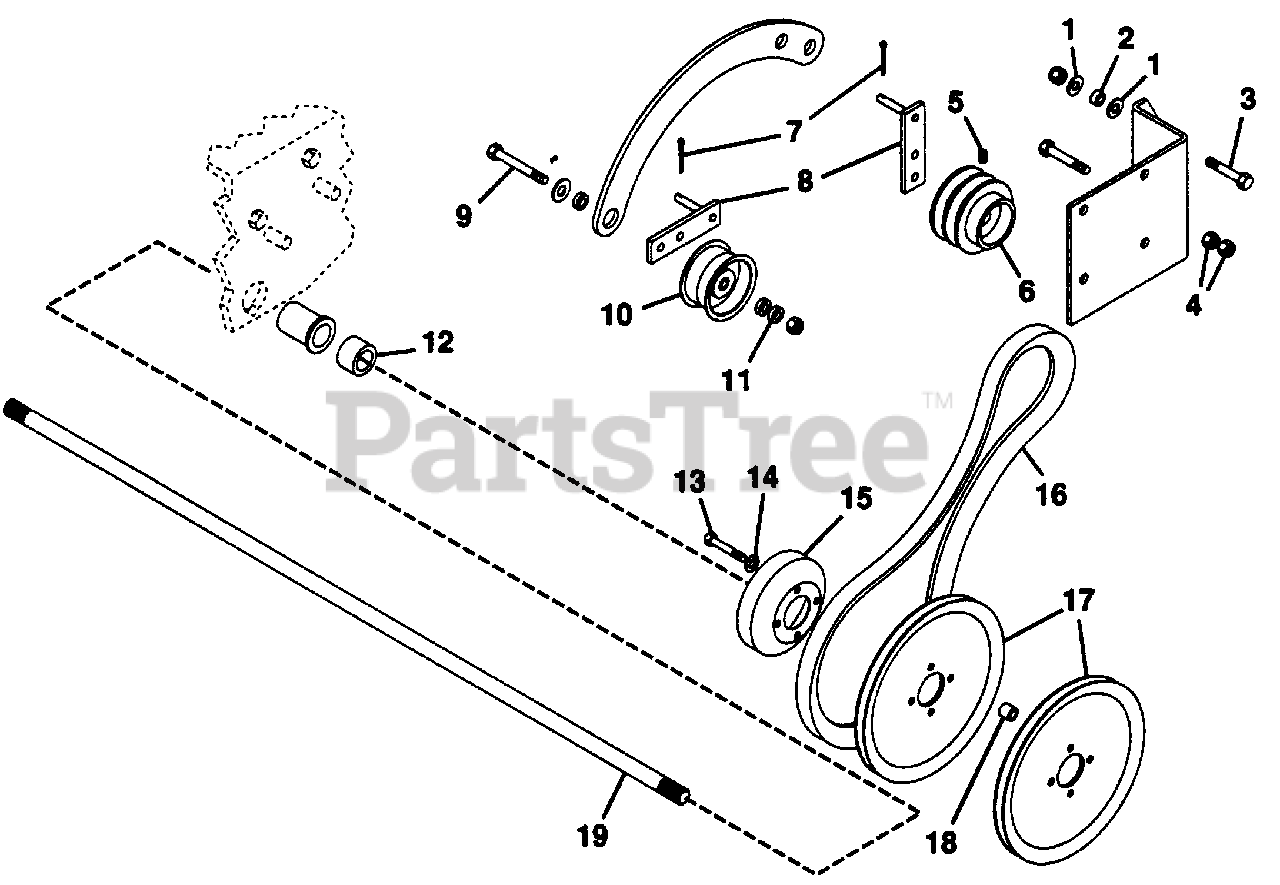

PRO DUAL BELT KIT Parts Diagram

  • Title

1

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 021076

Bushing, .391x.622x.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

3

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

4

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 102580

Screw, Set 5/16-18x.25 HSCK
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

6

Gravely 048866

Pulley, Jack-Shaft
(Superseded to 21287900)

$

$

Not available

7

Gravely 177923

Pin, Cotter .125x.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

8

Gravely 048871

Weldment, Idler Arm
(Superseded to 21288100)

$

$

Not available

9

Gravely 180138

Bolt, Hex 3/8-16x3.00
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 048870

Sheave, Idler
(Superseded to 07318400)

$22.99

$

In Stock, only 2 left!

0

11

Gravely 014672

Spacer, Idler .406x.750x.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

12

Gravely 048934

Spacer, Wheel
(Superseded to 21288600)

$

$

Not available

13

Gravely 180083

Bolt, Hex 5/16-18x1.50
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 048994

Drum, Brake
(Superseded to 08813600)

$

$

Not available

16

Gravely 048869

Belt, Set Traction
(Superseded to 07222200)

$58.99

$

Usually ships in 4-12 days

0

17

Gravely 048865

Pulley, Pro Wheel Drive
(Superseded to 07318300)

$

$

Not available

18

Gravely 048868

Spacer, Wheel Pulley
(Superseded to 08809500)

$

$

Not available

19

Gravely 048867

Shaft, Axle
(Superseded to 21288000)

$

$

Not available
