788046 - Ariens 32" Bahia Baffle Kit Decks 32", 34" And 36" Parts Diagram

32" Bahia Baffle Kit

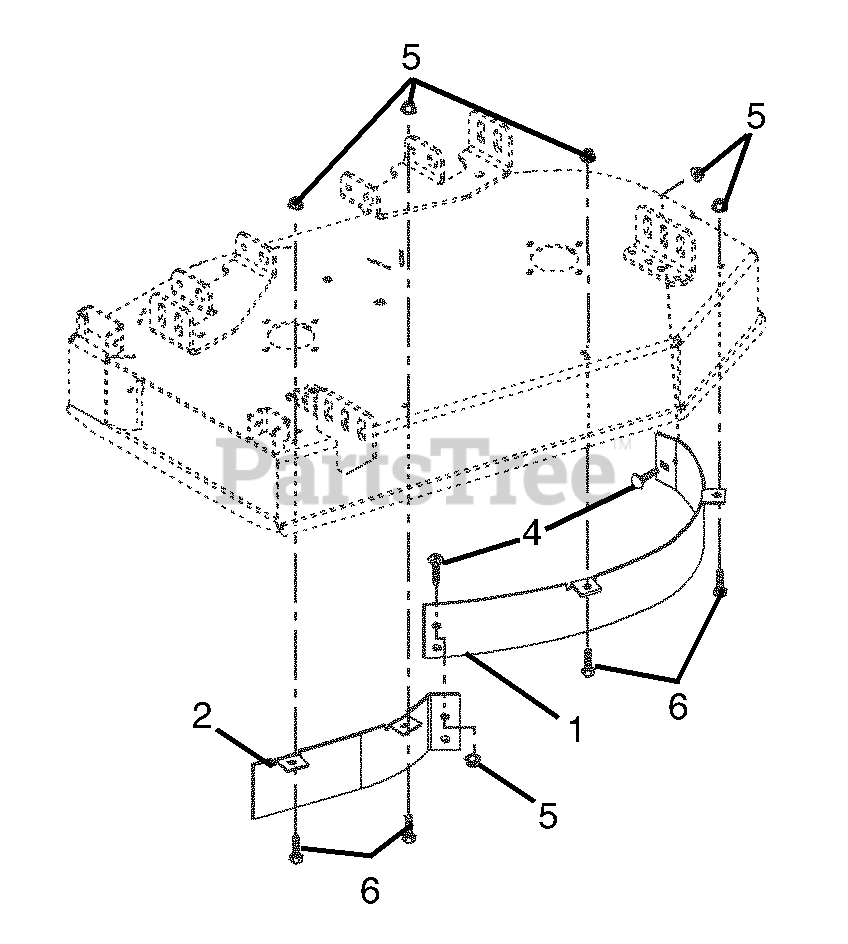

Decks 32", 34" And 36" Parts Diagram

  • Title

1

Ariens 04924751

BAFFLE-BAHIA-LEFT FRONT-36"

Note: Kit 78803700

$

$

Not available

Ariens 04930351

BAFFLE-BAHIA-LEFT FRONT-32"

Note: Kit 78804600

$

$

Not available

Ariens 00171151

BAFFLE, BAHIA 34" FRONT RH

Note: Kit 79203300

$

$

Not available

2

Ariens 04924851

BAFFLE-BAHIA-RIGHT FRONT-36"

Note: Kit 78803700

$

$

Not available

Ariens 04930451

BAFFLE-BAHIA-RIGHT FRONT-32"

Note: Kit 78804600

$

$

Not available

Ariens 00171251

BAFFLE, BAHIA 34" FRONT LH

Note: Kit 79203300

$

$

Not available

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

Ariens 78803700

KIT, BAHIA BAFFLE 36"

$

$

Not available

Ariens 78804600

KIT - BAHIA BAFFLE - 32"

$

$

Not available

Ariens 79203300

KIT-BAHIA BAFFLE (34")

$

$

Not available
