788050 - Gravely Pro Series 1-Wheel Sulky W, 15" Arm Sulky Parts Diagram

Pro Series 1-Wheel Sulky W, 15" Arm

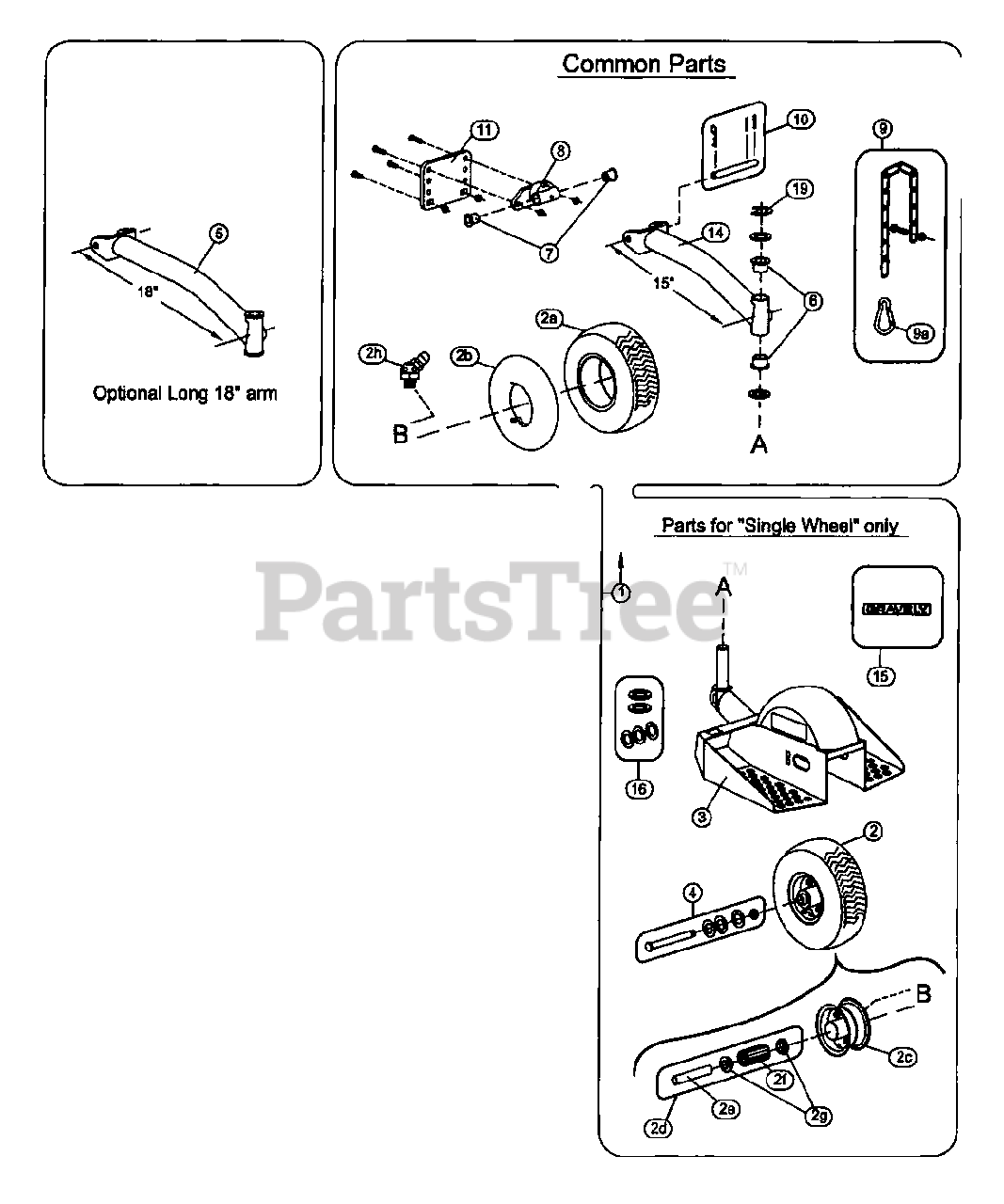

Sulky Parts Diagram

  • Title

1

Gravely 78805000

SULKY, Single Wheel w/15" arm

$568.99

$

Usually ships in 4-12 days

0

2

Gravely 07158700

Wheel Assy., w/centered hub & spanner

$

$

Not available

2a

Gravely 07158400

9" x 3.5" 2 Ply Turf Tread Tire

$56.99

$

Usually ships in 4-12 days

0

2b

Gravely 07158300

9" x 3.5" Tube

Note: For Tire 07158400

$34.99

$

Usually ships in 4-12 days

0

2c

Gravely 07158500

4" x 2.25" 3 Piece Rim/Centered Hub Assy. (w/o bearings)

Note: (w/o bearings)

$47.99

$

Usually ships in 4-12 days

0

2d

Gravely 58805800

Bearing Kit, (Single Wheel) (w/Roller Bearing, Retainers & Spanner)

Note: (Single Wheel) (w/Roller Bearing, Retainers & Spanner)

$48.99

$

Usually ships in 4-12 days

0

2e

Gravely 04933900

Spanner, 3/4" O.D.

$

$

Not available

2f

Gravely 05436600

Roller Bearing, 3/4" I.D.

$

$

Not available

2f

Gravely 04933700

Bearing Retainer, 3/4" I.D.

$

$

Not available

2h

Gravely 04933600

Grease Fitting

Note: For Wheels 07158700 & 07158800

$20.99

$

Usually ships in 4-12 days

0

3

Gravely 04932700

Foot Platform, Single Wheel (w/decals)

Note: (w/decals)

$352.99

$

Usually ships in 4-12 days

0

4

Gravely 04933300

Axle Bolt (w/spacers and self locking nut)

Note: (w/spacers and self locking nut)

$

$

Not available

5

Gravely 04932600

Arm, 18" (w/bushings & grease fitting)

Note: (w/bushings & grease fitting)

$

$

Not available

6

Gravely 05534200

Bronze Bushing pivot(s)

Note: (Single req. 2, Double req. 4)

$18.99

$

In Stock, Qty 8

0

7

Gravely 05534300

Bronze Bushing for hitch

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 04932500

Hitch (w/bushings & grease fitting)

Note: (w/bushings & grease fitting)

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 04934200

Snap & Chain Kit

Note: (Includes chain, snap, nut, bolt)

$

$

Not available

9a

Gravely 04934100

Spring Snap

Note: For chain

$

$

Not available

10

Gravely 04932900

Clevis pin

Note: For hitch, w/hair pin & roll pins

$30.99

$

Usually ships in 4-12 days

0

11

Gravely 04932400

Adapter plate

Note: For hitch height adjustment

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 04933400

SHORT 15" arm (w/bushings)

Note: (w/bushings)

$

$

Not available

15

Gravely 05223900

Gravely Logo Decal
(Superseded to 05239800)

$9.49

$

In Stock, only 1 left!

0

16

Gravely 04933100

Spacer kit

Note: (Includes both sizes needed, 4 total)

$

$

Not available

19

Gravely 05718800

E Clip 7/8"

Note: (Single req. 1; Double req. 2)

$6.99

$

Usually ships in 4-12 days

0
