788051 - Gravely Pro Series 2-Wheel Sulky W, 15" Arm Sulky Parts Diagram

Pro Series 2-Wheel Sulky W, 15" Arm

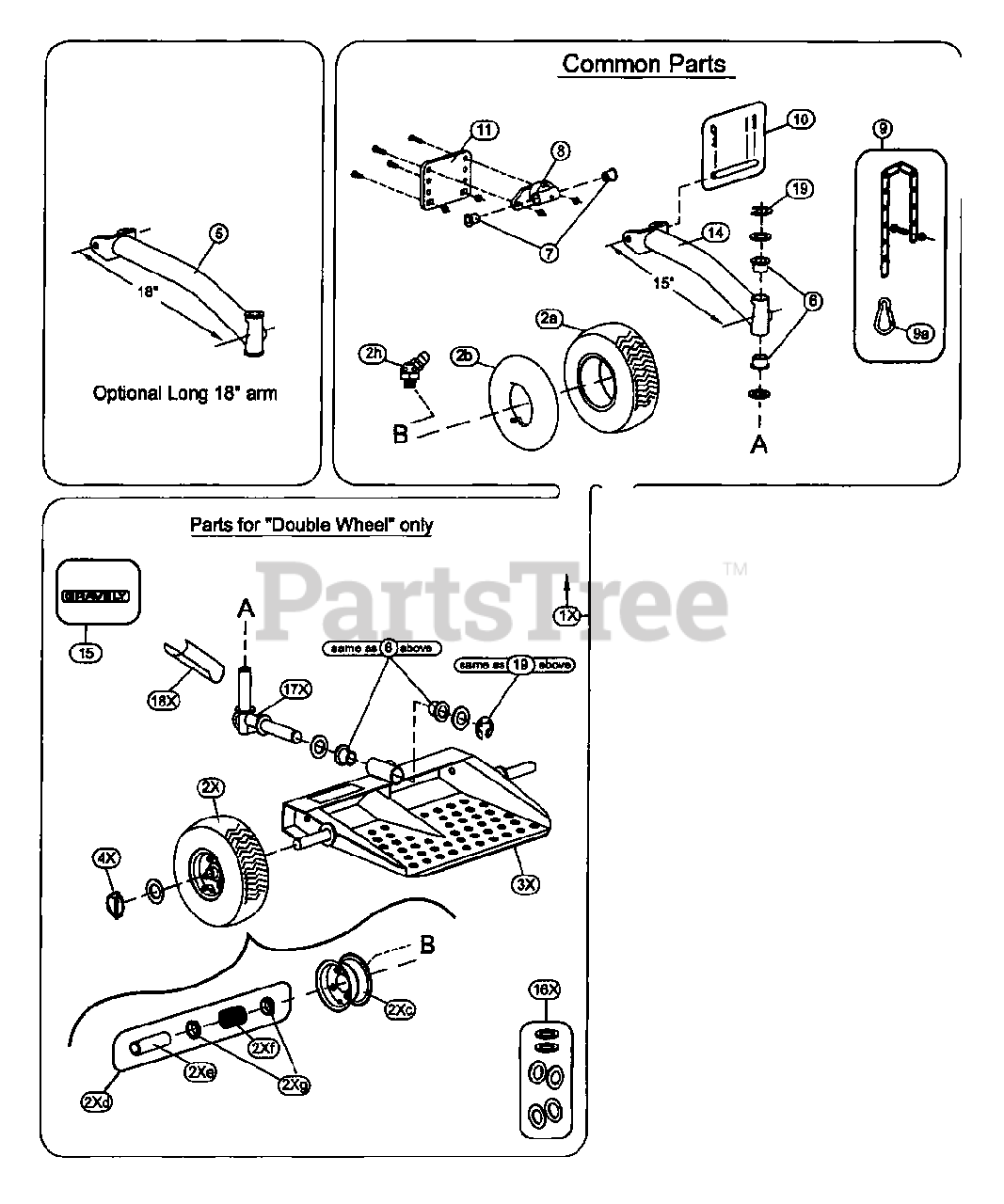

Sulky Parts Diagram

  • Title

1X

Gravely 78805100

SULKY, Double Wheel w/15" arm
(Superseded to 78806800)

$775.99

$

Usually ships in 4-12 days

0

2X

Gravely 07158800

Wheel Assy., w/offset hub & spanner
(Superseded to 21568800)

$149.99

$

Usually ships in 4-12 days

0

2a

Gravely 07158400

9" x 3.5" 2 Ply Turf Tread Tire

$56.99

$

Usually ships in 4-12 days

0

2b

Gravely 07158300

9" x 3.5" Tube

Note: For Tire 07158400

$34.99

$

Usually ships in 4-12 days

0

2Xc

Gravely 07158600

4" x 2.25" 3 Piece Rim/Offset Hub Assy. (w/o bearings)

Note: (w/o bearings)

$75.99

$

Usually ships in 4-12 days

0

2Xd

Gravely 58805900

Bearing Kit, (Double Wheel) (w/Roller Bearing, Retainers & Spanner)

Note: (Double Wheel) (w/Roller Bearing, Retainers & Spanner)

$90.99

$

Usually ships in 4-12 days

0

2Xe

Gravely 04934000

Spanner, 1" O.D.

$35.99

$

Usually ships in 4-12 days

0

2Xf

Gravely 05436700

Roller Bearing, 1" I.D.

$35.99

$

Usually ships in 4-12 days

0

2Xg

Gravely 04933800

Bearing Retainer, 1" I.D.

$13.99

$

Usually ships in 4-12 days

0

2h

Gravely 04933600

Grease Fitting

Note: For Wheels 07158700 & 07158800

$20.99

$

Usually ships in 4-12 days

0

3X

Gravely 04932800

Foot Platform, Double Wheel (w/decals,bushings,zerk)

Note: (w/decals,bushings,zerk)

$

$

Not available

4X

Gravely 04933500

Linch Pin

Note: For Double Wheel axle

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 04932600

Arm, 18" (w/bushings & grease fitting)

Note: (w/bushings & grease fitting)

$

$

Not available

6

Gravely 05534200

Bronze Bushing pivot(s)

Note: (Single req. 2, Double req. 4)

$18.99

$

In Stock, Qty 8

0

7

Gravely 05534300

Bronze Bushing for hitch

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 04932500

Hitch (w/bushings & grease fitting)

Note: (w/bushings & grease fitting)

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 04934200

Snap & Chain Kit

Note: (Includes chain, snap, nut, bolt)

$

$

Not available

9a

Gravely 04934100

Spring Snap

Note: For chain

$

$

Not available

10

Gravely 04932900

Clevis pin

Note: For hitch, w/hair pin & roll pins

$30.99

$

Usually ships in 4-12 days

0

11

Gravely 04932400

Adapter plate

Note: For hitch height adjustment

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 04933400

SHORT 15" arm (w/bushings)

Note: (w/bushings)

$

$

Not available

15

Gravely 05223900

Gravely Logo Decal
(Superseded to 05239800)

$9.49

$

In Stock, only 1 left!

0

16X

Gravely 04933200

Spacer kit

Note: (Includes both sizes needed, 6 total)

$18.99

$

Usually ships in 4-12 days

0

17X

Gravely 04933000

Intermediate Pivot

$176.99

$

Usually ships in 4-12 days

0

18X

Gravely 04934300

Protective cover

Note: (For fold-up feature)

$

$

Not available

19

Gravely 05718800

E Clip 7/8"

Note: (Single req. 1; Double req. 2)

$6.99

$

Usually ships in 4-12 days

0
