78890-30000 (99922201707) - Shindaiwa Speed-Feed 400 Head SPEED-FEED 400 Trimmer Head Parts Diagram

Speed-Feed 400 Head

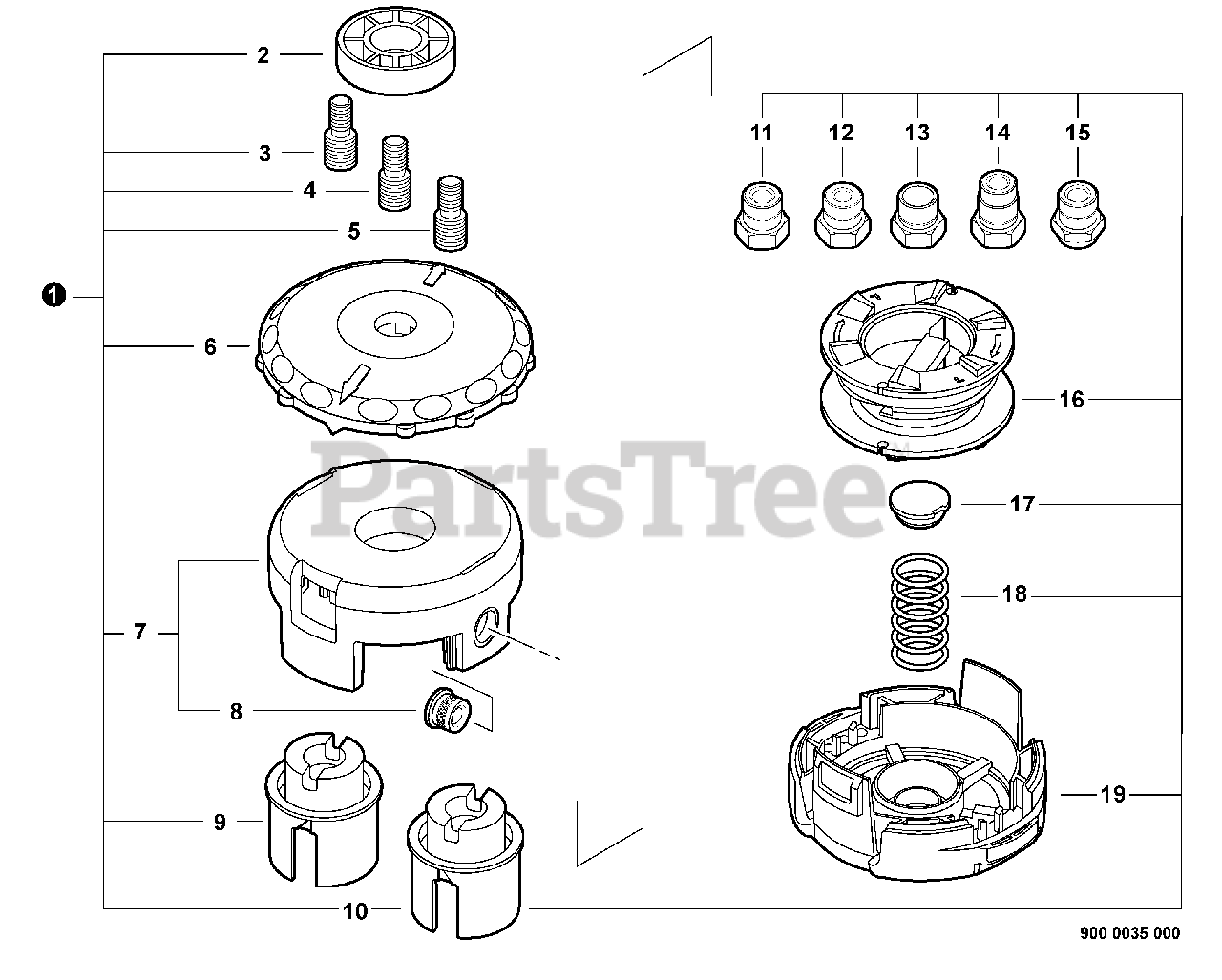

SPEED-FEED 400 Trimmer Head Parts Diagram

  • Title

1

Echo 78890-30000

SPEED-FEED 400 TRIMMER HEAD

Note: Includes ITEMS 2-19

$41.99

$

In Stock, Qty 20+

0

2

Echo V376001850

SPACER

$4.99

$

In Stock, Qty 5

0

3

Echo V216000070

STUD - GOLD -- LEFT HAND
(Superseded to V216000110)

$6.49

$

In Stock, Qty 14

0

4

Echo V225000300

STUD - SILVER -- LEFT HAND
(Superseded to V225000320)

$5.99

$

In Stock, only 3 left!

0

5

Echo V225000231

STUD - BLACK -- RIGHT HAND
(Superseded to V225000310)

$6.99

$

Usually ships in 2-4 days

0

6

Echo E415000180

LID

$4.49

$

In Stock, Qty 20+

0

7

Echo X470000330

SPOOL COVER ASSY

Note: Includes ITEM 8

$11.99

$

In Stock, Qty 20+

0

8

Echo X475000110

EYELET

$2.49

$

In Stock, Qty 20+

0

9

Echo X476000040

HUB - BLACK -- LEFT HAND

$2.99

$

In Stock, Qty 20+

0

10

Echo X476000050

HUB - WHITE -- RIGHT HAND

$2.99

$

In Stock, only 1 left!

0

11

Echo V160000150

ARBOR - GOLD -- LEFT HAND

$5.99

$

In Stock, Qty 20+

0

12

Echo V160000170

ARBOR - RED -- LEFT HAND

$5.99

$

Usually ships in 2-4 days

0

13

Echo V160000180

ARBOR - GREEN -- LEFT HAND

$5.99

$

In Stock, Qty 20+

0

14

Echo V160000190

ARBOR - SILVER -- LEFT HAND

$5.99

$

Usually ships in 2-4 days

0

15

Echo V160000160

ARBOR - BLACK -- RIGHT HAND
(Superseded to V160000050)

$9.99

$

Usually ships in 2-4 days

0

16

Echo X473000130

SPOOL

$8.49

$

In Stock, Qty 20+

0

17

Echo V494000840

RETAINER, SPRING

$1.99

$

In Stock, Qty 20+

0

18

Echo V450001880

SPRING

$2.49

$

In Stock, Qty 20+

0

19

Echo X472000070

CASE

$8.49

$

In Stock, Qty 20+

0
