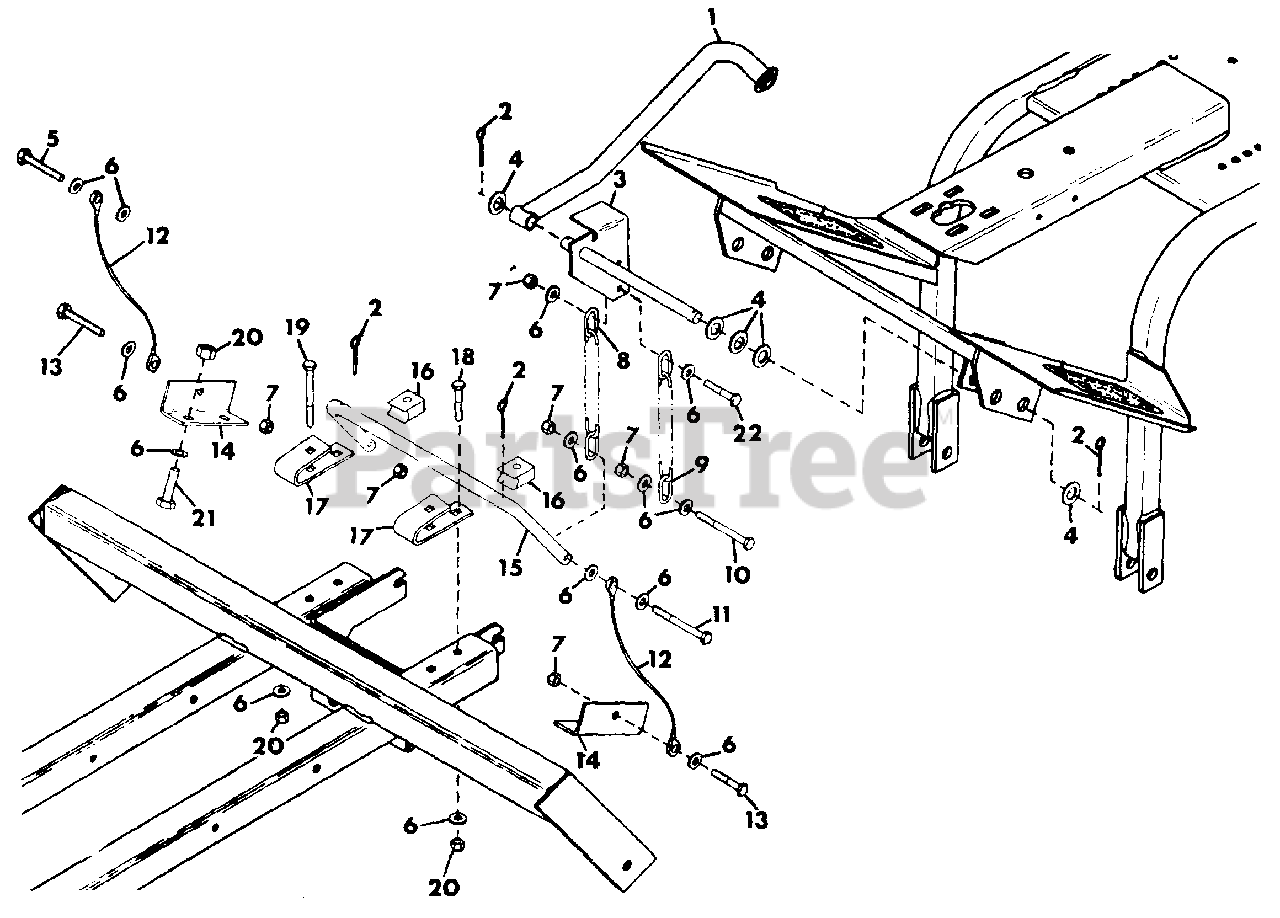

789022 - Gravely Manual Lift for PM50 LIFT KIT Parts Diagram

Manual Lift for PM50

LIFT KIT Parts Diagram

  • Title

1

Gravely 037045

WLDMT,LIFT LEVER
(Superseded to 08925200)

$

$

Not available

2

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 17

0

3

Gravely 037042

WLDMT,LIFT BRACKET
(Superseded to 08924900)

$

$

Not available

4

Gravely 421879

WSHR-FL-STL .656X1.250X.10 YZC
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 180085

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

8

Gravely 037041

CHN,LIFT
(Superseded to 09031400)

Note: (8-LINK)

$

$

Not available

9

Gravely 037908

CHN,LIFT
(Superseded to 09031500)

Note: (7-LINK)

$

$

Not available

10

Gravely 180735

BLT-HEX .31-18X3.25 GR5 YWZC
(Superseded to 05971700)

$

$

Not available

11

Gravely 180087

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 18

0

12

Gravely 034480

CBL,LIFT
(Superseded to 06924200)

$

$

Not available

13

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 037039

BRKT,LIFT
(Superseded to 08924800)

$

$

Not available

15

Gravely 037040

ARM,PIVOT
(Superseded to 09027900)

$

$

Not available

16

Gravely 011260

STOP,NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

17

Gravely 011264

BRKT,AXLE SUPPORT
(Superseded to 03349000)

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 180138

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 11

0

19

Gravely 191163

BLT-HEX .38-16X4.00 GR5 YWZC
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0
