789055 - Gravely 4-Wheel Drive Assist Kit for PM400

4-Wheel Drive Assist Kit for PM400

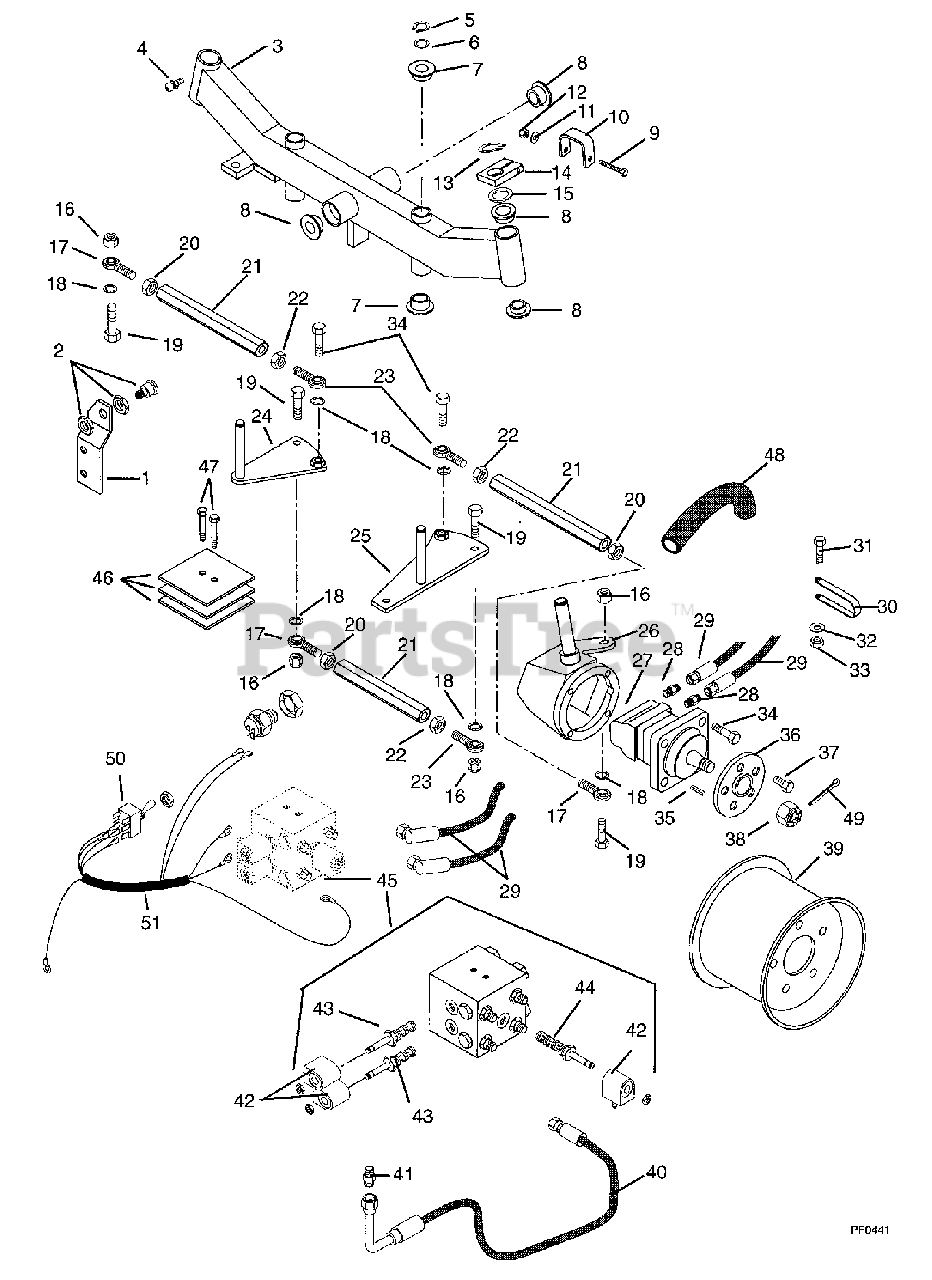

789055 - Gravely 4-Wheel Drive Assist Kit for PM400 > Parts Diagrams (2) > Four Wheel Drive Assist Kit

  • Title
09030800

1

Bracket

Part# 09030800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

039493

2

Safety Switch

Part# 039493 (Superseded to 03110700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

09039100

3

Axle Weldment

Part# 09039100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $89.38

411027

4

Fitting Lube .25-28 x .256

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

026300

5

Ring-Retaining-External .689 x .077

Part# 026300 (Superseded to 05714600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011223

6

Bearing-Needle-Thrust .752 x 1.24 x .031

Part# 011223 (Superseded to 06413400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

010174

7

Bushing-Flange .762 x 1.0 x .580 x 1.48

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

018355

8

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

Part# 018355 (Superseded to 05520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05969900

9

Bolt-Hex .25-20 x 2.75 Grade 5

Part# 05969900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

09017400

10

Bracket, Hose Loop

Part# 09017400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06437300

11

Washer-Flat-Steel .281 X .62 X .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06529700

12

Nut-Locking .25-20

Part# 06529700

OEM Warranty Repair Part for Gravely

Not available

017980

13

Ring-Retaining-External .906 x .078

Part# 017980 (Superseded to 05707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

09038300

14

Bracket Support

Part# 09038300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

019340

15

Washer-Hardened Thrust 1.002 x 1.552 x .030

Part# 019340 (Superseded to 06435300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06536300

16

Nut-Locking-Center .50-13 Grade 5

Part# 06536300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

044950

17

Assembly, Rod End Right Hand

Part# 044950 (Superseded to 08959600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

046192

18

Spacer .520 x .625 x .125

Part# 046192 (Superseded to 08974800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05959700

19

Bolt-Hex .50-13 x 2.00 Grade 5

Part# 05959700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06539500

20

Nut-Jam .50-20 Grade 2

Part# 06539500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

051085

21

Rod, Tie

Part# 051085 (Superseded to 09002400)

OEM Warranty Repair Part for Gravely

Not available

06538300

22

Nut-Jam .50-20 Left Hand Grade 2

Part# 06538300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $7.98

051086

23

Assembly, Rod End Left Hand

Part# 051086 (Superseded to 09002500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

09084300

24

Weldment, Steering Idler

Part# 09084300

OEM Warranty Repair Part for Gravely

Not available

09084200

25

Weldment, Steering Arm

Part# 09084200

OEM Warranty Repair Part for Gravely

Not available

09045500

26

Spindle Weldment Left Hand

Part# 09045500

OEM Warranty Repair Part for Gravely

Not available

09045400

26

Spindle Weldment Right Hand

Part# 09045400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $145.28

09045600

27

Eaton 2000 Wheel Motor

Part# 09045600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $894.85

07025800

28

Adapter, Hydraulic

Part# 07025800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

09038600

29

Assembly, Hydraulic Hose

Part# 09038600

OEM Warranty Repair Part for Gravely

Not available

045279

30

Clamp, Nylon

Part# 045279 (Superseded to 06939900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05948700

31

Bolt-Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06436200

32

Washer-Flat-Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529600

33

Nut-Locking-Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05962000

34

Bolt-Hex .50-13 x 1.50 Grade 5

Part# 05962000

OEM Warranty Repair Part for Gravely

Not available

06609800

35

Key-Square .313 x 1

Part# 06609800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

09017600

36

Hub

Part# 09017600

OEM Warranty Repair Part for Gravely

Not available

07412200

37

Screw-Hex-Tapping .500-20 x .62

Part# 07412200 (Superseded to 07416900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06528400

38

Nut-Hex Slotted 1-20

Part# 06528400

OEM Warranty Repair Part for Gravely

Not available

07136400

39

Wheel

Part# 07136400

OEM Warranty Repair Part for Gravely

Not available

09038700

40

Assembly, Hydraulic Hose

Part# 09038700

OEM Warranty Repair Part for Gravely

Not available

07020400

41

Adapter, Hydraulic

Part# 07020400

OEM Warranty Repair Part for Gravely

Not available

07020700

42

Coil, Solenoid

Part# 07020700

OEM Warranty Repair Part for Gravely

Not available

07026700

43

Valve, 3-Way 12VDC Directional

Part# 07026700

OEM Warranty Repair Part for Gravely

Not available

07026800

44

Valve, 4-Way 12VDC Directional

Part# 07026800

OEM Warranty Repair Part for Gravely

Not available

09017800

45

Hydraulic Manifold Assembly

Part# 09017800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1548.81

09038800

46

Plate

Part# 09038800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947500

47

Bolt-Hex .31-18 x 1.25 Grade 5

Part# 05947500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

050692

48

Sleeve 18"

Part# 050692 (Superseded to 08787200)

OEM Warranty Repair Part for Gravely

Not available

06704600

49

Pin-Cotter .12 x 2.0

Part# 06704600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

09035900

50

Power Switch, four Wheel Drive

Part# 09035900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

09039300

51

Wire Harness, 4 Wheel Drive

Part# 09039300

OEM Warranty Repair Part for Gravely

Not available

78905500

Kit

Part# 78905500

OEM Warranty Repair Part for Gravely

Not available
