78922 (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) DECK ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

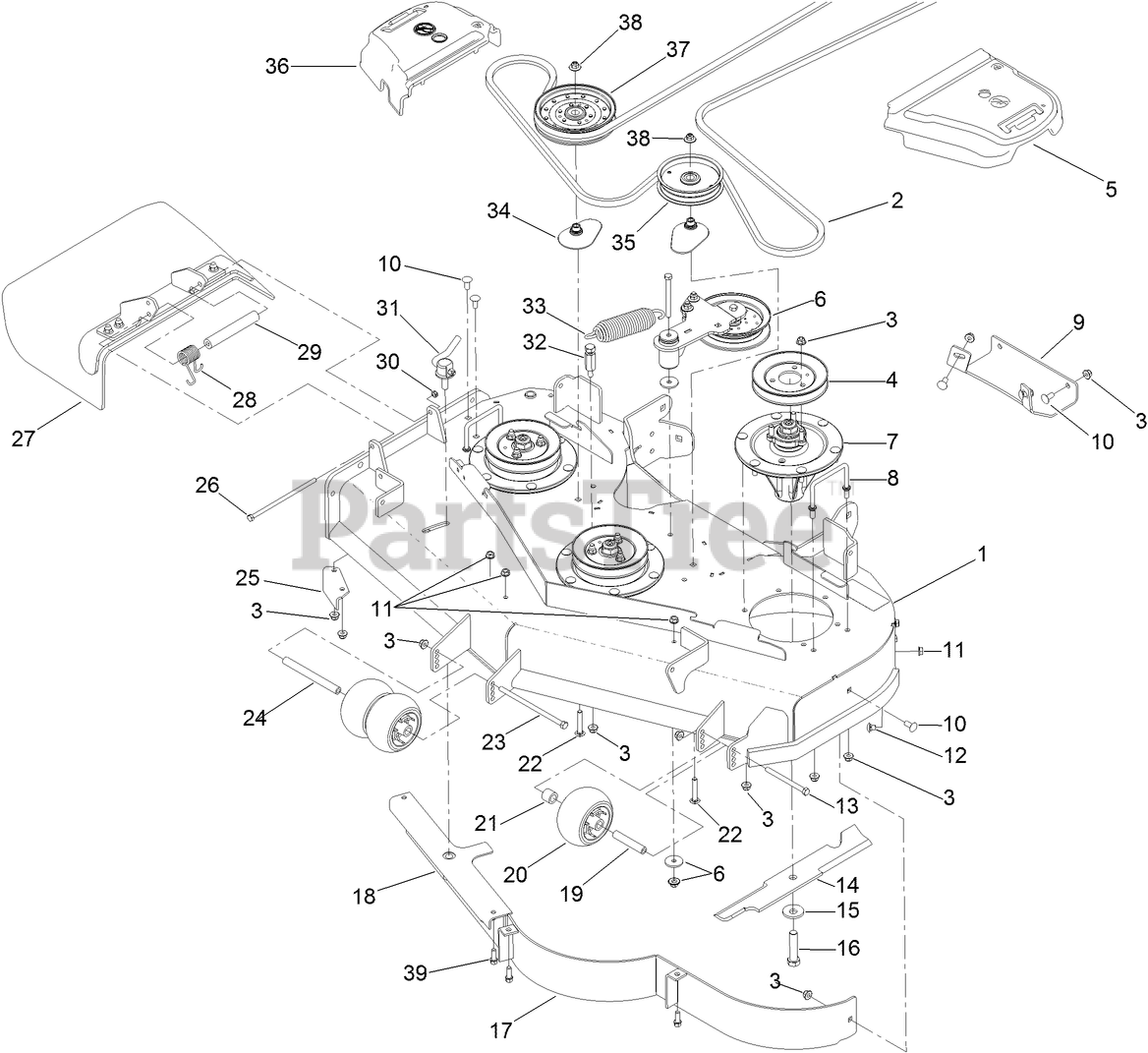

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-4185

DECK DECAL ASM

$

$

Not available

2

Toro 115-7407

BELT-V

$176.99

$

In Stock, only 4 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-7440

PULLEY

$68.99

$

In Stock, only 2 left!

0

5

Toro 109-6936

COVER-BELT, LH

$42.99

$

In Stock, only 2 left!

0

6

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

7

Toro 119-8560

SPINDLE ASM

$647.99

$

Usually ships in 3-6 days

0

8

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

9

Toro 112-4230-01

PLATE-SKID

$

$

Not available

10

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, only 3 left!

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 108-5387

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

13

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

14

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$33.99

$

In Stock, Qty 20+

0

15

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

16

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 12

0

17

Toro 114-5862-01

BAFFLE

$215.99

$

Usually ships in 3-6 days

0

18

Toro 107-8506-01

BAFFLE
(Superseded to 131-1480-01)

$190.99

$

Usually ships in 3-6 days

0

19

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 7

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

21

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 11

0

22

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 5

0

23

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 10

0

24

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, only 1 left!

0

25

Toro 107-8541-01

BAFFLE-DISCHARGE

$23.99

$

In Stock, only 1 left!

0

26

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 5

0

27

Toro 108-2792

RUBBER DEFLECTOR ASM

$248.99

$

In Stock, only 4 left!

0

28

Toro 108-4052

SPRING-TORSION

$27.99

$

In Stock, only 2 left!

0

29

Toro 105-4622

SPACER

$11.99

$

In Stock, only 1 left!

0

30

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 107-1664

LEVER ASM

$82.99

$

In Stock, only 2 left!

0

32

Toro 114-5867

ANCHOR-SPRING, TALL

$15.99

$

In Stock, Qty 7

0

33

Toro 116-0133

EXTENSION-SPRING
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 16

0

34

Toro 109-2872

SPACER-PULLEY

$23.99

$

In Stock, Qty 6

0

35

Toro 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 7

0

36

Toro 109-6935

COVER-BELT, RH

$42.99

$

Usually ships in 3-6 days

0

37

Toro 116-4670

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$66.99

$

In Stock, only 1 left!

0

38

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

39

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
