78926 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) SPINDLE ASSEMBLY NO. 117-6159 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

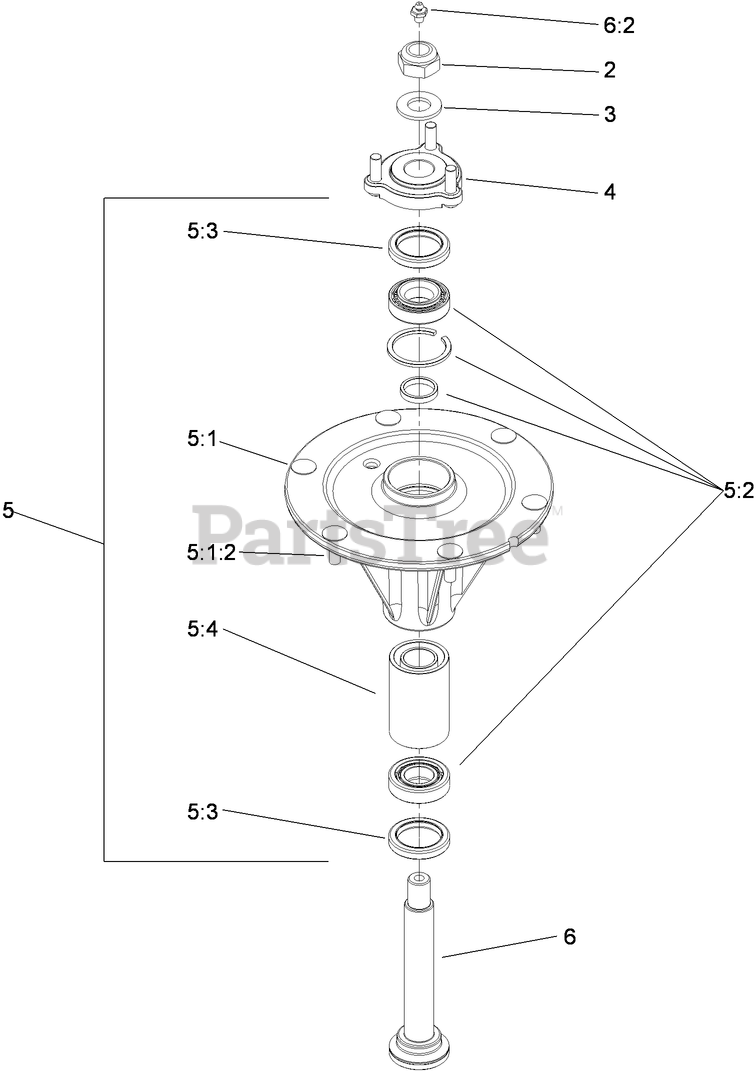

SPINDLE ASSEMBLY NO. 117-6159 Parts Diagram

  • Title

2

Toro 3296-67

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

3

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 19

0

4

Toro 117-6172

SPINDLE HUB ASM

$58.99

$

In Stock, only 2 left!

0

5

SPINDLE HOUSING AND TAPERED BEARINGS ASM

Note: Not serviced separately

$

$

Not available

5:1

HOUSING-SPINDLE

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 114-8195

BOLT-RIBBED NECK

$2.99

$

In Stock, Qty 5

0

5:2

Toro 114-8163

BEARING ASM
(Superseded to 119-8531)

$112.99

$

In Stock, Qty 5

0

5:3

Toro 253-133

SEAL-OIL

$23.99

$

In Stock, Qty 20+

0

5:4

Toro 117-6185

SPACER SET

$54.99

$

In Stock, only 3 left!

0

6

Toro 119-1851

SPINDLE SHAFT AND ZERK ASM
(Superseded to 119-8527)

$84.99

$

In Stock, only 3 left!

0

6:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0
