790005 - Gravely Individual Brake Kit for PM360 Individual Brake Kit Parts Diagram

Individual Brake Kit for PM360

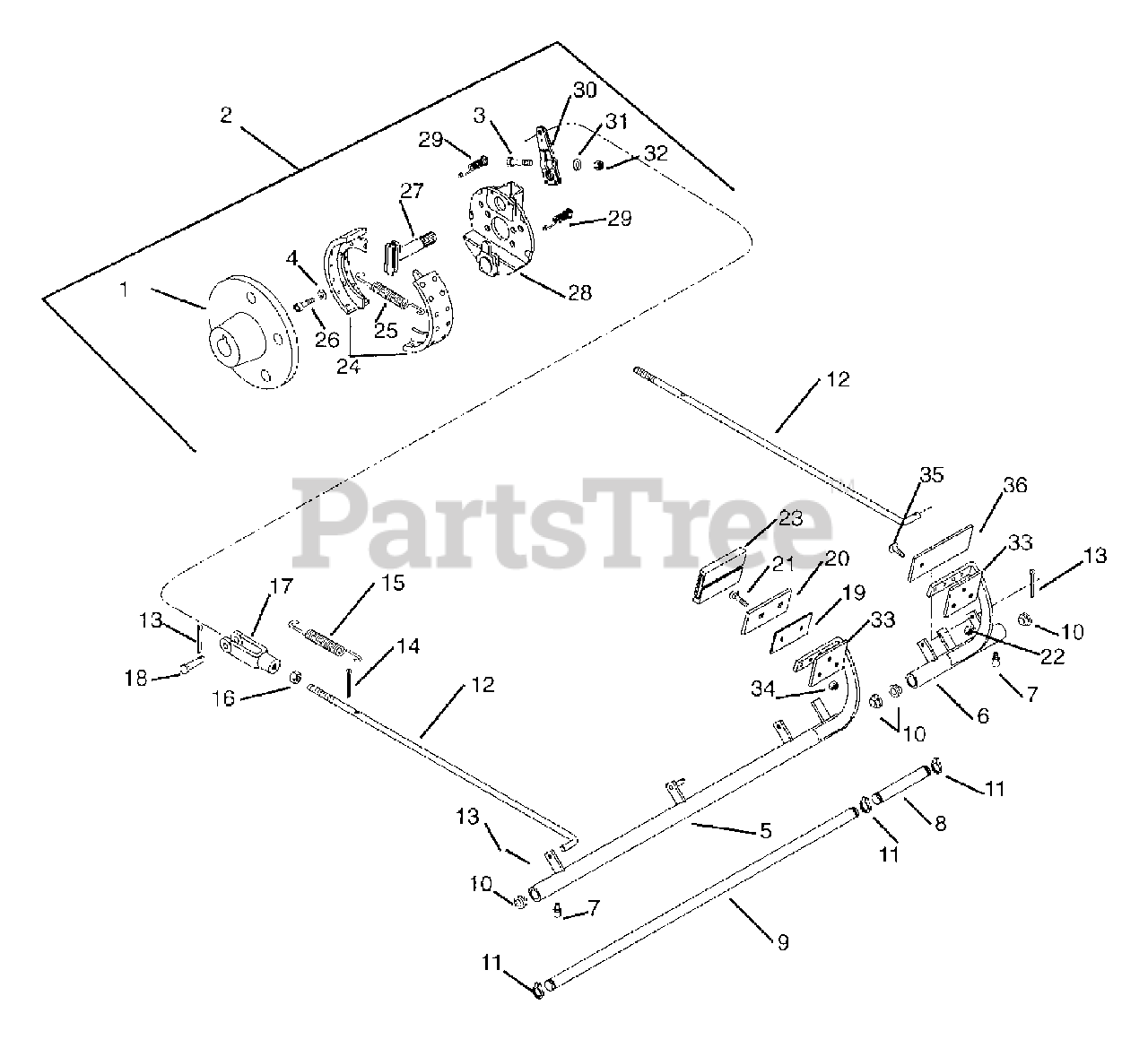

Individual Brake Kit Parts Diagram

  • Title

1

Gravely 09049200

Hub, Wheel

$

$

Not available

2

Gravely 09063700

Brake, 7 x 1.75 Mechanical

$205.99

$

Usually ships in 4-12 days

0

3

Gravely 05968000

Bolt-Hex, .31-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

4

Gravely 06308600

Washer-Lock, .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 09054600

Weldment, Brake Pedal Right Hand

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 09057400

Weldment, Brake Pedal Left Hand

$

$

Not available

7

Gravely 07012600

Fitting-Lube, .25-28 x .256
(Superseded to 07001806)

$

$

Not available

8

Gravely 09054400

Shaft, Brake Pivot Short

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 09054500

Shaft, Brake Pivot Long

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 05517400

Bushing-Flange, .630 x 1.000 x .625

$6.99

$

In Stock, only 2 left!

0

11

Gravely 05701900

Ring Retaining External, .625 x .035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 18

0

12

Gravely 09053800

Rod, Brake

$

$

Not available

13

Gravely 06706900

Pin-Cotter, .09 x .75

$0.99

$

In Stock, Qty 5

0

14

Gravely 06707300

Pin-Cotter, .12 x .75

$0.99

$

In Stock, Qty 9

0

15

Gravely 08327500

Spring-Tension, .091 x .500 x 5.500

$

$

Not available

16

Gravely 06534700

Nut-,lam, .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

17

Gravely 08800400

Clevis, .38-24 Adjustable

$11.99

$

In Stock, only 1 left!

0

18

Gravely 06811900

Pin-Clevis, .375 x .948

$4.99

$

In Stock, Qty 5

0

19

Gravely 08938300

Plate, Brake

$

$

Not available

20

Gravely 08969800

Pedal, Brake

$

$

Not available

21

Gravely 06219800

Bolt-Round Head Square Neck .25-20 x 1.00
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06529700

Nut-Lock-Control, .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07527300

Pad, Pedal
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

24

Gravely 023539

Kit, Brake Shoe
(Superseded to 08530400)

$268.99

$

Usually ships in 4-12 days

0

25

Gravely 023508

Spring, Shoe Return
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0

26

059470

Hex Bolt, .31-18 x .75

$

$

Not available

27

Gravely 023506

Cam, Brake
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

28

Gravely 21510600

Plate, Back

$

$

Not available

29

Gravely 023509

Spring, Shoe Ret Box
(Superseded to 08530300)

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 023505

Arm, Cam Lever
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

31

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120368

Nut-Hex.312-24 Grade 2
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 021749

Plate, Brake Lock Backing
(Superseded to 08903200)

$

$

Not available

34

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

35

Gravely 120657

Screw-Machine .25-20 x 1.00
(Superseded to 06118100)

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 036808

Arm, Brake Lock

$

$

Not available
