790016 - Gravely Rapid XZ Hydraulic Cooler Kit Hydraulics Parts Diagram

Rapid XZ Hydraulic Cooler Kit

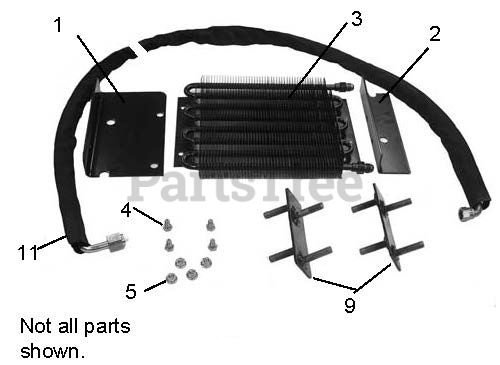

Hydraulics Parts Diagram

  • Title

1

Gravely 00967751

BRKT, COOLER MOUNT

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 00967651

BRKT, COOLER MOUNT

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 08856200

COOLER,OIL

$

$

Not available

4

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

5

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

6

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: NOT SHOWN

$1.49

$

In Stock, Qty 8

0

7

Gravely 00866951

BRACKET, TANK SHROUD (LH)

Note: NOT SHOWN

$37.99

$

Usually ships in 4-12 days

0

8

Gravely 00867051

BRACKET, TANK SHROUD (RH)

Note: NOT SHOWN

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 00968251

BRKT, OIL TANK RELOCATION

$

$

Not available

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: NOT SHOWN

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00968300

HOSE,HYD .5-26-0K F08O0-F06J9

$75.99

$

Usually ships in 4-12 days

0

12

Gravely 00968400

HOSE,HYD .5-18-OK F08O9-F06J9

Note: NOT SHOWN

$87.99

$

Usually ships in 4-12 days

0

13

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

Note: NOT SHOWN

$3.49

$

In Stock, only 2 left!

0
