79030 - Toro Cargo Carrier, TimeCutter Series Mower CARGO CARRIER ASSEMBLY Parts Diagram

Cargo Carrier, TimeCutter Series Mower

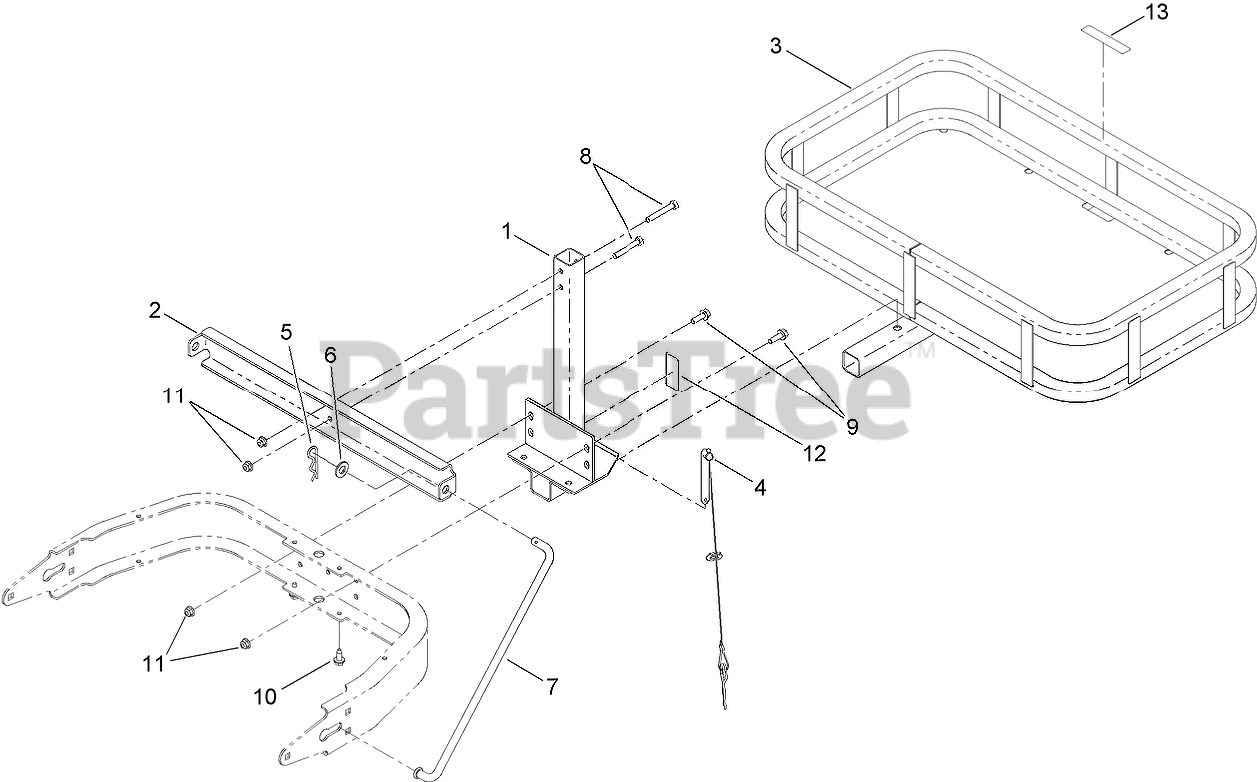

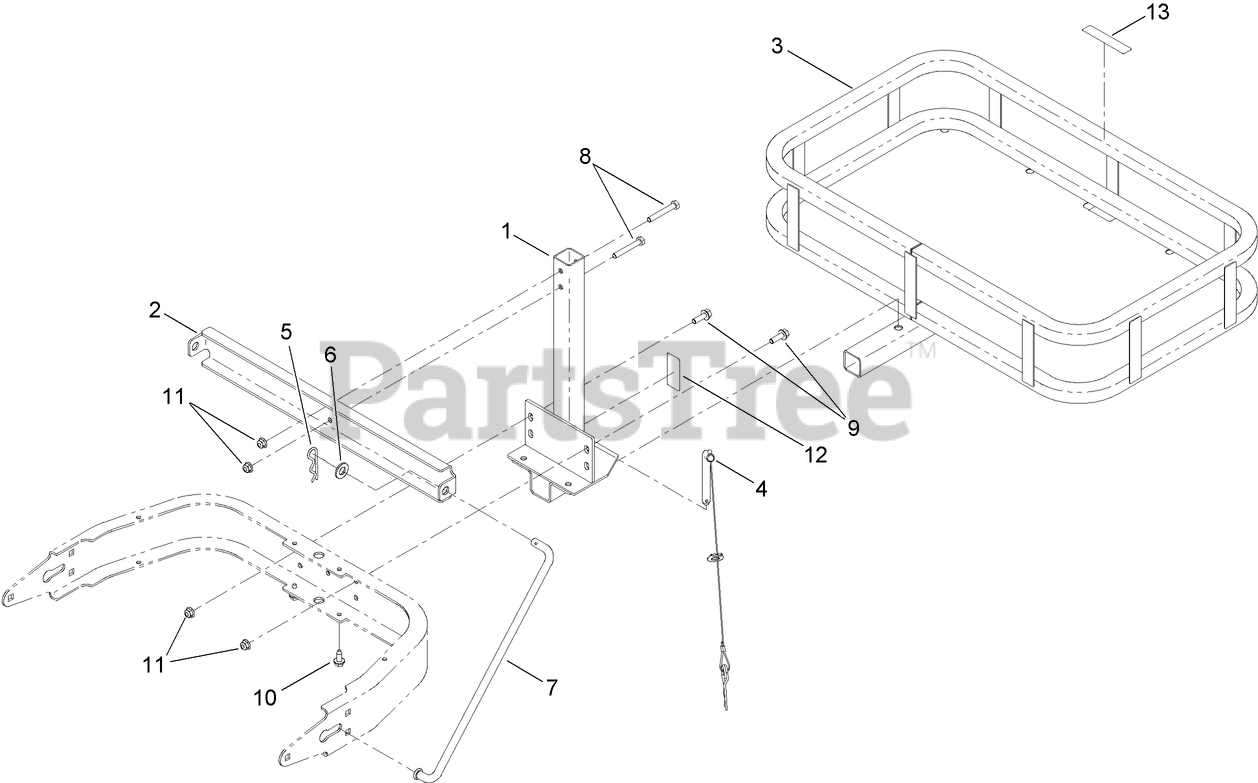

CARGO CARRIER ASSEMBLY Parts Diagram

  • Title

1

Toro 125-5550-03

MOUNT-TRAY

$128.99

$

Usually ships in 3-6 days

0

2

Toro 125-1768-03

BRACKET-SUPPORT

$57.99

$

Usually ships in 3-6 days

0

3

Toro 125-1779-05

TRAY-CARRIER

$

$

Not available

4

Toro 119-8970

PIN-ROPS

$33.99

$

In Stock, only 2 left!

0

5

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 119-8853

ROD-SUPPORT

$22.99

$

In Stock, only 2 left!

0

8

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 109-7076

DECAL

$8.49

$

Usually ships in 3-6 days

0

13

Toro 127-0051

DECAL-MAXIMUM WEIGHT

$

$

Currently unavailable
