790r (41BD790A034) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

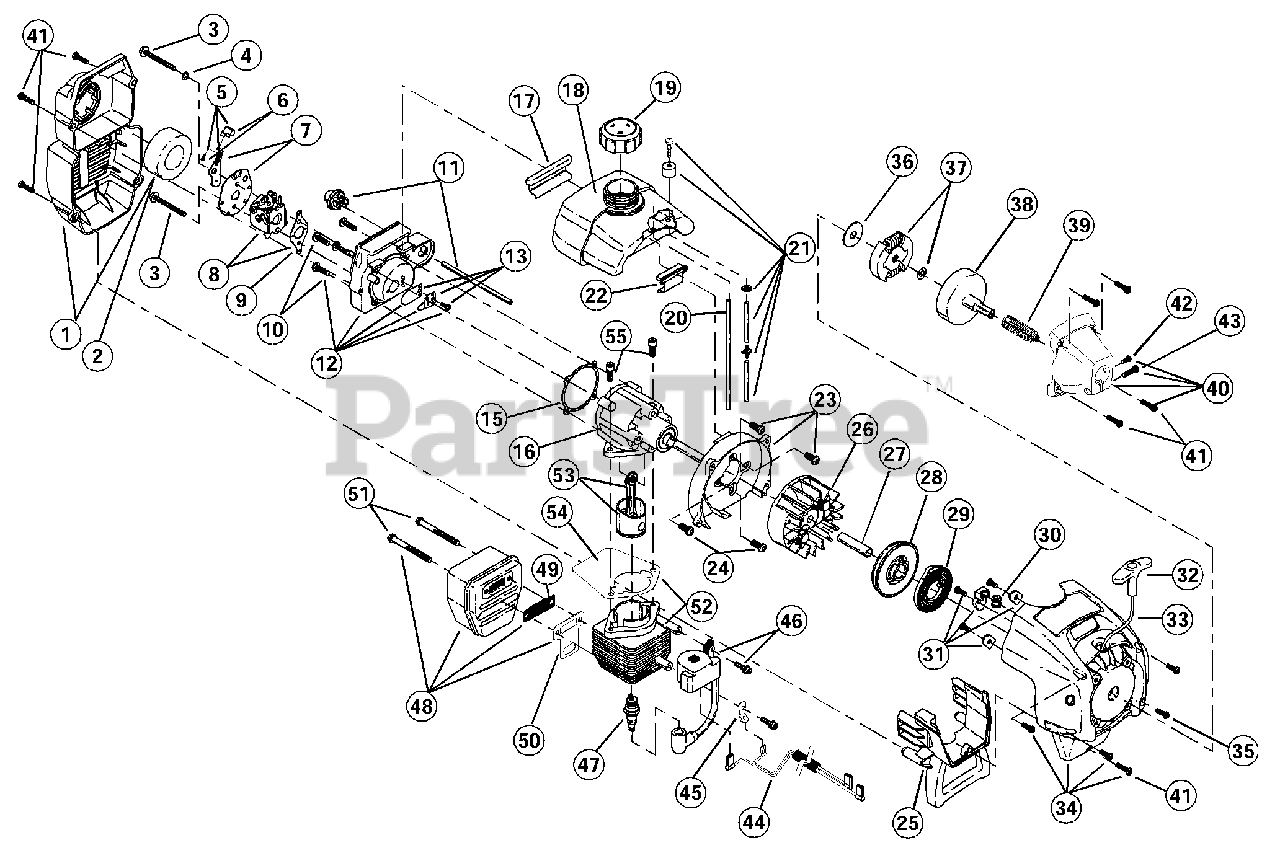

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly (includes 2 & 41)
(Superseded to 753-04511)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180352

Wavey Washer

$

$

Currently unavailable

5

MTD 791-182061

Choke Lever Assembly (includes 6)
(Superseded to 753-04418)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182060

Choke Lever and Plate (includes 5)
(Superseded to 753-04419)

$

$

Not available

8

MTD 791-182062

Carburetor Assembly W/Limiter Caps (includes 9 & 21)
(Superseded to 791-182875)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 791-182063

Carb Mount Assembly (includes 10)
(Superseded to 753-1196)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

15

MTD 791-612115

Carburetor Mount Gasket
(Superseded to 753-1208)

$15.99

$

In Stock, only 3 left!

0

16

MTD 791-182791

Crank Case Service Assembly (includes 10, 14 & 24)

$

$

Not available

17

MTD 791-612134

Rear Mounting Pad

$

$

Not available

18

MTD 791-181438

Fuel Tank Assembly (includes 19-21)

$

$

Not available

19

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$18.99

$

In Stock, Qty 18

0

20

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

21

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

22

MTD 791-145308

Front Mounting Pad

$

$

Not available

23

MTD 791-153520

Shroud Assembly

$

$

Not available

24

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

25

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

26

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

27

MTD 791-181065

Spacer

$

$

Not available

28

MTD 791-181597

Recoil Pulley Assembly
(Superseded to 753-04232)

$

$

Not available

29

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

30

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

34

MTD 791-181797

Starter Housing Assembly (includes 28-33 & 41)

$

$

Not available

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

37

MTD 791-181445

Clutch Rotor Assembly

$43.99

$

Usually ships in 3-6 days

0

38

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

39

MTD 791-612468

Spring

$

$

Not available

40

MTD 791-182797

Clutch Cover Assembly (includes 41-43)
(Superseded to 753-04889)

$19.99

$

Usually ships in 3-6 days

0

41

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

42

MTD 791-182345

Anti-Rotation Screw

$4.49

$

In Stock, only 2 left!

0

43

MTD 791-182519

Clamping Screw

$4.99

$

In Stock, Qty 20+

0

44

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

45

MTD 791-182800

Ground Tab
(Superseded to 791-611063)

$

$

Not available

46

MTD 791-181937

Module Assembly
(Superseded to 753-04125)

$

$

Not available

47

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

48

MTD 791-182066

Muffler Assembly (includes 49-51)
(Superseded to 753-05169)

$104.99

$

Usually ships in 3-6 days

0

49

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

50

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

51

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

52

MTD 791-181622

Cylinder Assembly (includes 54)
(Superseded to 753-04814)

$78.99

$

In Stock, only 1 left!

0

53

MTD 791-684449

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

54

MTD 791-610674

Cylinder Gasket

$3.99

$

Usually ships in 3-6 days

0

55

MTD 791-181870

Cylinder Bolt

$

$

Not available

MTD 791-180011

Engine Gasket Kit Item not shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro) Item not shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-180090

O.E.M. Carburetor Repair Kit (Zama) Item not shown

$55.99

$

Usually ships in 3-6 days

0

MTD 791-682052

Gasket Diaphragm Repair Kit (Walbro) Item not shown

$

$

Not available

MTD 791-180091

Gasket Diaphragm Repair Kit (Zama) Item not shown

$30.99

$

Usually ships in 3-6 days

0

MTD 791-180530

Piston Ring Item not shown

$

$

Not available

MTD 791-182792

Short Block Assembly (includes 10,14, 16, 24, 47, 51-54); Item not shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set Item not shown

$9.99

$

Usually ships in 3-6 days

0

MTD 791-610309

Crankcase Seal Item not shown

$16.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2) Item not shown

$10.99

$

In Stock, only 1 left!

0
