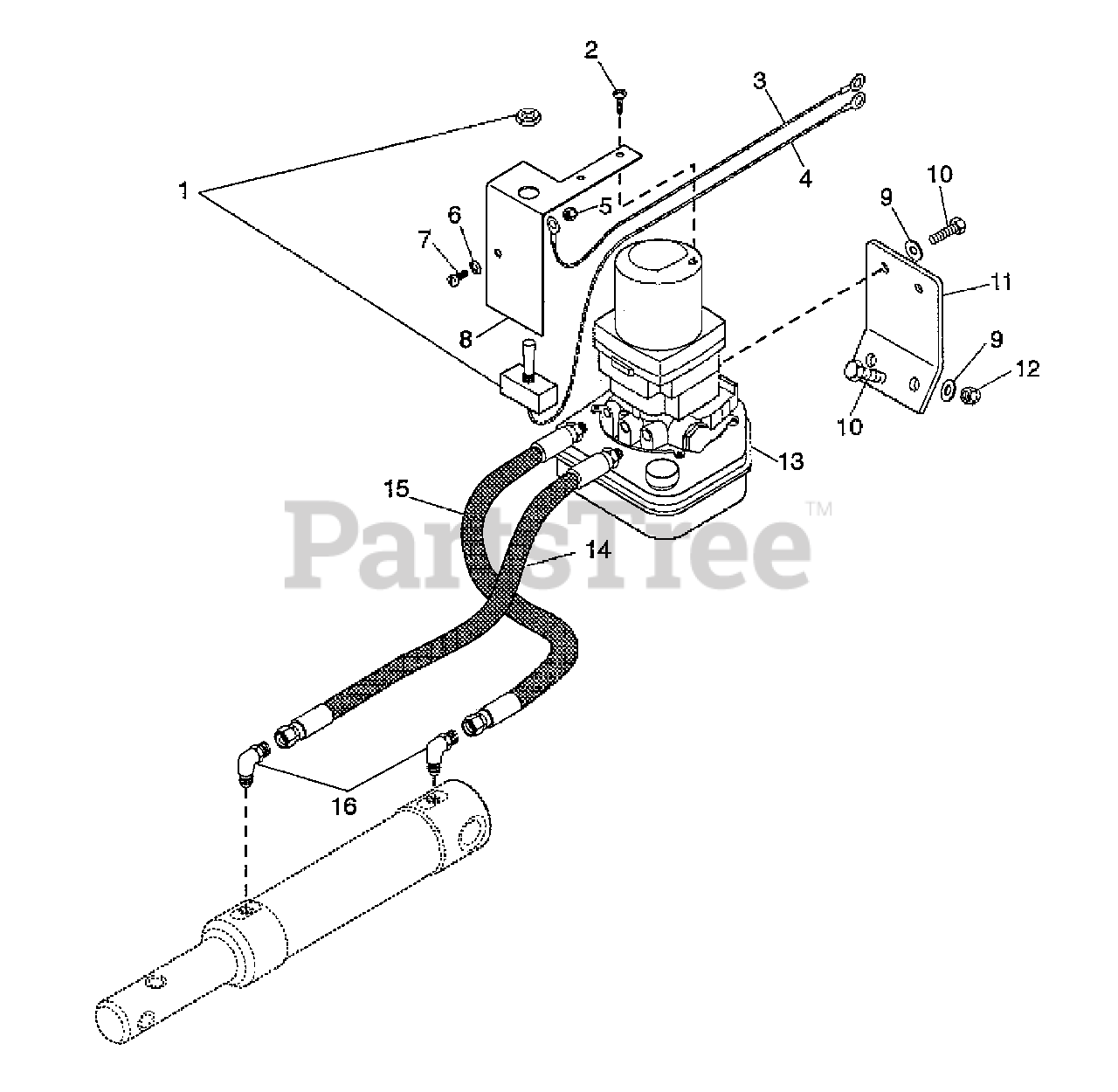

791001 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Hydraulic System Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

Hydraulic System Parts Diagram

  • Title

1

Gravely 03437900

Switch Assembly

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 07408500

Screw-Tapping 12-14 x .50

$

$

Not available

3

Gravely 09108600

Ground Wire Deck Lift Pump

$

$

Not available

4

Gravely 09106200

Power Wire, Deck Lift Pump

$

$

Not available

5

Gravely 06506600

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

In Stock, only 2 left!

0

6

Gravely 06424900

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

7

Gravely 06113500

Screw-Machine .25-20

$1.99

$

In Stock, only 3 left!

0

8

Gravely 09104700

Dash End Plate/Pump Bracket - Deck Lift
(Superseded to 09114000)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05915400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 09104000

Lift Pump Mounting Bracket

$

$

Not available

12

Gravely 06513500

Nut-Locking-Nylon .375-16
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

13

Gravely 08725000

Pump, Electric-Hydraulic

$1006.99

$

Usually ships in 4-12 days

0

14

Gravely 09221400

Assembly, Hose Pump to Cylinder

$40.99

$

Usually ships in 4-12 days

0

15

Gravely 09104100

Hose, Hydraulic, Deck Lift, .25 x 36

$

$

Not available

16

Gravely 08800700

Adapter 2503-4-4

$22.99

$

Usually ships in 4-12 days

0

Gravely 07710800

Decal, Cutting Head Treated

Note: N/S

$

$

Not available
