791001 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Lift Linkage Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

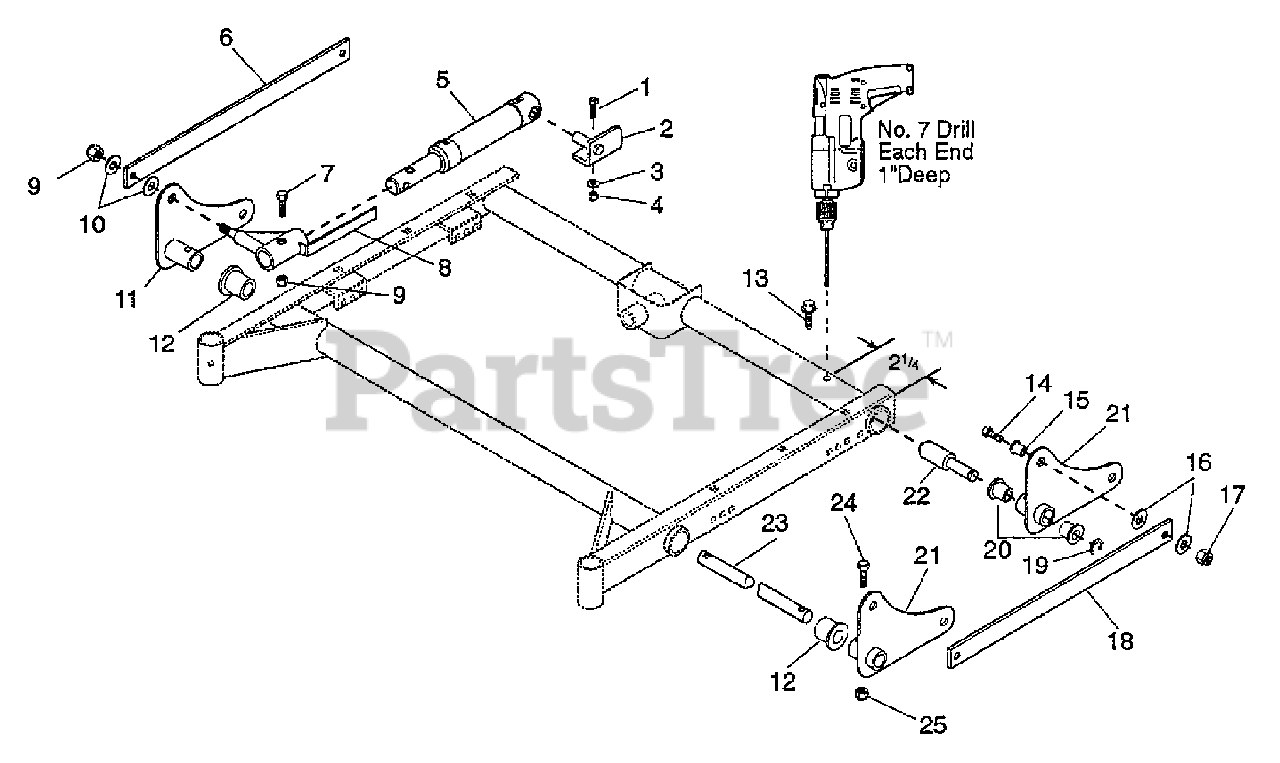

Lift Linkage Parts Diagram

  • Title

1

Gravely 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 17

0

2

Gravely 09103800

BKT, RAM BASE, PM-100/50 LIFT

$

$

Not available

3

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 08727500

CYL,HYD.

$

$

Not available

6

Gravely 09111500

LINK BAR, RH, DECK LIFT

$

$

Not available

7

Gravely 05923500

BLT-HEX .50-13X2.00 PL GR5
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 09103900

LIFT RAM TERMINAL PIN

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 09103300

LIFT ARM WELDMENT, RH

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

13

Gravely 07400600

SCR-TAP .250-20X.50 HH HT A

$

$

Not available

14

Gravely 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.99

$

In Stock, Qty 11

0

15

Gravely 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

18

Gravely 09103500

LINK BAR, LH, DECK LIFT

$

$

Not available

19

Gravely 05707400

RG-RTNG-EXT .750X.050

$2.99

$

In Stock, Qty 20+

0

20

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

21

Gravely 09103600

LIFT ARM WELDMENT L.H.

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 09103400

STUB SHAFT, 50" LIFT

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 09101900

X-SHAFT 50 DECK LIFT

$

$

Not available

24

Gravely 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$3.49

$

In Stock, Qty 10

0

25

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

Gravely 07843800

DECAL, PM-100 DK LFT, CUT HGHT

Note: N/S

$

$

Not available
