791001 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Lift Linkage Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

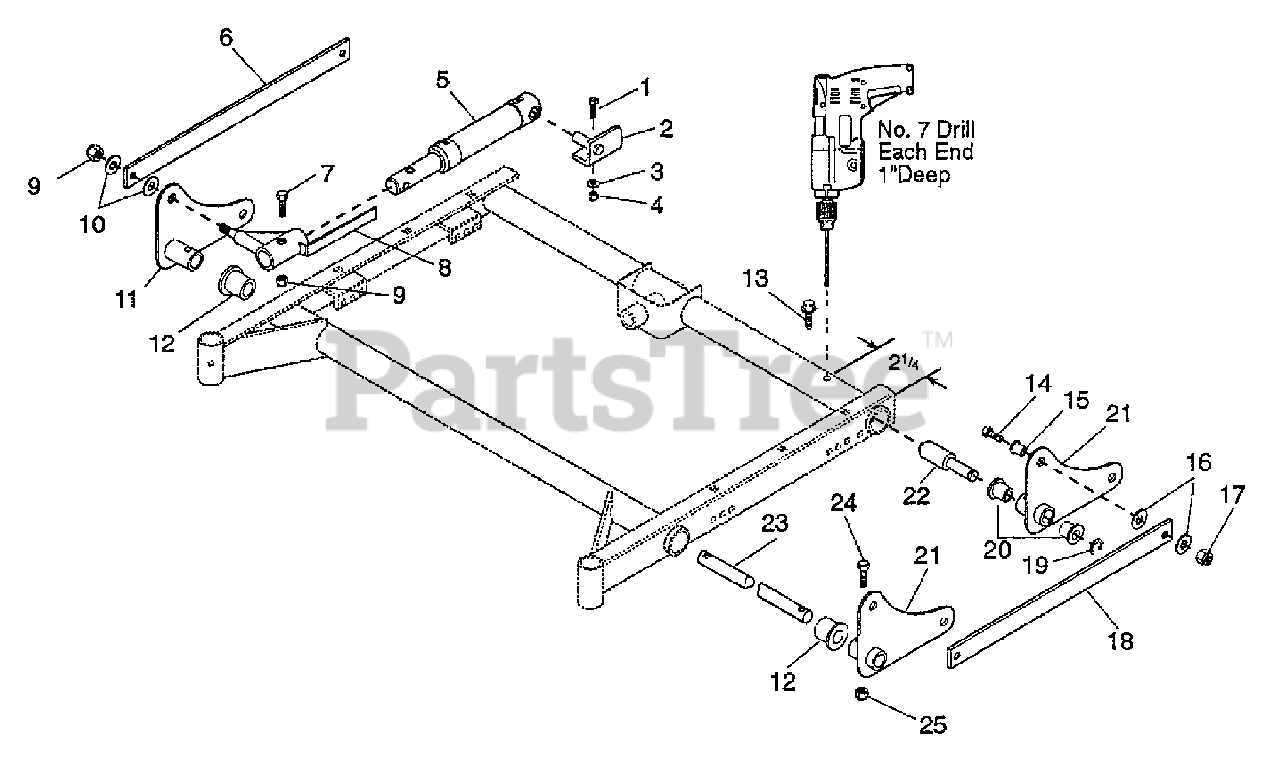

Lift Linkage Parts Diagram

  • Title

1

Gravely 05915100

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

2

Gravely 09103800

Deck Lift Rear Deck

$

$

Not available

3

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

5

Gravely 08727500

Cylinder, Hydraulic

$

$

Not available

6

Gravely 09111500

Link Bar, Right Hand, Deck Lift

$

$

Not available

7

Gravely 05923500

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 09103900

Lift Ram Terminal Pin

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06512900

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06540600)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06412000

Washer-Flat-Steel .563x1.375x.109
(Superseded to 06442000)

$3.49

$

In Stock, Qty 15

0

11

Gravely 09103300

Lift Arm Weldment

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

$10.99

$

In Stock, Qty 20+

0

13

Gravely 07400600

Screw-Tapping 250-20 x.50

$

$

Not available

14

Gravely 05913400

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05947500)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05514900

Bushing-Flange .325 x .500 x .513 x .875

$3.99

$

In Stock, Qty 5

0

16

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

17

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 09103500

Link Bar-Deck Lift

$

$

Not available

19

Gravely 05707400

Ring-Retaining-External .750 x .050

$2.49

$

In Stock, only 3 left!

0

20

Gravely 05518400

Bushing-Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

21

Gravely 09103600

Lift Arm Weldment, Left Hand

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 09103400

Stub Shaft, 50" Lift

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 09101900

X-Shaft 50" Deck Lift

$

$

Not available

24

Gravely 05912800

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

25

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

Gravely 07843800

Decal, PM-100150 Deck Lift

Note: N/S

$

$

Not available
