791002 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Electrical Diagram Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

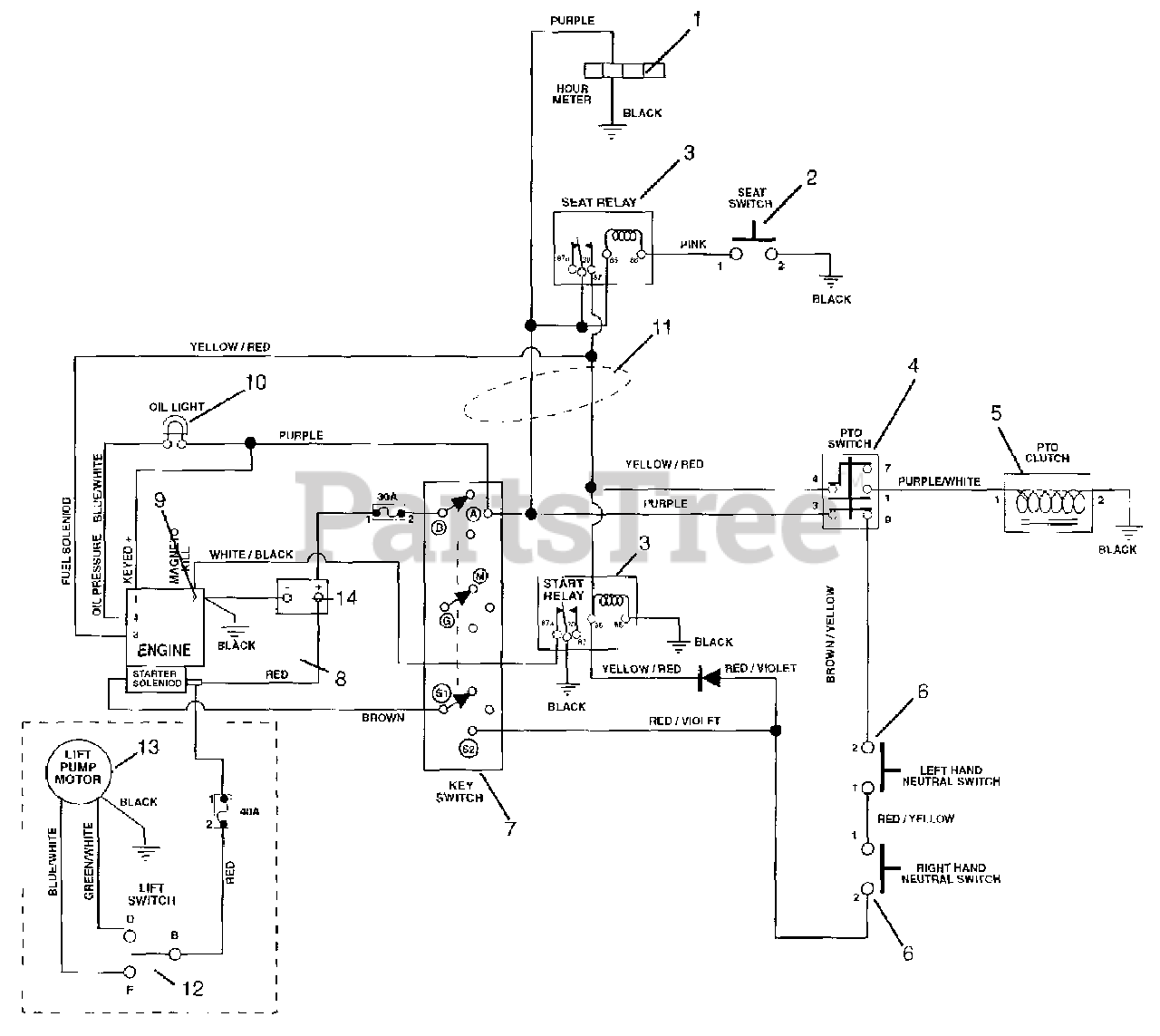

Electrical Diagram Parts Diagram

  • Title

1

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

2

Gravely 03654200

Switch-Seat

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

Switch-Clutch wl Retainer Ring

$23.99

$

In Stock, Qty 16

0

5

Gravely 03357900

Clutch-Electric Warner

$491.99

$

Usually ships in 4-12 days

0

6

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

7

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 9

0

8

Gravely 02743300

Start Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 050383

Cable-Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

10

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 09113700

Harness-Wiring 18 HP Kohler

$

$

Not available

12

Gravely 03437900

Switch Assembly

$71.99

$

Usually ships in 4-12 days

0

13

Gravely 08725000

Pump-Electric Hydraulic

$1006.99

$

Usually ships in 4-12 days

0

14

Gravely 09206000

Battery

$

$

Not available
