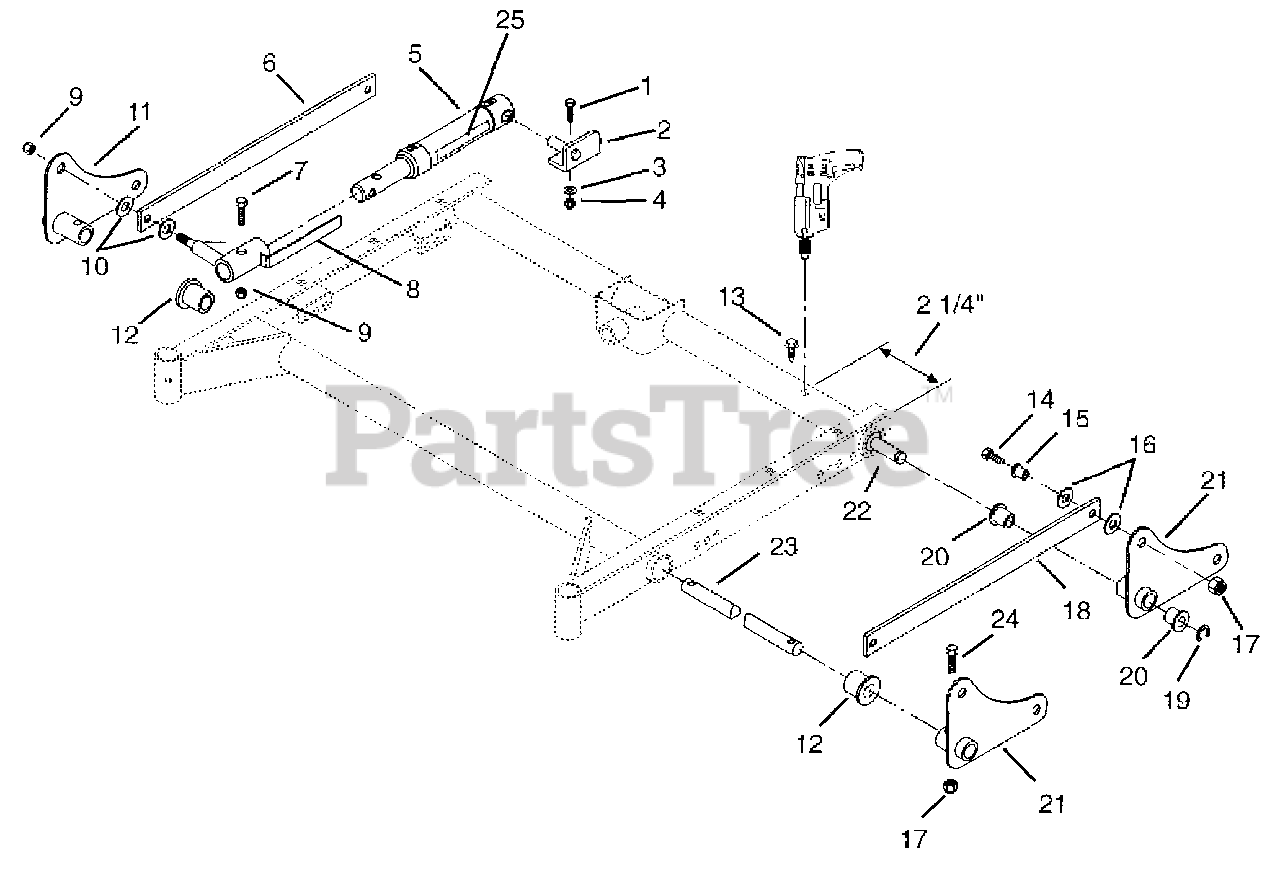

791002 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Mower Lift System Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

Mower Lift System Parts Diagram

  • Title

1

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

2

Gravely 09103800

Deck Lift-Rear Deck Bracket-Left Hand

$

$

Not available

3

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 031284

Cylinder-Hydraulic
(Superseded to 08727500)

$

$

Not available

6

0911500

Link Bar-Right Hand Deck Lift

$

$

Not available

7

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 09103900

Lift Ram-Terminal Pin

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06418100

Washer-Hardened-Steel-Thrust .515 x .97 x .062

$3.99

$

In Stock, only 4 left!

0

11

Gravely 09103300

Lift-Arm-Weldment

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

13

Gravely 07412000

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 05514900

Bushing-Flange .325 x .500 x .513 x .875

$3.99

$

In Stock, Qty 5

0

16

064358

Washer-Flat-Steel .312 x .734 x .065 (19527)

Note: (19527)

$

$

Not available

17

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09103500

Link Bar-Deck Lift

$

$

Not available

19

Gravely 036278

Ring-Retaining-External .750 x .050
(Superseded to 05707400)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 09103600

Lift-Arm-Weldment-Left Hand

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 09114502

Shaft-Stub 50" Lift

$

$

Not available

23

Gravely 09101900

Cross-Shaft 50" Deck Lift

$

$

Not available

24

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

25

Gravely 07843800

Decal-Deck Lift

$

$

Not available
