79102 - Toro 44" Vacuum Bagger (SN: 069000001 - 069999999) (1996) HOPPER & CHUTE ASSEMBLY Parts Diagram

44" Vacuum Bagger

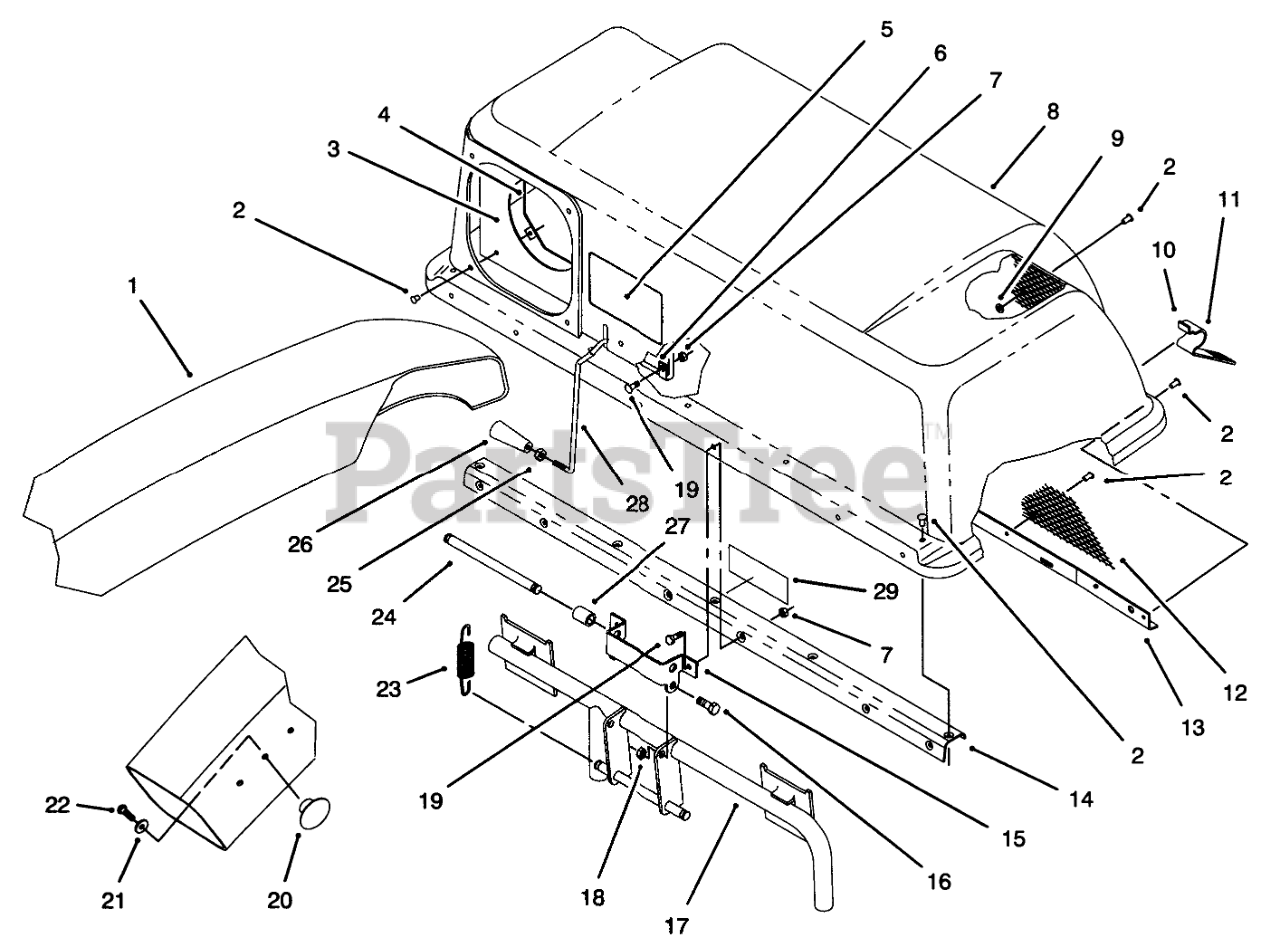

HOPPER & CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 79-7240

CHUTE-DISCHARGE

$408.99

$

Usually ships in 3-6 days

0

2

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Toro 117239

SEAL-CHUTE

$81.99

$

Usually ships in 3-6 days

0

4

Toro 114966

CLAMP-SEAL

$70.99

$

Usually ships in 3-6 days

0

5

Toro 116347

DECAL

$17.99

$

Usually ships in 3-6 days

0

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 92-1734

TOP-BAGGER

$299.99

$

Usually ships in 3-6 days

0

9

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

10

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$12.99

$

In Stock, only 4 left!

0

11

Toro 115880

GRIP

$5.49

$

In Stock, Qty 6

0

12

Toro 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 4 left!

0

13

Toro 92-1736

Screen Support
(Superseded to 92-1736-03)

$51.99

$

Usually ships in 3-6 days

0

14

Toro 88-9570

Stiffener-Bagger (Incl. Ref. #29)

$97.99

$

Usually ships in 3-6 days

0

15

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0

16

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$256.99

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 233-68

KNOB

$7.49

$

Usually ships in 3-6 days

0

21

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

22

Toro 32144-8

SCREW-PPHTF

$5.99

$

Usually ships in 3-6 days

0

23

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

24

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

25

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

26

Toro 118320

HANDLE-TAPERED

$

$

Not available

27

Toro 9790944

Spacer

$2.99

$

In Stock, only 2 left!

0

28

Toro 114969

FEELER-FILL, BAG

$

$

Not available

29

Toro 92-7113

DECAL-CAUTION

$

$

Not available
