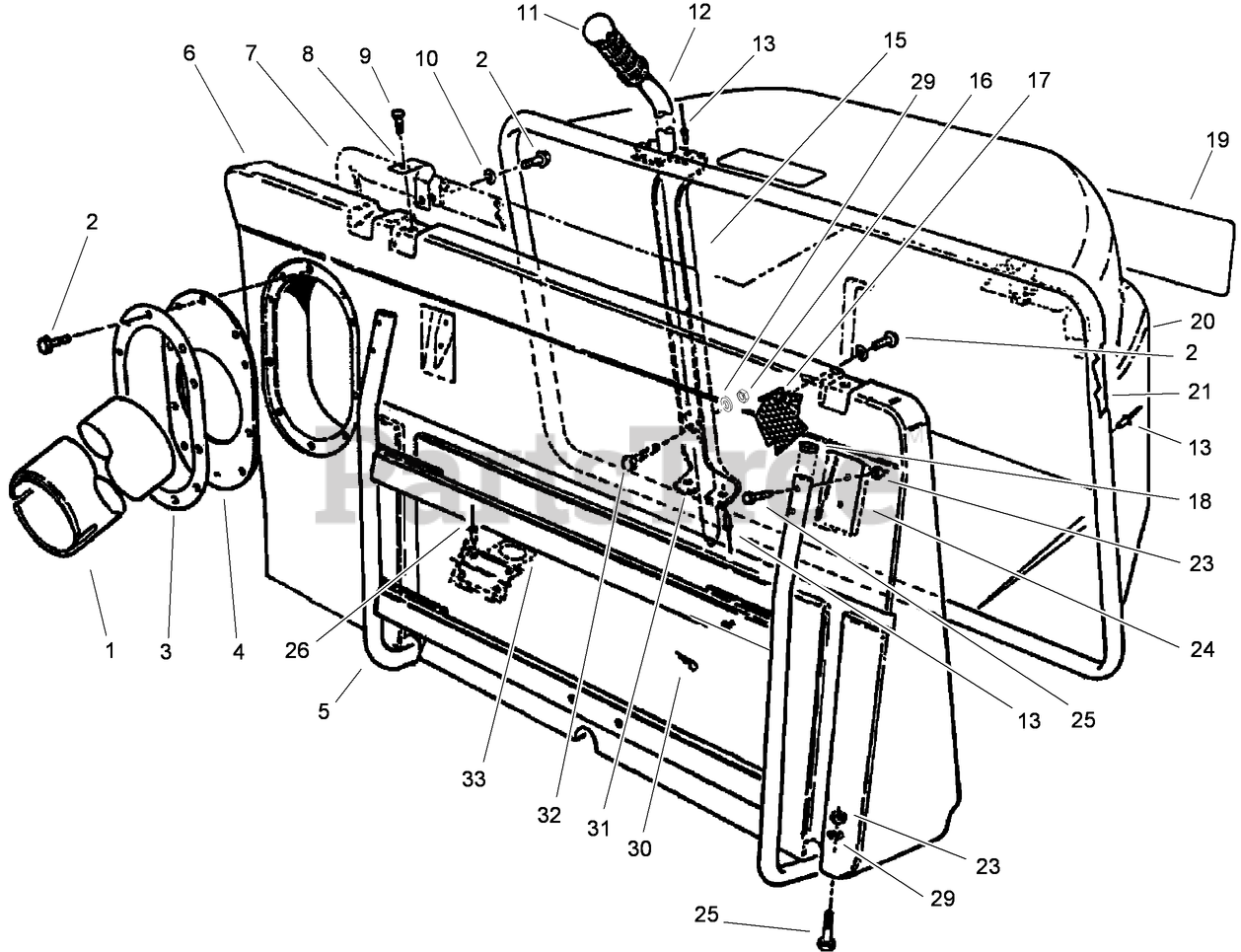

79117 - Lawn-Boy Easy Empty Bagger for 38" XL Lawn Tractor (SN: 311000001 - 311999999) (2011) > Parts Diagrams (3) > EASY-EMPTY GRASS CATCHER ASSEMBLY

DUCT-BAGGER

Part# 94-6030

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

SCREW-HWHTF

Part# 32144-34

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

RING-RETAINING

Part# 28-7760

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

RING-RETAINER, RUBBER

Part# 28-7770

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

FRAME

Part# 74-3320-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

BAG-FRONT

Part# 72-2510

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

SEAL-BAG

Part# 72-2640

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

BRACKET-HINGE

Part# 72-2540-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

SCREW-HH

Part# 321-39

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

WASHER-FLAT

Part# 3256-61

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

GRIP-HANDLE

Part# 235-21

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

HANDLE-DUMP

Part# 72-2660

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

RIVET-POP

Part# 3269-4

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

BRACKET-CHANNEL, DUMP HANDLE

Part# 72-2630-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

SCREEN-BAG

Part# 28-7840-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

PLUG

Part# 2410-70

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

DECAL-BAG, EASY EMPTY

Part# 92-1754

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

BASKET-GRASS

Part# 72-2520

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

FRAME-BASKET, GRASS

Part# 72-2650-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

PLATE-BACKUP

Part# 72-2620-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

SCREW-HH

Part# 321-10

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

RIVET-BLIND

Part# 3290-282

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

WASHER-FLAT

Part# 3256-55

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

GUIDE-HANDLE, DUMP

Part# 72-2550

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

SCREW-HH

Part# 321-11

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

LATCH

Part# 72-2530-03

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

BAGGER CHUTE ASM

Part# 94-6036

Note: Not illustrated

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days
