79150 - Lawn-Boy 42" Snow Blade for XL Lawn Tractor (SN: 005900001 - 005999999) (1995) BLADE ASSEMBLY Parts Diagram

42" Snow Blade for XL Lawn Tractor

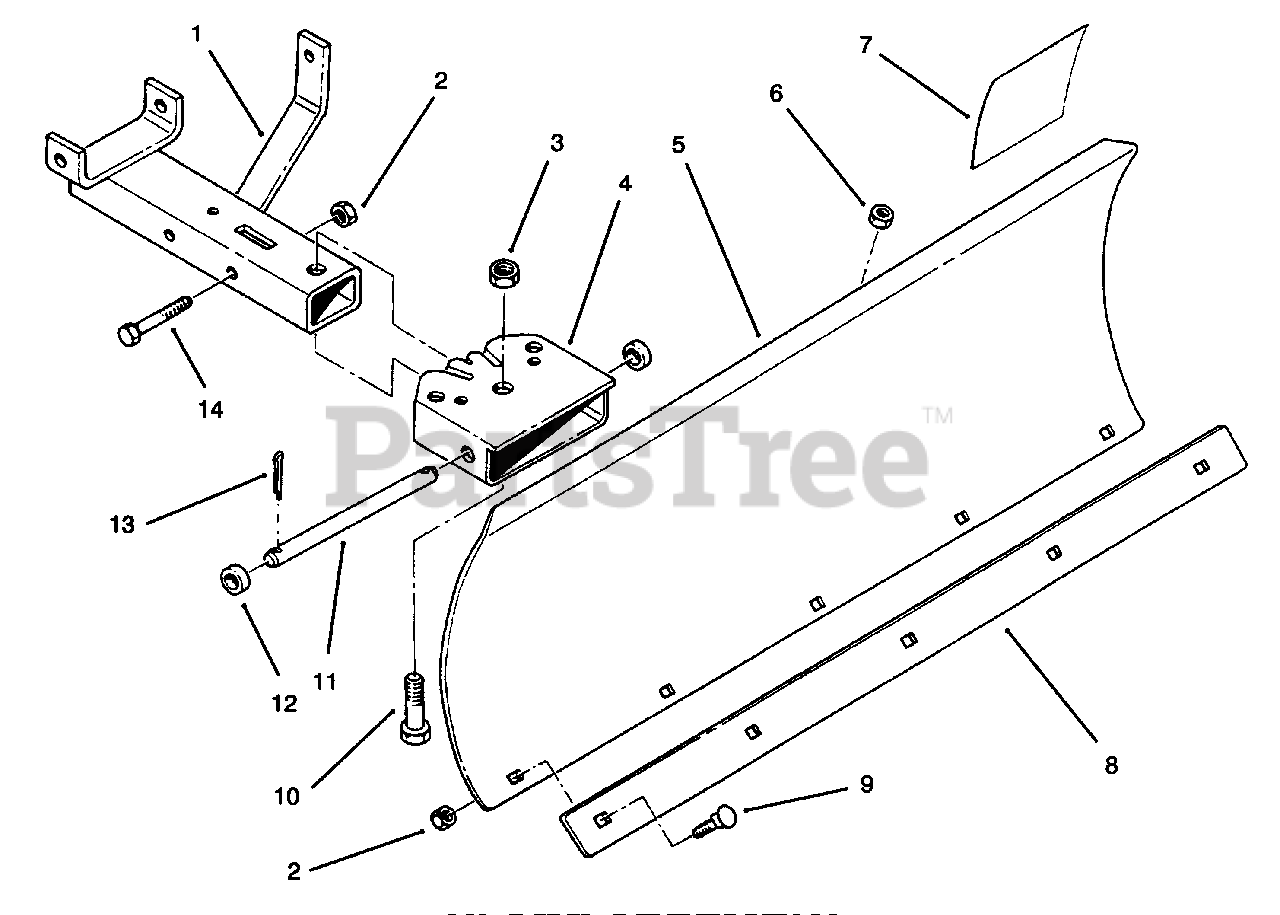

BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-6045

Frame
(Superseded to 92-6045-03)

$

$

Not available

2

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-15

Nut-Lock

$2.99

$

In Stock, Qty 9

0

4

Lawn-Boy 92-6043

Quadrant
(Superseded to 92-6043-03)

$

$

Not available

5

Lawn-Boy 92-6037

Blade
(Superseded to 92-6037-03)

$

$

Not available

6

Lawn-Boy 3218-3

Nut-Jam

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 88-1000

Decal-Danger

$

$

Not available

8

Lawn-Boy 92-6034

Plate
(Superseded to 92-6034-03)

$80.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3231-1

Bolt-Carriage

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3216-2

Screw-Hex Hd. Cap

$

$

Not available

11

Lawn-Boy 4564

Rod-Lower Pivot

$34.99

$

Usually ships in 3-6 days

0

12

$13.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3272-11

Pin-Cotter

$1.49

$

In Stock, Qty 10

0

14

Lawn-Boy 323-15

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 20+

0
