79150 - Lawn-Boy 42" Snow Blade for XL Lawn Tractor (SN: 005900001 - 005999999) (1995) HANDLE ASSEMBLY Parts Diagram

42" Snow Blade for XL Lawn Tractor

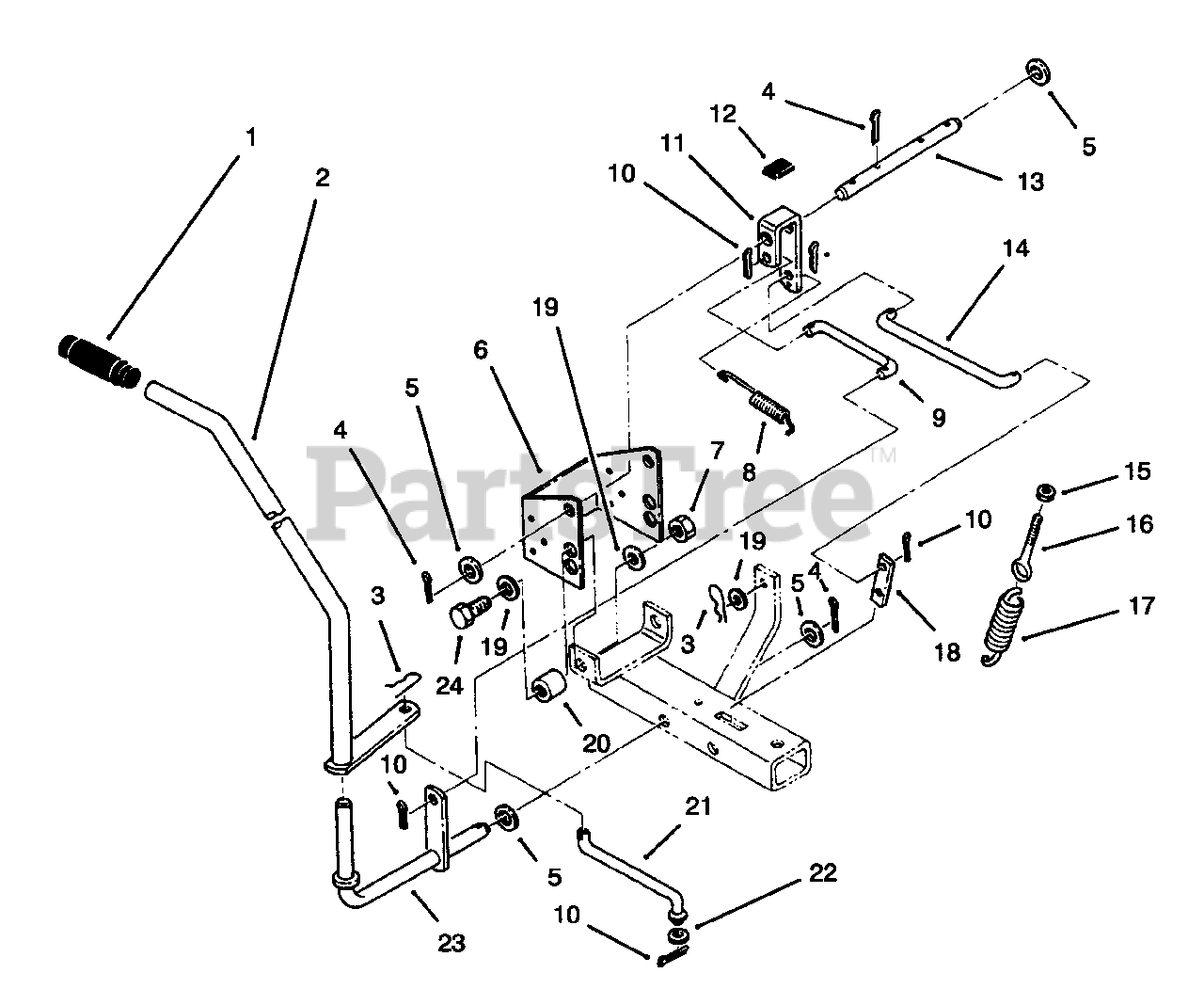

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-6039

Handle
(Superseded to 92-6039-03)

$

$

Not available

3

Lawn-Boy 933512

Pin-Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 3272-12

Pin-Cotter

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3256-28

Washer-Flat

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 88-0910

Brace-Mounting

$147.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 3296-23

Nut-Lock

$1.49

$

In Stock, Qty 20+

0

8

$23.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 108749

Rod-Bellcrank

$

$

Not available

10

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-6041

Bellcrank
(Superseded to 92-6041-03)

$

$

Not available

12

Lawn-Boy 88-1010

Pad-Rubber

$6.49

$

Usually ships in 3-6 days

0

13

$46.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 108747

Rod-Latch

$

$

Not available

15

Lawn-Boy 3218-3

Nut-Jam

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 100653

Eyebolt

$22.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 4629

Spring

$70.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-6038

Latch
(Superseded to 92-6038-03)

$

$

Not available

19

Lawn-Boy 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

20

$13.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 92-6042

Pivot-Handle
(Superseded to 92-6042-03)

$

$

Not available

24

Lawn-Boy 325-6

Screw-Hex Hd. Cap

$3.49

$

Usually ships in 3-6 days

0
