79190 - Toro 48" Recycler Kit for 260, 300, 5xi Tractors (1997 & Before) BAFFLE & KICKER ASSEMBLY Parts Diagram

48" Recycler Kit for 260, 300, 5xi Tractors

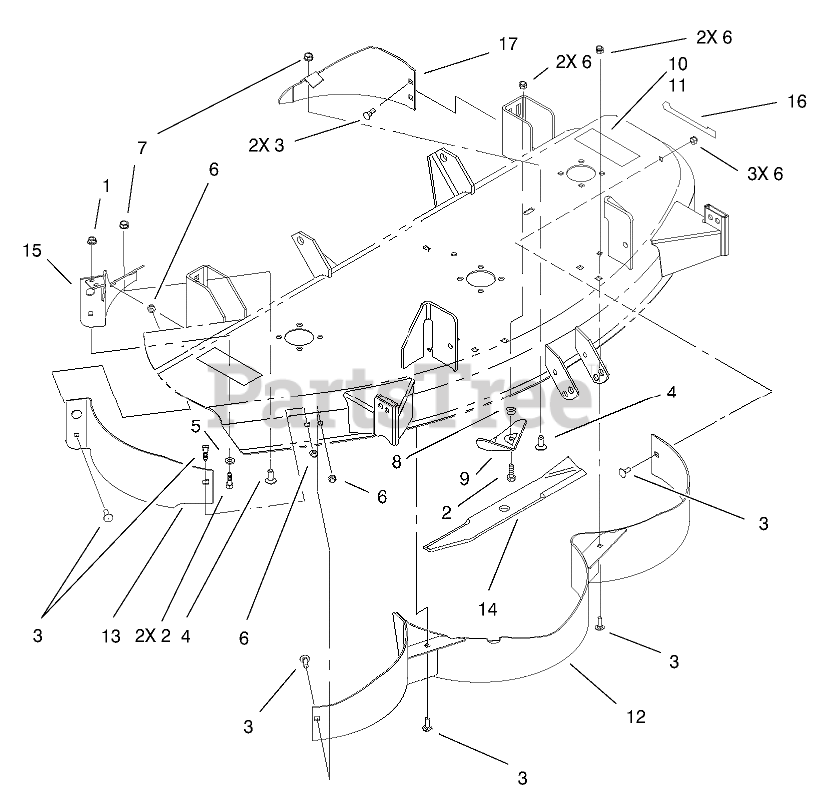

BAFFLE & KICKER ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

9

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

11

Toro 93-7317

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

12

Toro 94-9708-03

BAFFLE-DISCHARGE

$

$

Not available

13

Toro 94-9710-03

Baffle-Front

$

$

Not available

14

Toro 94-9719

Blade-16" (Only On: 78364)

$

$

Currently unavailable

15

Toro 94-9759-03

WA-REAR BAFFLE RH (BLACK)

$240.99

$

Usually ships in 3-6 days

0

16

Toro 94-9761

DECAL-RECYCLER

$

$

Not available

17

Toro 94-9765-03

WA-REAR BAFFLE LH (BLACK)

$

$

Not available
