79200 - Toro 38" Rear Bagger (SN: 039000001 - 039999999) (1993) BAG & FRAME ASSEMBLY Parts Diagram

38" Rear Bagger

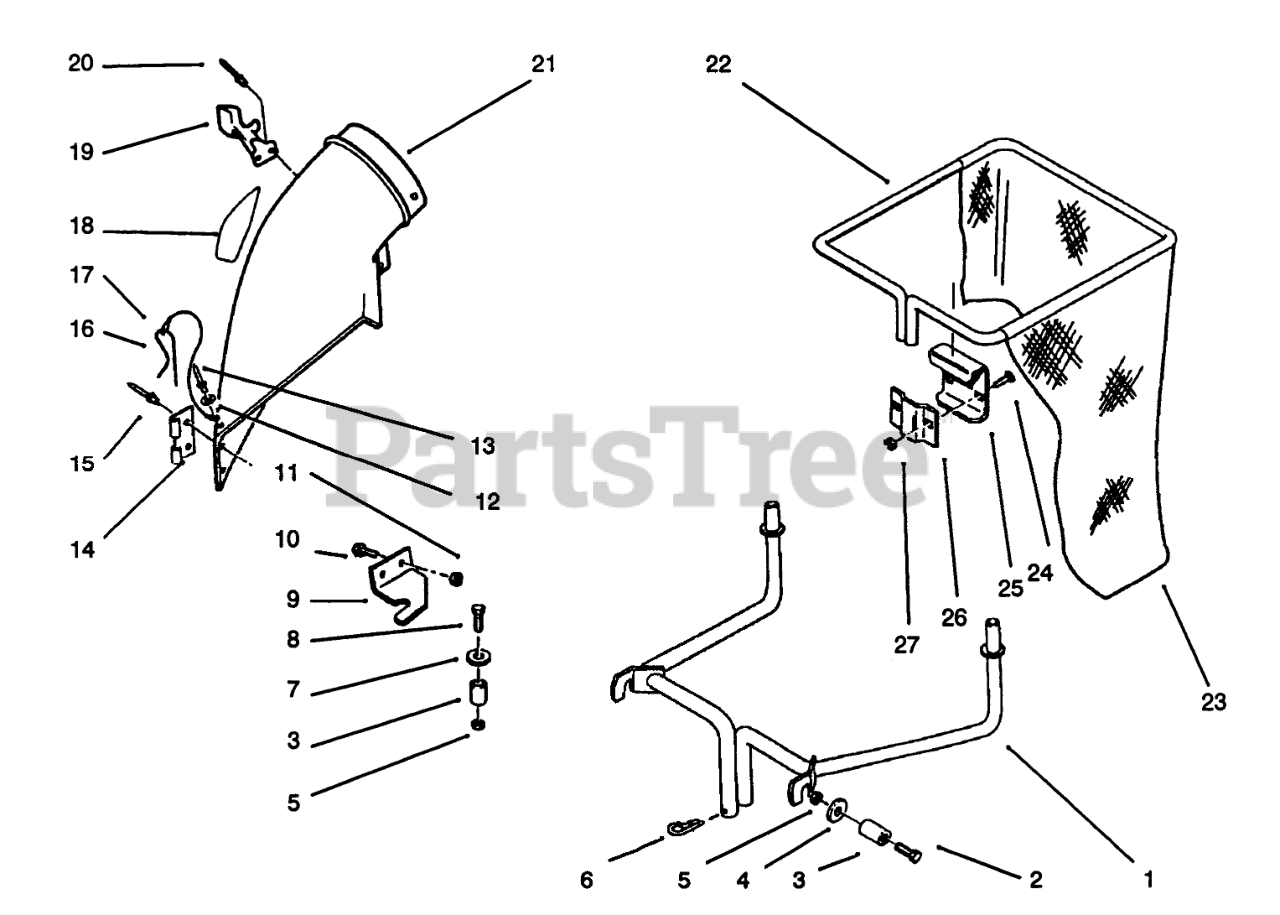

BAG & FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 78-8600

Bracket-Quick Attach
(Superseded to 78-8600-03)

$433.99

$

Usually ships in 3-6 days

0

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

4

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 12

0

7

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 120312

LATCH-BAGGER ELBOW

$11.99

$

Usually ships in 3-6 days

0

10

Toro 911460

Bolt
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-49

NUT-LOCK, NI

$14.99

$

In Stock, only 4 left!

0

13

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

14

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$24.99

$

Usually ships in 3-6 days

0

15

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, Qty 6

0

16

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

In Stock, only 2 left!

0

17

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

18

Toro 549220

Decal-Danger

$

$

Currently unavailable

19

Toro 57-4670

Latch-38"
(Superseded to 117344)

$35.99

$

In Stock, Qty 5

0

20

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, only 4 left!

0

21

Toro 62-7800

Chute Assembly (Incl. Ref. #14-20)

$430.99

$

Usually ships in 3-6 days

0

22

Toro 114972

Bag Frame
(Superseded to 114972-03)

$111.99

$

Usually ships in 3-6 days

0

23

Toro 114971

Bag
(Superseded to 93-1623)

$79.99

$

In Stock, only 1 left!

0

24

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 114973

Bag Hanger
(Superseded to 114973-03)

$25.99

$

In Stock, Qty 5

0

26

Toro 114974

Clamp
(Superseded to 114974-03)

$14.99

$

Usually ships in 3-6 days

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Toro 92-1733

Loose Parts (Incl. Ref. #5, 7, 8 10 & 16)

Note: Not illustrated

$

$

Not available
