79200 - Toro 38" Rear Bagger (SN: 039000001 - 039999999) (1993) COVER & CHUTE ASSEMBLY Parts Diagram

38" Rear Bagger

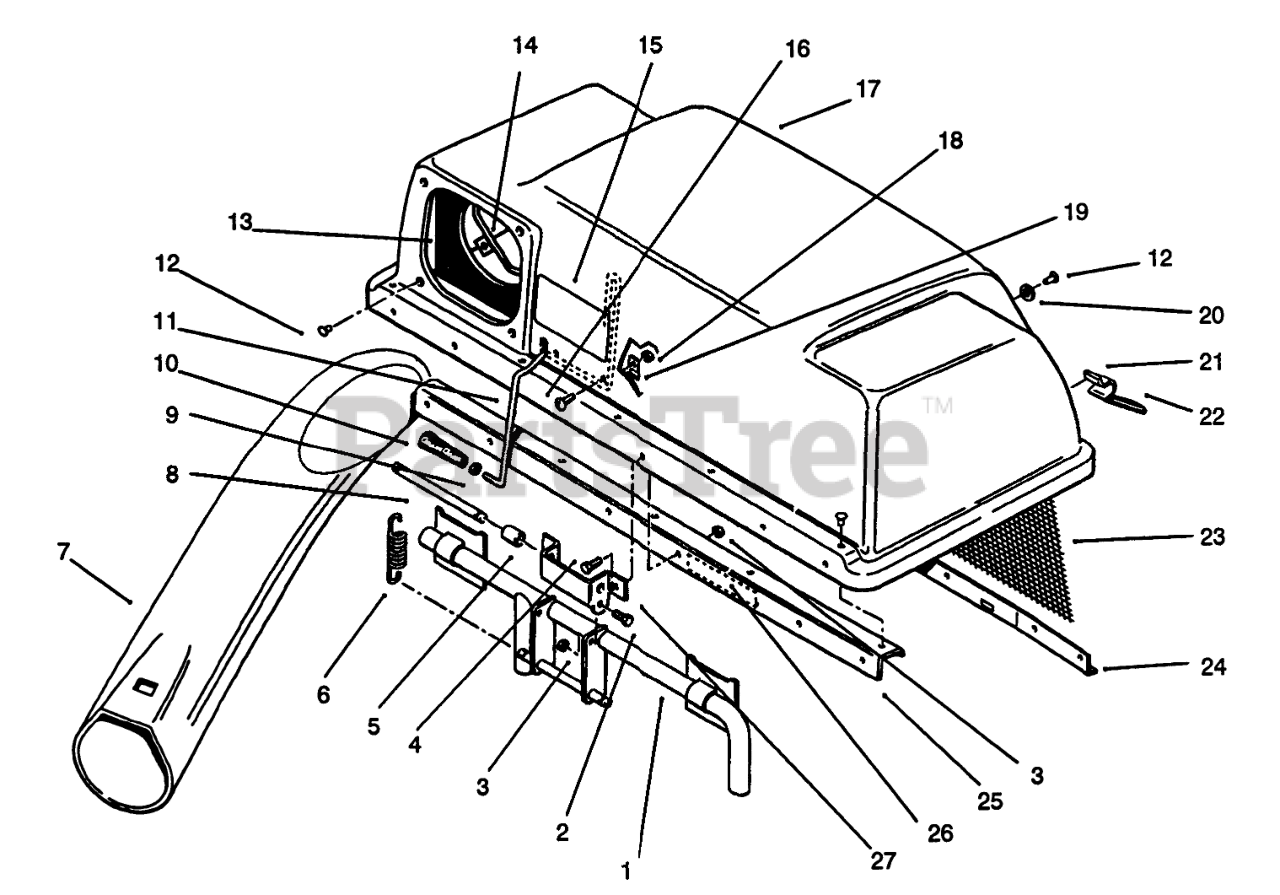

COVER & CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$256.99

$

Usually ships in 3-6 days

0

2

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

5

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

6

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

7

Toro 78-8770

CHUTE-BAGGER

$

$

Not available

8

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

9

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

10

Toro 118320

HANDLE-TAPERED

$

$

Not available

11

Toro 114969

FEELER-FILL, BAG

$

$

Not available

12

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

13

Toro 117239

SEAL-CHUTE

$81.99

$

Usually ships in 3-6 days

0

14

Toro 114966

CLAMP-SEAL

$70.99

$

Usually ships in 3-6 days

0

15

Toro 116347

DECAL

$17.99

$

Usually ships in 3-6 days

0

16

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-1734

TOP-BAGGER

$299.99

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 116130

Clip
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

20

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 15

0

21

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$12.99

$

In Stock, only 4 left!

0

22

Toro 115880

GRIP

$5.49

$

In Stock, Qty 6

0

23

Toro 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 4 left!

0

24

Toro 92-1735

Screen Support

$

$

Not available

25

Toro 114964

Bagger-Stiffener
(Superseded to 88-9570)

$97.99

$

Usually ships in 3-6 days

0

26

Toro 116004

DECAL-CAUTION

$

$

Not available

27

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0

Toro 706360

Loose Parts (Incl. Ref. #9-11, 16, 18 & 19 )

Note: Not illustrated

$

$

Not available

Toro 79-7410

Decal
(Superseded to 92-7113)

$

$

Not available
