792005 - Gravely 50" Deck Mulching Kit for PM100Z, PM200Z Mulching Kit 50", 60" And 72" Parts Diagram

50" Deck Mulching Kit for PM100Z, PM200Z

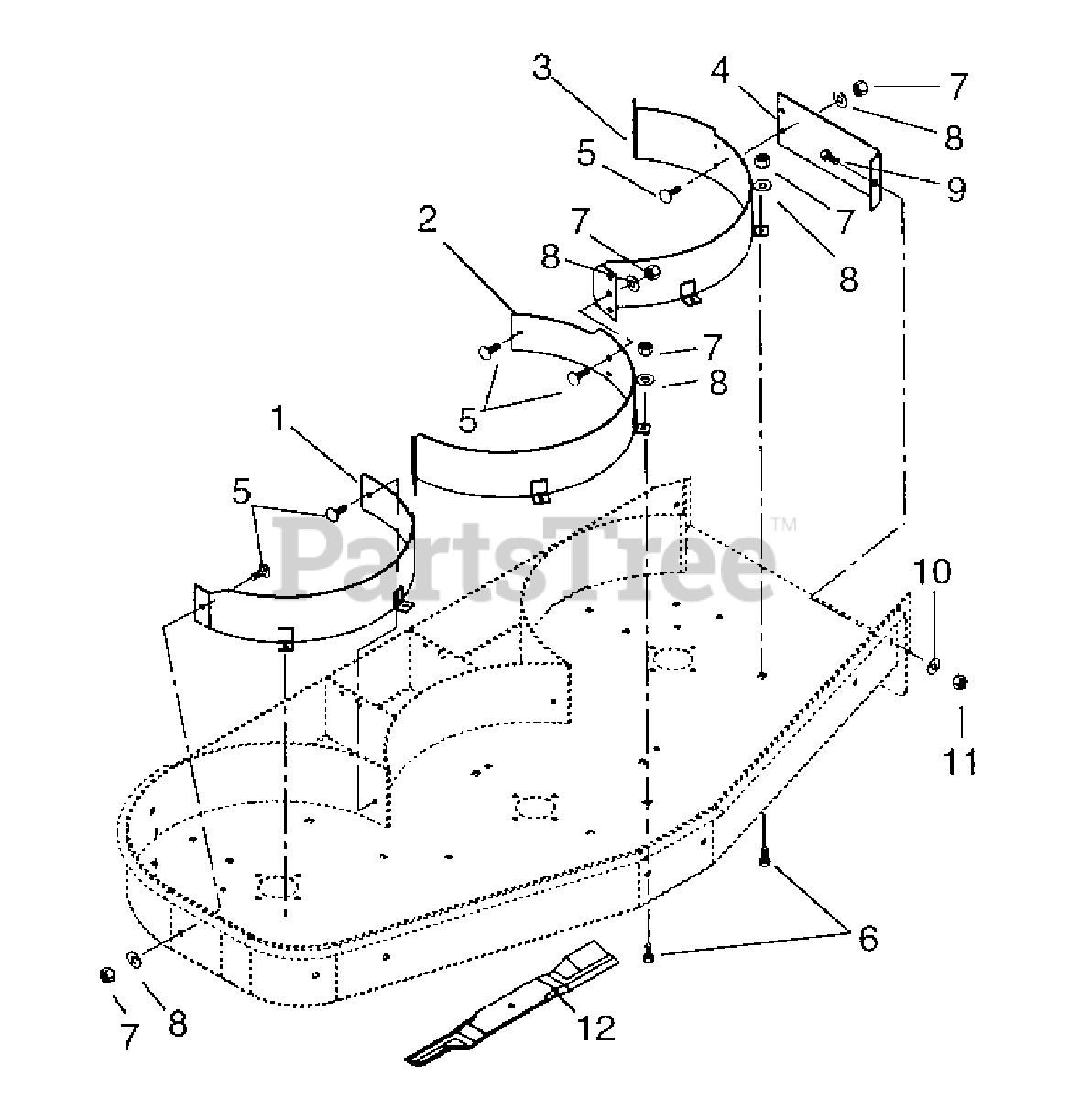

Mulching Kit 50", 60" And 72" Parts Diagram

  • Title

1

Gravely 09245551

Baffle, Weldment Left (50")

Note: (50")

$83.99

$

Usually ships in 4-12 days

0

1

Gravely 09243851

Baffle, Weldment Left (60")

Note: (60")

$86.99

$

Usually ships in 4-12 days

0

1

Gravely 09254851

Baffle, Weldment Left (72")

Note: (72")

$

$

Not available

2

Gravely 09245651

Baffle, Weldment Center (50")

Note: (50")

$

$

Not available

2

Gravely 09243951

Baffle, Weldment Center (60")

Note: (60")

$109.99

$

Usually ships in 4-12 days

0

2

Gravely 09254951

Baffle, Weldment Center (72")

Note: (72")

$

$

Not available

3

Gravely 09245751

Baffle, Mulching Right (50")

Note: (50")

$

$

Not available

3

Gravely 09244051

Baffle, Mulching Right (60")

Note: (60")

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 09255051

Baffle, Mulching Right (72")

Note: (72")

$

$

Not available

4

Gravely 09247651

Baffle, End Mulching (50")

Note: (50")

$

$

Not available

4

Gravely 09244151

Baffle, End Mulching (60")

Note: (60")

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 09255251

Baffle, End Mulching (72")

Note: (72")

$

$

Not available

5

Gravely 06215700

Bolt, Round Head Square Neck 5/16-18 x 314
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05946900

Bolt, Hex 5/16-18 x 1 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

7

Gravely 06530200

Nut, Locking Nylon 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 06437200

Washer, Flat Steel 11/32 x 11/16
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

9

Gravely 05948700

Bolt, Hex 3/8-16 x 1 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06435700

Washer, Flat Steel 3/8 x 7/8
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

11

Gravely 06535800

Nut, Locking Nylon 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 08899200

Blade Mulching (50")
(Superseded to 08866800)

Note: (50")

$31.99

$

In Stock, Qty 20+

0

12

Gravely 08899100

Blade Mulching (60")

Note: (60")

$

$

Not available

12

Gravely 09254700

Blade Mulching (72")
(Superseded to 09290600)

Note: (72")

$38.99

$

In Stock, only 2 left!

0

Gravely 79200300

Kit

$

$

Not available

Gravely 79200500

Kit

$

$

Not available

Gravely 79200900

Kit

$

$

Not available
