792076 - Gravely Engine RPM Kit Engine RPM Kit PN 79207600 (Liquid-Cooled Kawasaki Engines) Parts Diagram

Engine RPM Kit

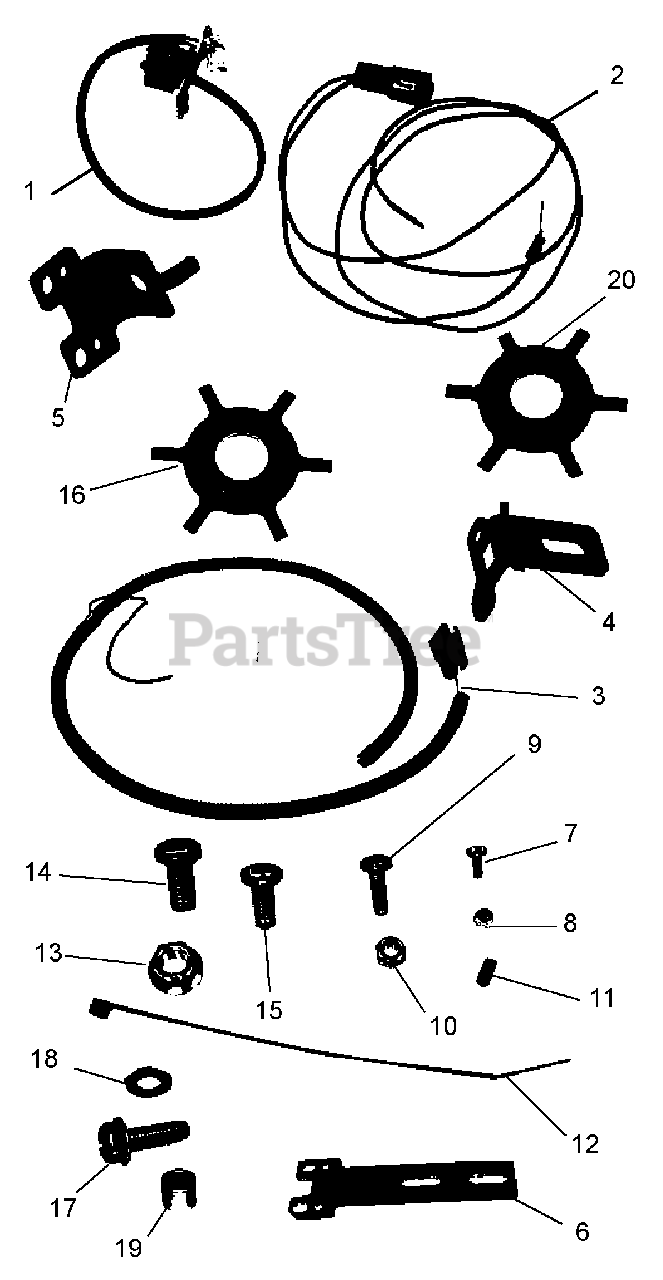

Engine RPM Kit PN 79207600 (Liquid-Cooled Kawasaki Engines) Parts Diagram

  • Title

1

Gravely 00266300

SENSOR, EYE-Q ENGINE RPM

$

$

Not available

2

Diesel RPM Sensor Harness

Note: NOT USED

$

$

Not available

3

Gravely 00278100

HARNESS,RPM SENSOR VERT&L/CAIR

$

$

Not available

4

RPM Sensor Mounting Bracket

Note: NOT USED

$

$

Not available

5

Gravely 00277100

BRACKET, RPM SENSOR MTG.L/CAIR

$

$

Not available

6

100 XDZ RPM Sensor Mounting Bracket

Note: NOT USED

$

$

Not available

7

Gravely 05900007

BLT-HEX M4X0.7X12MM YZ

$

$

Not available

8

Gravely 06500005

NUT-LK-NYL M4-0.7 YWZC

$

$

Not available

9

Gravely 05975900

BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

10

Gravely 06542600

NUT-LK-NYL M6-1 YWZC

$

$

Not available

11

Gravely 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

13

Top Locking Flange Nut, 3/8-16

Note: NOT USED

$

$

Not available

14

Hex Bolt, 3/8-16 x 3/4

Note: NOT USED

$

$

Not available

15

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

16

Gravely 00276900

SPROCKET, RPM 6T 1.65ID

$

$

Not available

17

Hex Bolt, 3/8-16 x 3/4"

Note: NOT USED

$

$

Not available

18

Washer,.344 x .688 x .065

Note: NOT USED

$

$

Not available

19

Bushing, .328 x .500 x .500

Note: NOT USED

$

$

Not available

20

6T RPM Sprocket, 1-3/4 I.D.

Note: NOT USED

$

$

Not available

Gravely 79207600

KIT, EYE-Q ENGINE RPM

$

$

Not available
