792103 - Gravely Block-N-Chute for 44", 48", 52" Decks Full Assembly Parts Diagram

Block-N-Chute for 44", 48", 52" Decks

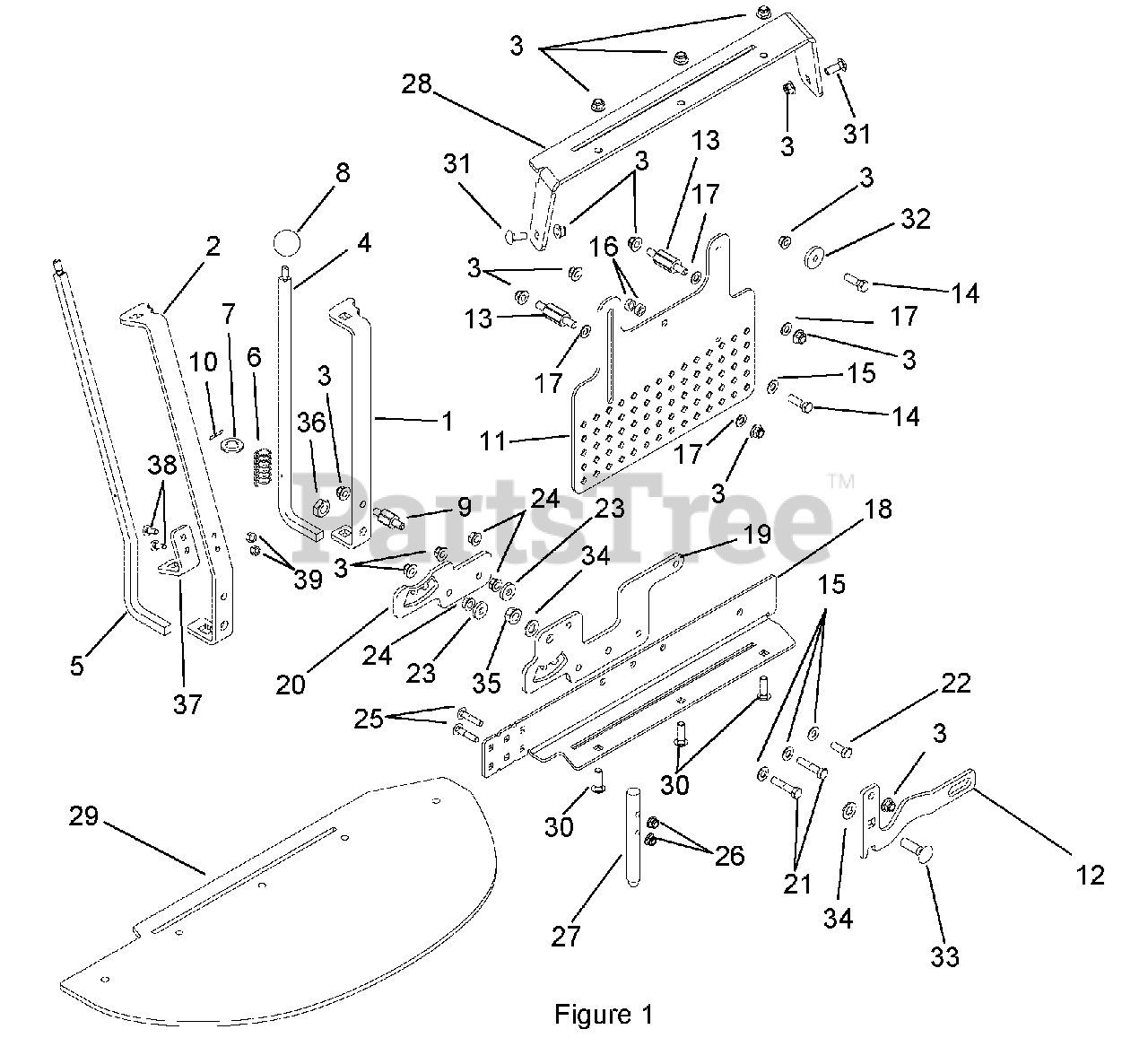

Full Assembly Parts Diagram

  • Title

1

Gravely 03784600

Plate Control Lever (79210300)

Note: (79210300)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 03784800

Plate Control Lever (79210500)

Note: (79210500)

$63.99

$

Usually ships in 4-12 days

0

3

Gravely 06545500

3/8-16 Nyloc Flange Nut
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03784300

Plate Control Rod (79210300)

Note: (79210300)

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 03784500

Plate Control Rod (79210500)

Note: (79210500)

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 08300500

Compression Spring

$15.99

$

In Stock, only 1 left!

0

7

Gravely 06444200

3/4 x 1-1/4 Flat Washer
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 07533500

Black Ball Knob

$10.99

$

In Stock, only 2 left!

0

9

Gravely 03783000

Lever Tie Lifter Pin

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 05800900

1/8 x 1.00 Roll Pin

$0.99

$

In Stock, Qty 9

0

11

Gravely 03783751

Block-off Baffle Plate (79210300)

Note: (79210300)

$77.99

$

Usually ships in 4-12 days

0

Gravely 03783951

Block-off Baffle Plate (79210500)

Note: (79210500)

$96.99

$

Usually ships in 4-12 days

0

12

Gravely 03782900

Block-off Lifter Cam Bracket

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 03783100

Plate Stabilizer Pin

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 05958000

3/8-16 x 1-1/4 Hex Bolt
(Superseded to 05901724)

$1.99

$

In Stock, only 3 left!

0

15

Gravely 06436200

3/8 x 13/16 Flat Washer
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05508900

Sleeve Bushing

$9.99

$

In Stock, only 2 left!

0

17

Gravely 06433600

3/8 x 3/4 Nylon Flat Washer

$0.99

$

In Stock, Qty 9

0

18

Gravely 03783451

Chute Mount Bracket (79210300)

Note: (79210300)

$39.99

$

Usually ships in 4-12 days

0

Gravely 03783651

Chute Mount Bracket (79210500)

Note: (79210500)

$62.99

$

Usually ships in 4-12 days

0

19

Gravely 03782700

Chute Control Master Plate

$42.99

$

Usually ships in 4-12 days

0

20

Gravely 03782800

Chute Control Backup Plate

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 05958500

3/8-16 x 1-3/4 Hex Bolt
(Superseded to 05901809)

$1.99

$

In Stock, Qty 12

0

22

Gravely 05948700

3/8-16 x 1 Hex Bolt
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06444000

13/32 x 1 Flat Washer
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06534900

3/8-16 Spinlock Flange Nut
(Superseded to 06500735)

$1.99

$

In Stock, Qty 14

0

25

Gravely 06212100

5/16-18 x 1-1/2 Round Head Square Neck Bolt
(Superseded to 06200233)

$1.99

$

In Stock, Qty 9

0

26

Gravely 06545400

5/16-18 Nyloc Flange Nut
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 03830600

Discharge Chute Pin

$32.99

$

Usually ships in 4-12 days

0

28

Gravely 03784051

Chute Support Bracket (79210300)

Note: (79210300)

$42.99

$

Usually ships in 4-12 days

0

Gravely 03784251

Chute Support Bracket (79210500)

Note: (79210500)

$31.99

$

Usually ships in 4-12 days

0

29

Gravely 03820200

Rubber Chute (79210300)

Note: (79210300)

$118.99

$

Usually ships in 4-12 days

0

Gravely 03827200

Rubber Chute (79210500)

Note: (79210500)

$125.99

$

Usually ships in 4-12 days

0

30

Gravely 06224100

3/8-16 x 1-1/4 Round Head Square Neck Bolt
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06223600

3/8-16 x 1 Round Head Square Neck Bolt
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

32

Gravely 06400006

3/8 x 1-1/2 Flat Washer
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

33

Gravely 06224800

1/2-13 x 1-3/4 Round Head Square Neck Bolt
(Superseded to 06200330)

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 06443300

1/2 x 1.00 Nylon Flat Washer

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06543600

1/2-13 Locking Top Flange Nut
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06535100

1/2-13 Thin Locking Nyloc Nut

$2.99

$

Usually ships in 4-12 days

0

37

Gravely 03783200

Rod Lever Control Support Bracket (79210500)

Note: (79210500)

$10.99

$

Usually ships in 4-12 days

0

38

Gravely 06219900

1/4-20 x 3/4 Round Head Square Neck Bolt (79210500)
(Superseded to 06200307)

Note: (79210500)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06529700

1/4-20 Locking Center Nut (79210500)
(Superseded to 06500812)

Note: (79210500)

$0.99

$

In Stock, Qty 20+
