79216 - Toro 48" Snow Blade for TimeCutter Z Mowers (SN: 230000001 - 230999999) (2003) LIFT ASSEMBLY Parts Diagram

48" Snow Blade for TimeCutter Z Mowers

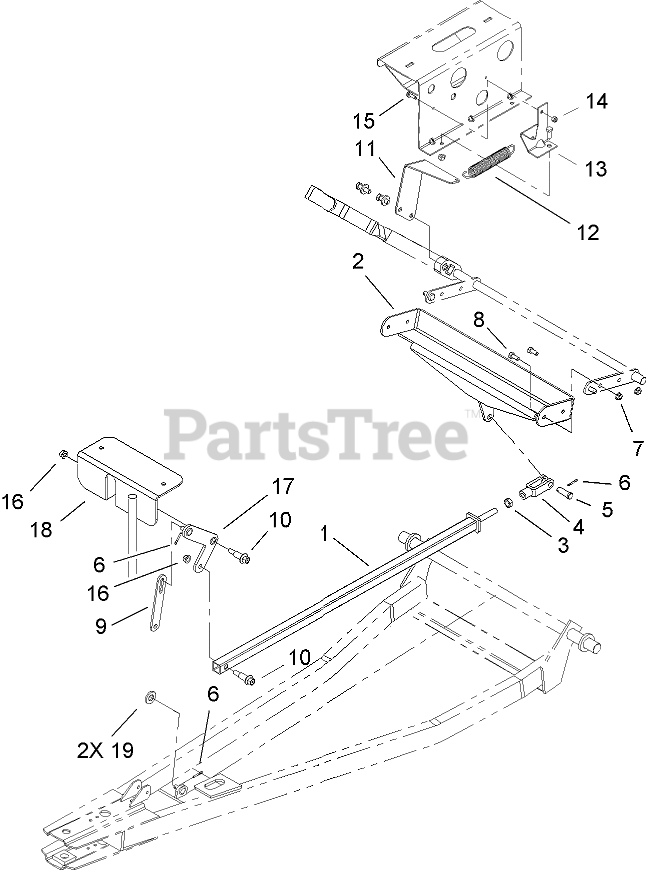

LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 107-2519-03

ROD LIFT ASM

$

$

Not available

2

Toro 106-8663-03

ARM-LIFT

$235.99

$

Usually ships in 3-6 days

0

3

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 8

0

4

Toro 100-7338

CLEVIS

$58.99

$

In Stock, Qty 5

0

5

Toro 104-3634

PIN-CLEVIS

$19.99

$

In Stock, Qty 5

0

6

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

7

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 106-8665-03

LINK-LIFT

$

$

Not available

10

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 3 left!

0

11

Toro 107-2516-03

MOUNT-SPRING, FRONT

$

$

Not available

12

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, Qty 19

0

13

Toro 107-2506-03

MOUNT-SPRING

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 4 left!

0

16

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

17

Toro 106-6968-03

PIVOT ARM ASM

$

$

Not available

18

Toro 106-6967-03

LIFT MOUNT ASM

$142.99

$

Usually ships in 3-6 days

0

19

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 20+

0
