79216 - Toro 48" Snow Blade for TimeCutter Z Mowers (SN: 270000001 - 270999999) (2007) BLADE ASSEMBLY Parts Diagram

48" Snow Blade for TimeCutter Z Mowers

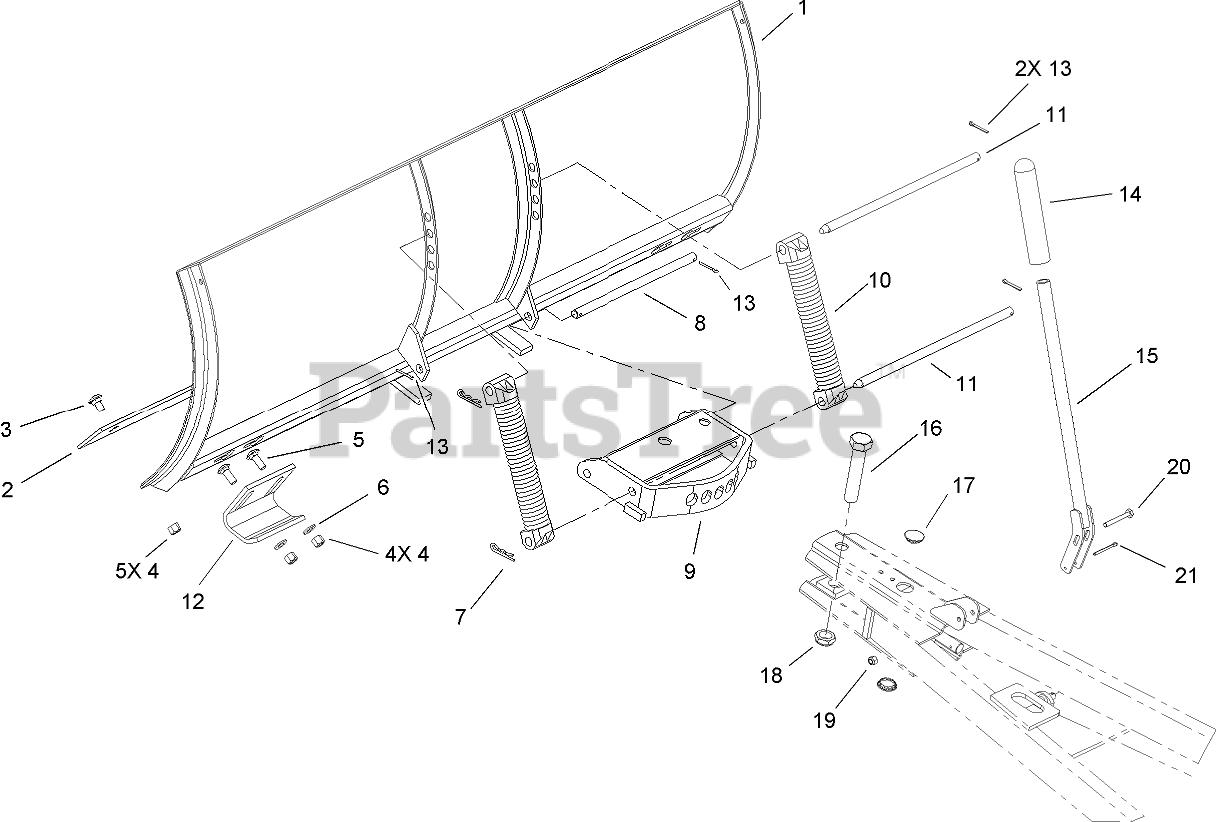

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 78-1330-03

BLADE

$

$

Not available

2

Toro 93-1612-03

PLATE-EDGE, BLADE

$45.99

$

In Stock, only 3 left!

0

3

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

8

Toro 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

9

Toro 104-8053-03

QUADRANT

$

$

Not available

10

Toro 105-1386-03

LUG / SPRING ASM

$120.99

$

Usually ships in 3-6 days

0

11

Toro 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

12

Toro 117424-03

Skid

$71.99

$

Usually ships in 3-6 days

0

13

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

14

Toro 105-1904

GRIP-HANDLE

$9.99

$

Usually ships in 3-6 days

0

15

Toro 99-7787-03

LEVER-INDEX

$

$

Not available

16

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

17

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

18

Toro 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
