79251 - Toro 48" Snow Blade (SN: 049000001 - 049999999) (1994) BLADE ASSEMBLY Parts Diagram

48" Snow Blade

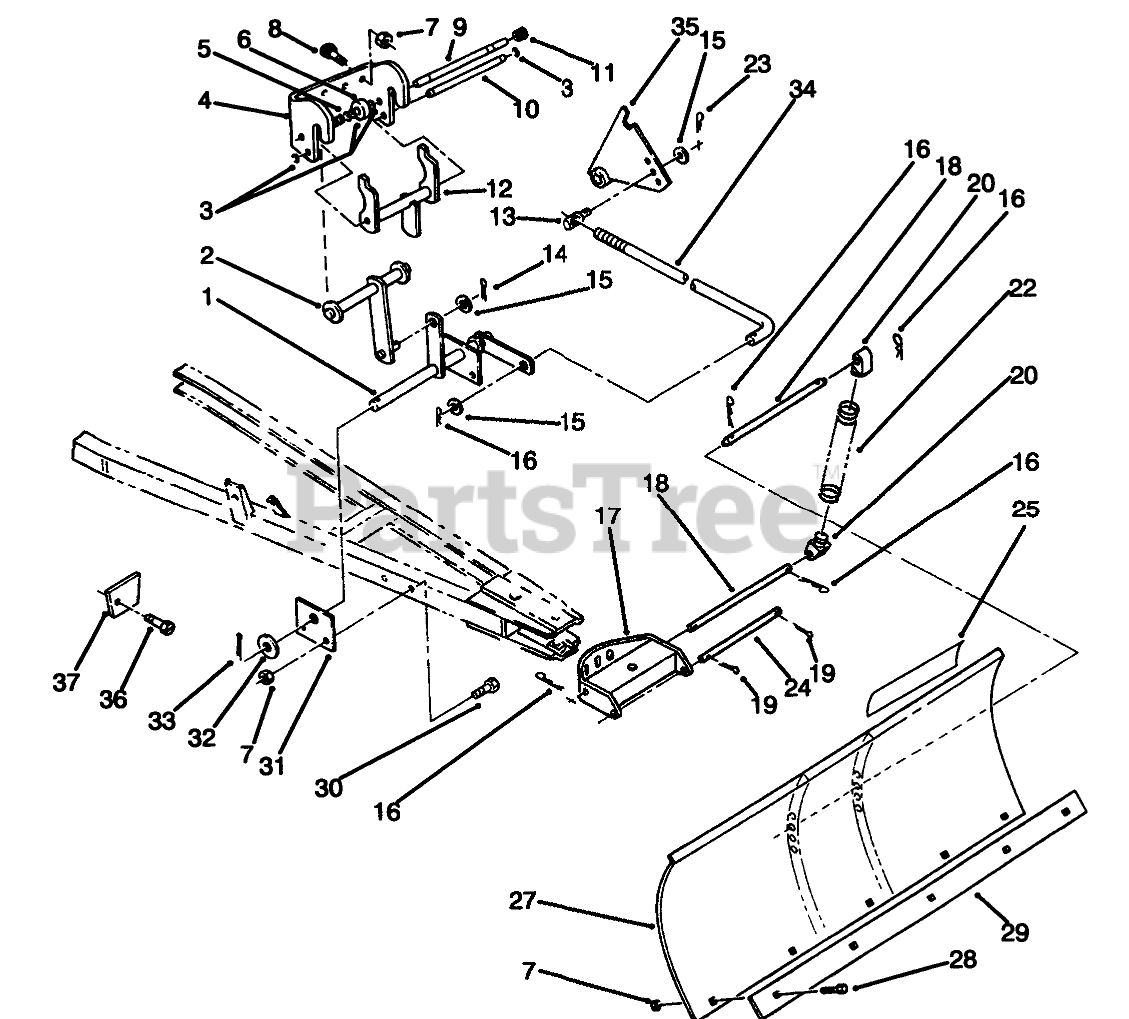

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 79-5460

Lift Arm
(Superseded to 79-5460-01)

$

$

Not available

2

Toro 79-5430

Arm
(Superseded to 79-5430-03)

$

$

Not available

3

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 7

0

4

Toro 78-1720

Housing-Front Hitch
(Superseded to 78-1720-01)

$112.99

$

Usually ships in 3-6 days

0

5

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

6

Toro 101707

LOCK

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

9

Toro 101751

ROD-LOCK

$23.99

$

Usually ships in 3-6 days

0

10

Toro 101750

ROD-LATCH PIVOT

$48.99

$

Usually ships in 3-6 days

0

11

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

12

Toro 93-1613-01

Latch-Front Hitch
(Superseded to 93-1613)

$

$

Not available

13

Toro 7736

STUD-TRUNION

$50.99

$

Usually ships in 3-6 days

0

14

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

17

Toro 78-8760

Decal
(Superseded to 78-8760-01)

$239.99

$

Usually ships in 3-6 days

0

18

Toro 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

20

Toro 88-2080

Lug
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

22

Toro 93-1611-01

Spring-Return
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

23

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 12

0

24

Toro 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

25

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$12.99

$

Usually ships in 3-6 days

0

27

Toro 78-1330

Blade
(Superseded to 78-1330-01)

$456.99

$

Usually ships in 3-6 days

0

28

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 93-1612-01

PLATE - BLADE EDGE
(Superseded to 93-1612-03)

$45.99

$

In Stock, only 3 left!

0

30

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 79-5490

Plate
(Superseded to 79-5490-01)

$15.99

$

Usually ships in 3-6 days

0

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

33

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

34

Toro 79-5530

ROD

$117.99

$

In Stock, only 1 left!

0

35

Toro 79-5510

Plate
(Superseded to 105-1384-03)

$110.99

$

Usually ships in 3-6 days

0

36

Toro 92-6720

DECAL-PTO / CHOKE
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

37

Toro 79-4770

Stop-Steering Spindle
(Superseded to 79-4770-01)

$

$

Not available
