79252 - Toro 48" Snow Blade for 260 Series Tractors (SN: 049000001 - 049999999) (1994) FRAME ASSEMBLY Parts Diagram

48" Snow Blade for 260 Series Tractors

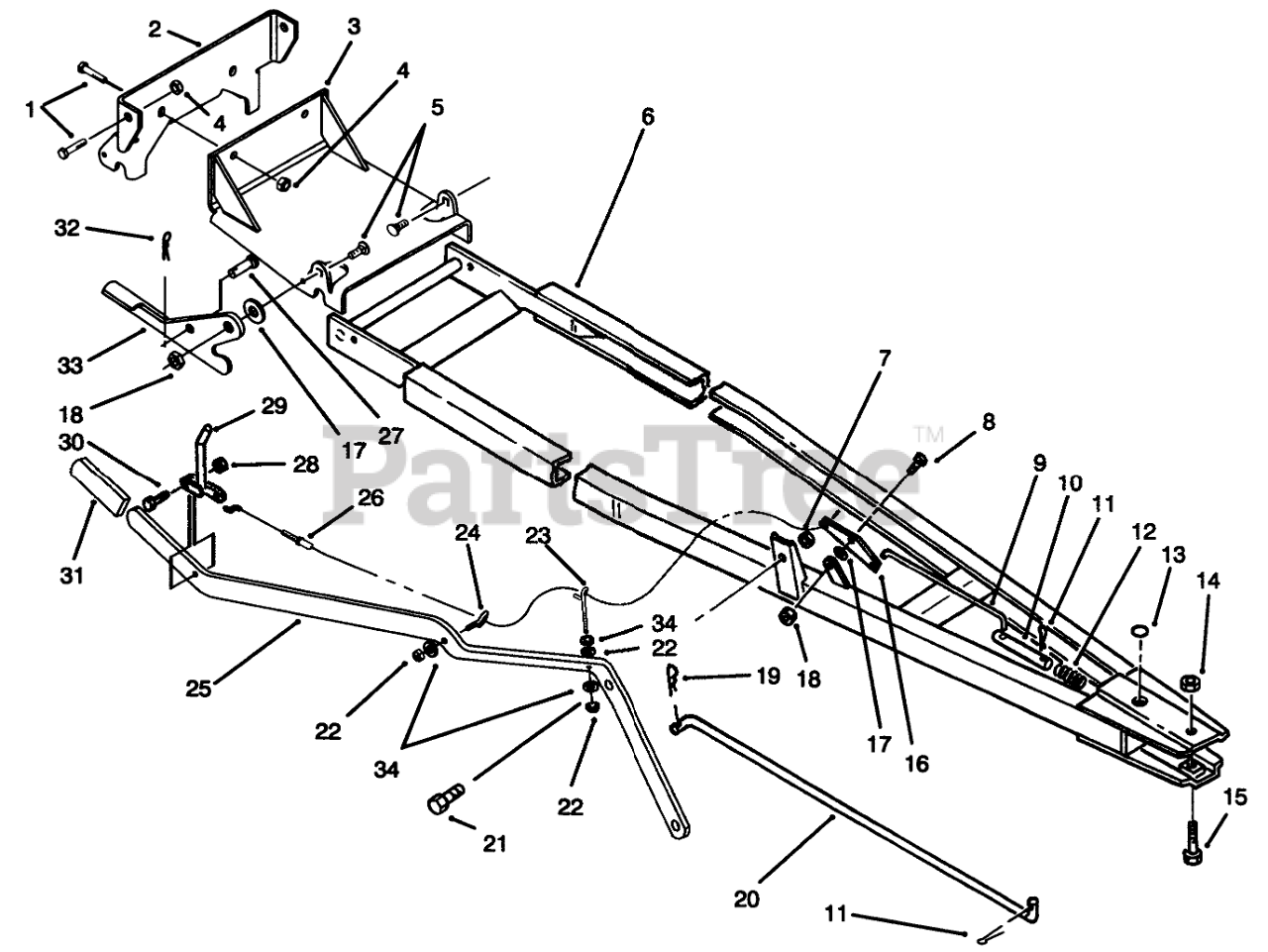

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

2

Toro 93-1389-03

BRACKET-MOUNTING

$

$

Not available

3

Toro 92-7070-03

BRKT - BLDE MTG WA BLACK

$

$

Not available

4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

6

Toro 79-5080-01

FRAME-BLADE

$

$

Not available

7

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 79-6130

ROD-LOWER INDEX

$88.99

$

Usually ships in 3-6 days

0

10

Toro 88-6520

PIN-INDEX

$100.99

$

Usually ships in 3-6 days

0

11

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

12

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

13

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

14

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

15

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

16

Toro 92-7037

PLATE - INDEX

$28.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

20

Toro 79-4790

ROD

$153.99

$

Usually ships in 3-6 days

0

21

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

23

Toro 92-7039

EYELET - CABLE

$

$

Not available

24

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

25

Toro 92-7034-01

LEVER - INDEX BLADE

$205.99

$

Usually ships in 3-6 days

0

26

Toro 92-7094

Cable-Lift
(Superseded to 93-3168)

$1.99

$

Usually ships in 3-6 days

0

27

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

28

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

29

Toro 92-7036

LEVER-INDEX

$99.99

$

Usually ships in 3-6 days

0

30

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

32

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

33

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

34

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
