79263 - Toro 42" Snow Thrower for 260 Series Tractors (SN: 099000001 - 099999999) (1999) BLOWER ASSEMBLY Parts Diagram

42" Snow Thrower for 260 Series Tractors

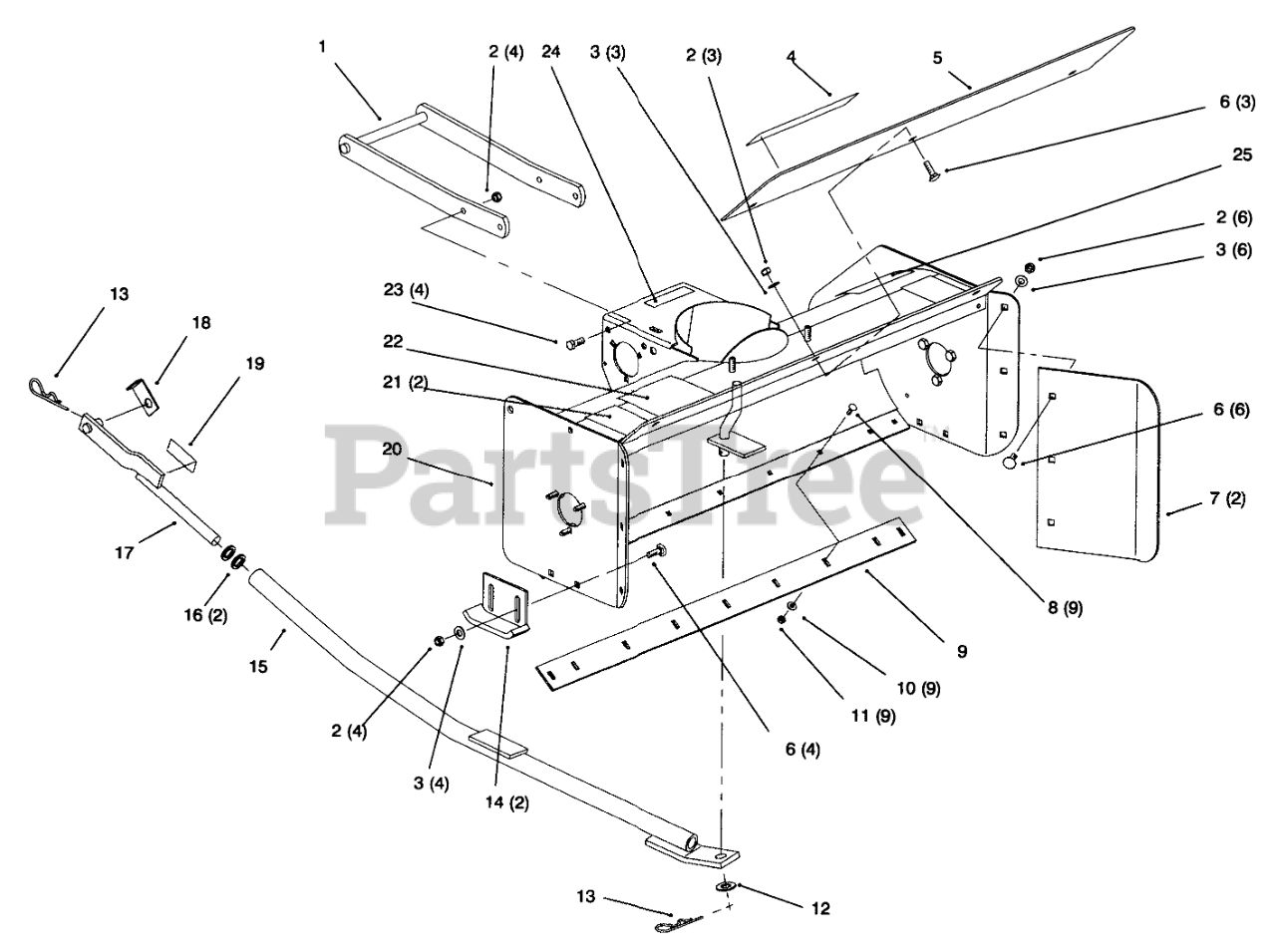

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 79-6800-01

FRAME

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$

$

Not available

5

Toro 93-1616-01

PLATE-EXTENSION

$

$

Not available

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 93-1617-01

PLATE-EXTENSION, RH

$

$

Not available

8

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

9

Toro 79-6170-01

SCRAPER-REVERSIBLE
(Superseded to 79-6170-03)

$108.99

$

Usually ships in 3-6 days

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

13

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 9

0

14

Toro 93-1620-01

SKID

$49.99

$

In Stock, only 1 left!

0

15

Toro 79-3251-03

LIFT ROD

$

$

Not available

16

Toro 9202324

Washer

$1.99

$

In Stock, only 3 left!

0

17

Toro 79-3430-03

WLDMT-LIFT ROD BLK
(Superseded to 92-9778)

$138.99

$

Usually ships in 3-6 days

0

17

Toro 92-9778-03

CROSS REFERENCE TO 92-9778
(Superseded to 92-9778)

$138.99

$

Usually ships in 3-6 days

0

18

Toro 79-7090

RETAINER CLIP

$

$

Not available

19

Toro 85-7480

DECAL - WARNING

$

$

Not available

20

Toro 92-9777-01

OBS WRAPPER WA W/DECALS RED
(Superseded to 92-9777)

$

$

Not available

21

Toro 63-2380

DECAL-DANGER

$

$

Not available

22

Toro 92-8652

DECAL-WARNING

$

$

Not available

23

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 86-5100

DECAL - WARNING

$

$

Not available
